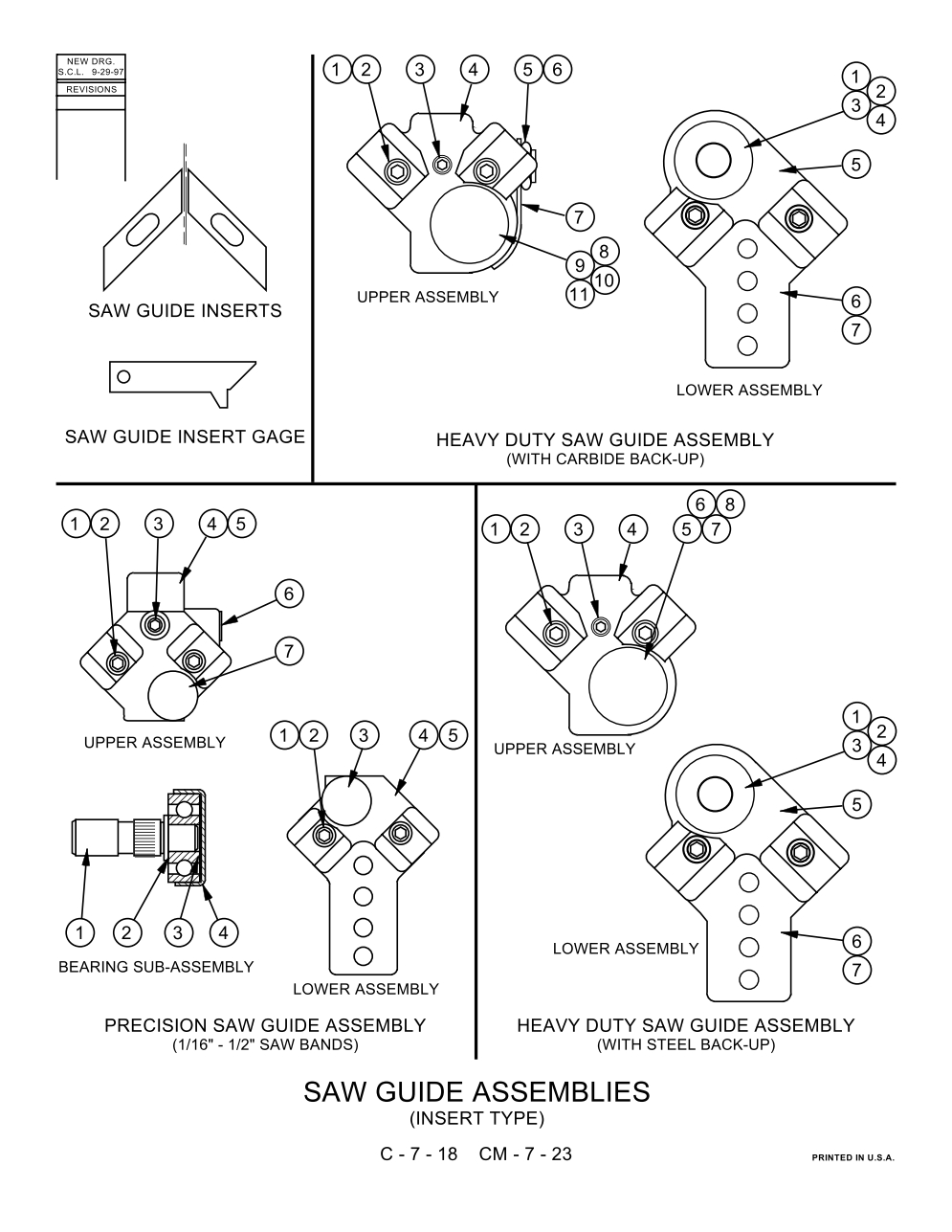

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-7-18
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: | Part Number: | Description: HEAVY DUTY SAW GUIDE ASSEMBLY (CARBIDE BACK-UP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-199182 | Description: Upper Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $813.26 |
| Index No Ref.: Ref. | Part Number: 090-178617 | Description: Upper Saw Guide Assembly (5/8" - 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 093-030112 | Description: Upper Saw Guide Assembly (1") | Units Per Assembly: | Availability: In Stock | Price: $467.67 |
| Index No Ref.: Ref.* | Part Number: 091-201194 | Description: Upper Saw Guide Assembly (1" W/Coolant Line) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (1/16" - 1/2") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (5/8" - 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 (1"; Coolant Line) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/16-24NF x 1/2 (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-335092 | Description: Coolant Nozzle (Coolant Line) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-380767 | Description: Upper Saw Guide Block (1/16" - 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252529 | Description: Upper Saw Guide Block (5/8", 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252537 | Description: Upper Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-336314 | Description: Upper Saw Guide Block (W/Coolant Line) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-354415 | Description: Locknut (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-332023 | Description: Pipe Plug (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-081166* | Description: 90 Degree Barbed Insert (Coolant Line) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-183377 | Description: Guide Guard (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-172180 | Description: Bearing Cap Ass'y. (Includes Carbide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 10 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 11 | Part Number: 092-003060 | Description: Spacer (Between Bearings) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.00 |
| Index No Ref.: | Part Number: | Description: * Models 1612-3, 2612-2H, 2613-2, 3613-3, 6013-3, 6013-H3 Only. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: If your Machine has 2 Coolant Lines to the Upper Saw Guide, Delete This Item and Replace With the Following: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-094524 | Description: Swivel Joint | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-190017 | Description: Lower Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $1,210.00 |
| Index No Ref.: Ref. | Part Number: 090-181686 | Description: Lower Saw Guide Assembly (5/8" - 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-177320 | Description: Lower Saw Guide Assembly (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-172180 | Description: Bearing Cap Ass'y. (Includes Carbide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 3 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 092-003060 | Description: Spacer (Between Bearings) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.00 |
| Index No Ref.: 5 | Part Number: 090-377383 | Description: Lower Saw Guide Block (1/16" - 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252586 | Description: Lower Saw Guide Block (5/8", 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252578 | Description: Lower Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (1/16" - 1/2") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (5/8" - 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 (1"; Coolant Line) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT SELECTION | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: STEEL | Description: SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044991 | Description: 1/16" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044983 | Description: 3/32" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044975 | Description: 1/8" | Units Per Assembly: | Availability: In Stock | Price: $66.37 |
| Index No Ref.: | Part Number: 090-044967 | Description: 3/16" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-044959 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-039603 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039595 | Description: 1/2" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039587 | Description: 5/8" | Units Per Assembly: | Availability: In Stock | Price: $20.14 |
| Index No Ref.: | Part Number: 090-039579 | Description: 3/4" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: 090-039561 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: CARBIDE | Description: SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-417593 | Description: 1/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-161688 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $188.60 |
| Index No Ref.: | Part Number: 090-161704 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $186.26 |
| Index No Ref.: | Part Number: 090-132911 | Description: 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-058941 | Description: 5/8" | Units Per Assembly: | Availability: In Stock | Price: $269.22 |
| Index No Ref.: | Part Number: 090-132929 | Description: 3/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-089822 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $224.32 |
| Index No Ref.: | Part Number: | Description: HEAVY DUTY SAW GUIDE ASSEMBLY (STEEL BACK-UP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-201434 | Description: Upper Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $691.35 |
| Index No Ref.: Ref. | Part Number: 090-115288 | Description: Upper Saw Guide Assembly (5/8" - 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-115304 | Description: Upper Saw Guide Assembly (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 (1/16" - 1/2", 1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (5/8" - 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/16-24NF x 1/2 (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-380767 | Description: Upper Saw Guide Block (1/16" - 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252529 | Description: Upper Saw Guide Block (5/8", 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252537 | Description: Upper Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-203695 | Description: Pipe Plug (5/8", 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 7 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 8 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 9 | Part Number: 092-003060 | Description: Spacer (Between Bearings) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.00 |
| Index No Ref.: Ref. | Part Number: 091-201426 | Description: Lower Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $728.88 |
| Index No Ref.: Ref. | Part Number: 090-115437 | Description: Lower Saw Guide Assembly (5/8" - 3/4") | Units Per Assembly: | Availability: In Stock | Price: $467.59 |
| Index No Ref.: Ref. | Part Number: 090-115429 | Description: Lower Saw Guide Assembly (1") | Units Per Assembly: | Availability: In Stock | Price: $526.03 |
| Index No Ref.: 1 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 2 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 3 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 092-003060 | Description: Spacer (Between Bearings) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.00 |
| Index No Ref.: 5 | Part Number: 090-377383 | Description: Lower Saw Guide Block (1/16" - 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252586 | Description: Lower Saw Guide Block (5/8", 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252578 | Description: Lower Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 (1/16" - 1/2", 1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (5/8" - 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: | Part Number: | Description: PRECISION SAW GUIDE ASSEMBLY (1/16" - 1/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-115197 | Description: Precision Upper Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/16-24NF x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-252495 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-985010 | Description: Screw, Soc. Set #8-32NC x 1/4 (Cone Pt.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-203695 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 134-080092 | Description: Bearing Sub-Assembly (See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $48.25 |
| Index No Ref.: Ref. | Part Number: 090-115072 | Description: Precision Lower Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 2 | Units Per Assembly: | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 3 | Part Number: 134-080092 | Description: Bearing Sub-Assembly (See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $48.25 |
| Index No Ref.: 4 | Part Number: 090-252479 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-985010 | Description: Screw, Soc. Set #8-32NC x 1/4 (Cone Pt.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 134-080092 | Description: Bearing Sub-Assembly | Units Per Assembly: | Availability: In Stock | Price: $48.25 |
| Index No Ref.: 1 | Part Number: 134-084185 | Description: Shaft | Units Per Assembly: 1 | Availability: In Stock | Price: $17.45 |
| Index No Ref.: 2 | Part Number: 135-090439 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $35.30 |
| Index No Ref.: 3 | Part Number: 134-083120 | Description: Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 4 | Part Number: 134-083096 | Description: Roller Seal | Units Per Assembly: 1 | Availability: In Stock | Price: $8.12 |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT SELECTION | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-083203 | Description: Insert Gage (.025) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: 134-083034 | Description: Insert Gage (.032) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-083075 | Description: Insert Gage (.035) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-085067 | Description: Box (For Inserts and Gages) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
