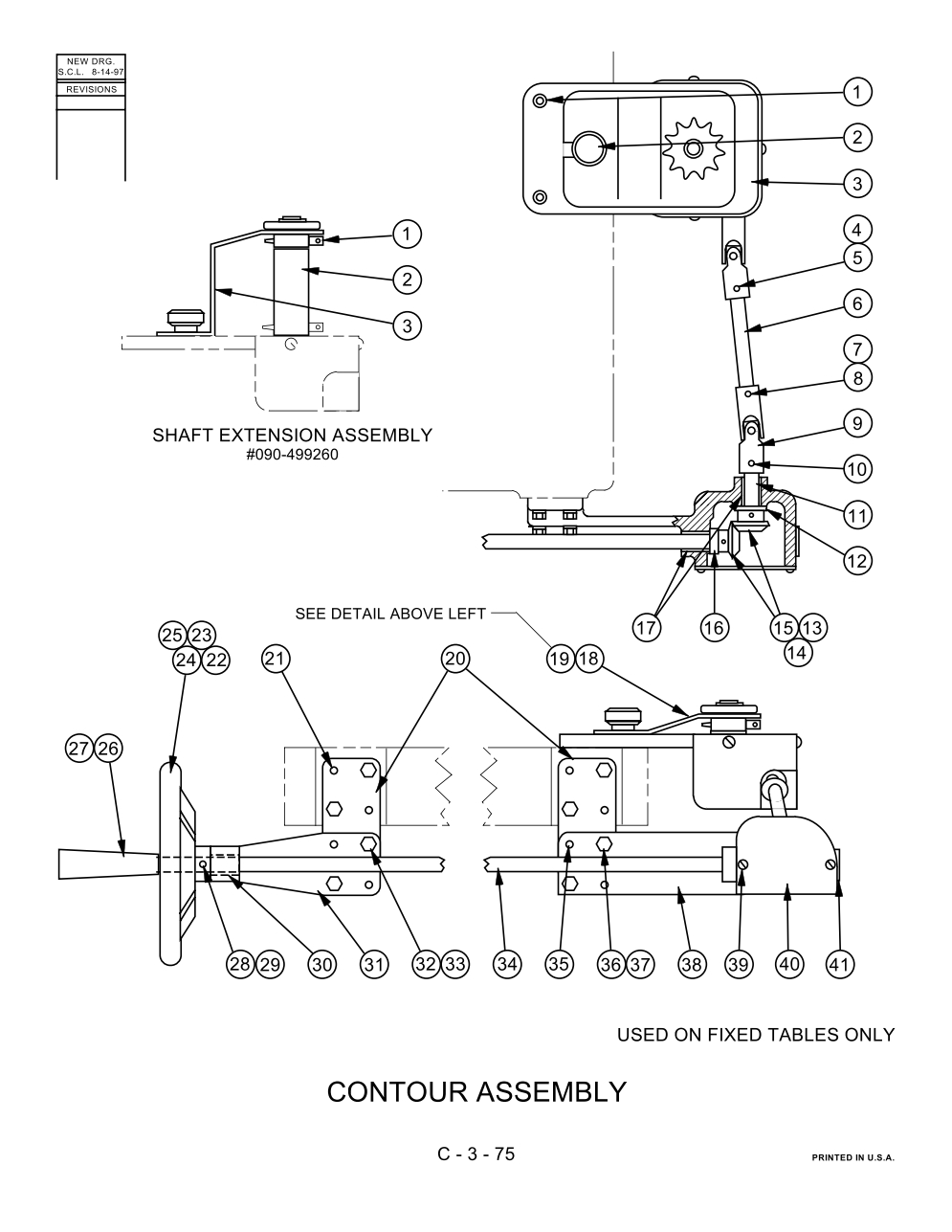

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-3-75
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 085-015170 | Description: Contour Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-107269 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-597736 | Description: Thumb Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-597724 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982819 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-479312 | Description: Contour Attachment Sub-Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-042573 | Description: Spring Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-984229 | Description: Screw, Soc. Set 1/4-20NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-087601 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-042573 | Description: Spring Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-984229 | Description: Screw, Soc. Set 1/4-20NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-396911 | Description: Universal Joint | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-042441 | Description: Spring Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-253450 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-253609 | Description: Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-253583 | Description: Gear | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-042409 | Description: Spring Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 15 | Part Number: 091-984104 | Description: Screw, Soc. Set #10-24NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-253591 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 135-006476 | Description: Oilite Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-499138 | Description: Chain Guide (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-499260 | Description: Shaft Extension Assembly (If Required) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-086231 | Description: Adaptor | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-338756 | Description: Dowel Pin | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 094-033693 | Description: Contour Handwheel Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 090-486432 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-256297 | Description: Name Plate (Servo-Contour) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-993972 | Description: Screw, Rd. Hd. Drive #2 x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-181164 | Description: Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $50.38 |
| Index No Ref.: 27 | Part Number: 091-181172 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-042615 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 29 | Part Number: 091-984229 | Description: Screw, Soc. Set 1/4-20NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 135-006476 | Description: Oilite Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-202052 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-980300 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-253443 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-980300 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-338756 | Description: Dowel Pin | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 090-202045 | Description: Gear Box | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-988386 | Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 090-016965 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 090-033259 | Description: Plug Button | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 135-050136 | Description: Chain Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 084-033109 | Description: Contour Clamp Ring Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-499260 | Description: Shaft Extension Assembly (If Required) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-085365 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-362385 | Description: Shaft Extension | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-499187 | Description: Chain Guide | Units Per Assembly: 1 | Availability: Call For Info | Price: |
