Exploded View Parts Ordering: 3613-20_399

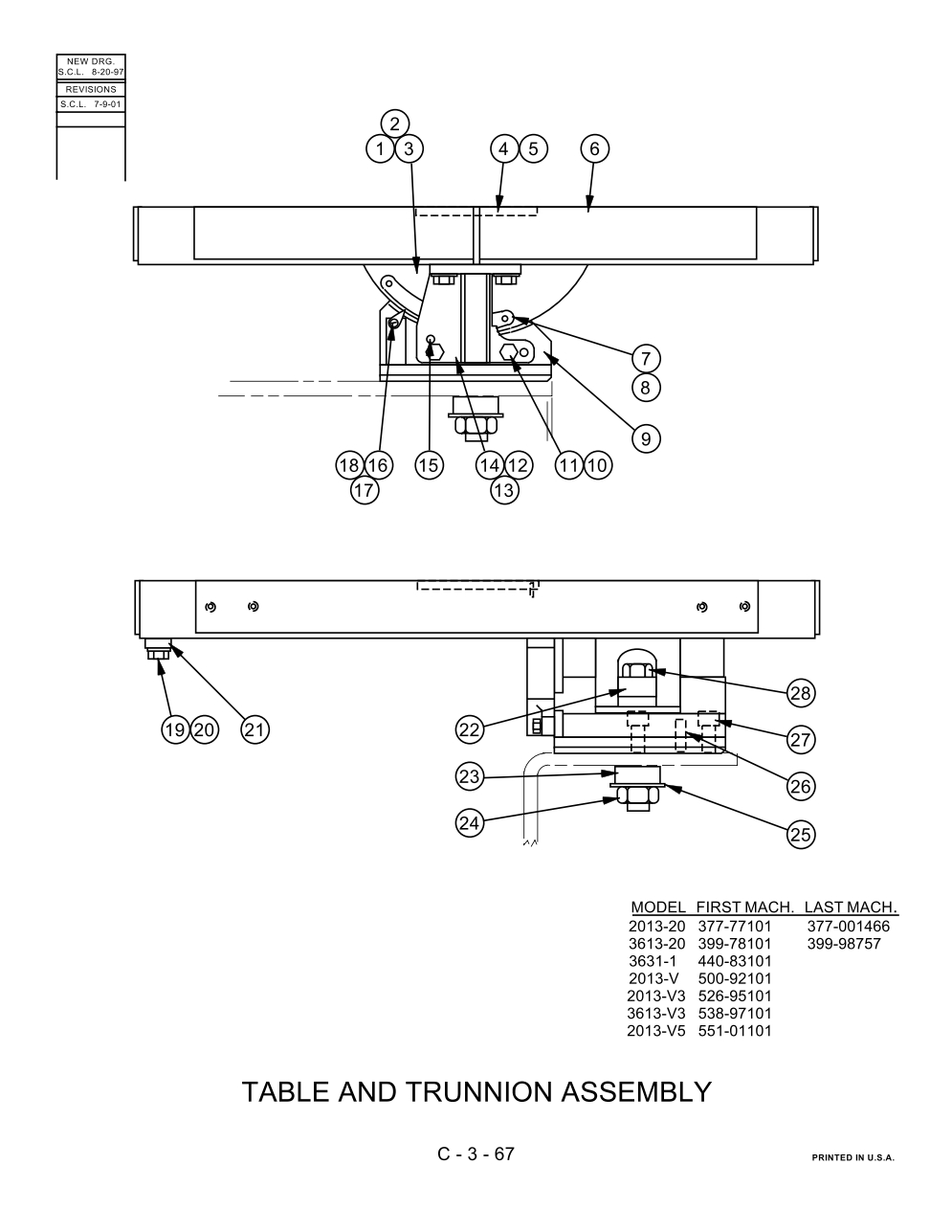

3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-3-67
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Table and Trunnion Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-406455 | Description: Trunnion | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980656 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 093-169035 | Description: Center Plate (Oval) (Standard) | Units Per Assembly: 1 | Availability: In Stock | Price: $80.00 |
| Index No Ref.: | Part Number: 090-104902 | Description: Center Plate (Round) (Standard) | Units Per Assembly: 1 | Availability: In Stock | Price: $108.83 |
| Index No Ref.: | Part Number: 093-175925 | Description: Center Plate (Oval) (Band Filing, Angle Saw Guide Set Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-201285 | Description: Center Plate (Round) (Band Filing, Angle Saw Guide Set Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-180347 | Description: Center Plate (Oval) (Band Polishing Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-105701 | Description: Center Plate (Round) (Band Polishing Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-187615 | Description: Center Plate (Oval) (Heavy Work Support, Parallel Work Clamp Options) | Units Per Assembly: 1 | Availability: In Stock | Price: $128.04 |
| Index No Ref.: | Part Number: 090-279506 | Description: Center Plate (Round) (Heavy Work Support, Parallel Work Clamp Options) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-178531 | Description: Center Plate (Oval) (90 Degree Saw Guide Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-292616 | Description: Center Plate (Round) (90 Degree Saw Guide Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-042094 | Description: Spring Pin (Round Center Plate Only) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 6 | Part Number: 095-141131 | Description: Table (26" x 26") (Oval Center Plate) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-553033 | Description: Table (26" x 26") (Round Center Plate) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-598269 | Description: Table (30" x 30") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-038613 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-994012 | Description: Screw, Rd. Hd. Drive #6 x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9* | Part Number: 095-127312 | Description: Cradle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-242447 | Description: Lower Post Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-333203 | Description: Shim (.005) (If Supplied) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-333211 | Description: Shim (.015) (If Supplied) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 135-005163 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 134-033158 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-988394 | Description: Screw, Rd. Hd. Mach. #6-32NC x 5/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-992735 | Description: Washer, Flat #6 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 090-045998 | Description: Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-394644 | Description: Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 090-105016 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-991414 | Description: Nut, Hex. 3/4-16NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-992685 | Description: Washer, Flat 3/4 S.A.E. Std | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-163510 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-982918 | Description: Screw, Soc. Hd. Cap 1/2-3NC x 3/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-981068 | Description: Screw, Hex. Hd. Cap 3/4-16NF x 5 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Some machines had cradle with dowel pin slide, order as follows: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-406497 | Description: Cradle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 114-004732 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
