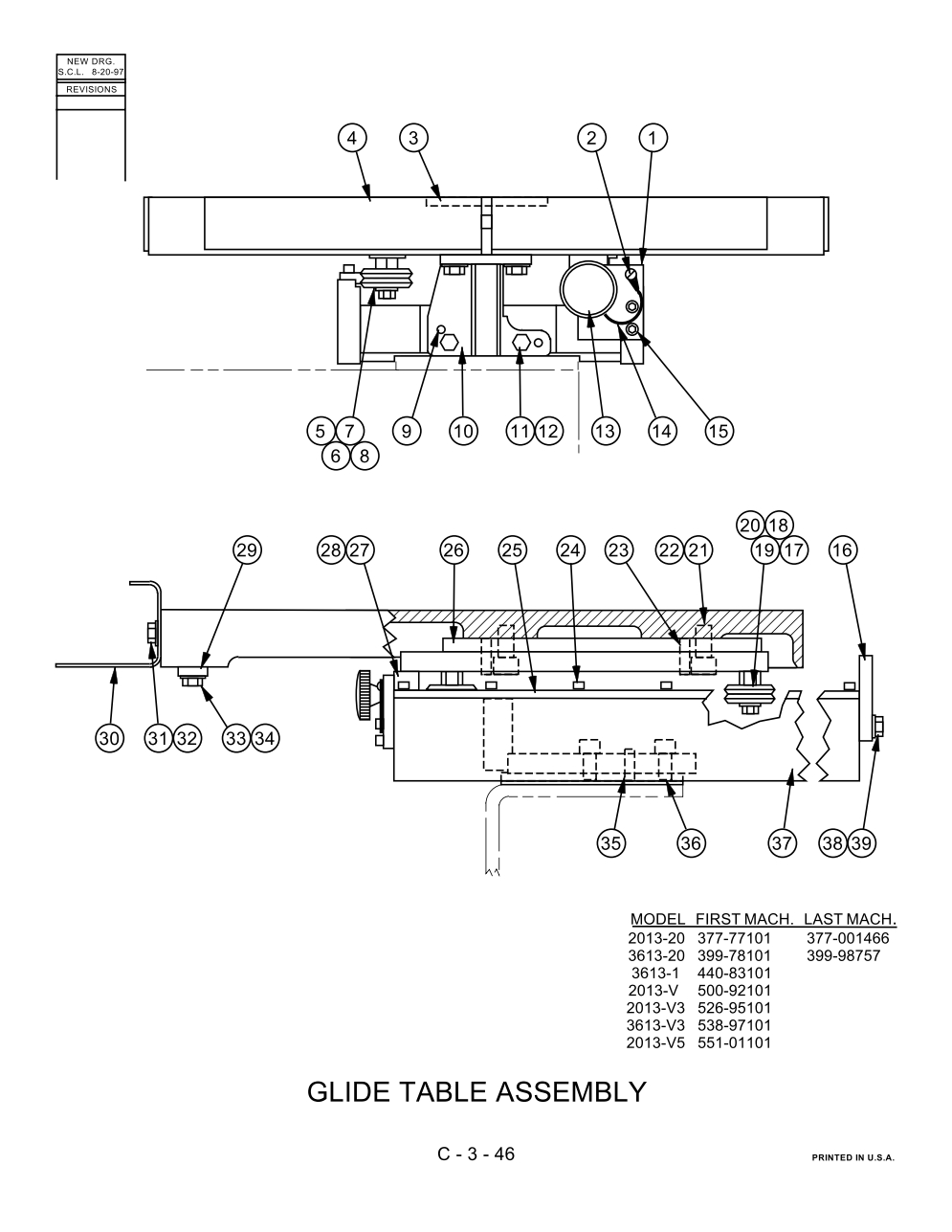

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-3-46
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 082-081043 | Description: Glide Table Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-081033 | Description: Stop Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-983460 | Description: Screw, Button Hd. Soc. #8-32NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 093-169035 | Description: Center Plate (Oval) | Units Per Assembly: 1 | Availability: In Stock | Price: $80.00 |
| Index No Ref.: 4 | Part Number: 095-141131 | Description: Table | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 092-080381 | Description: Guide Wheel | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 092-080365 | Description: Bushing Adaptor (L.H. Side) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-980318 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-005163 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 093-212710 | Description: Lower Post Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-080415 | Description: Thumbscrew Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 092-081025 | Description: Lanyard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16 | Part Number: 093-209997 | Description: End Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 092-080381 | Description: Guide Wheel | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-080357 | Description: Adjustable Bushing Adaptor (R.H. Side) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980318 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-982959 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-984419 | Description: Screw, Soc. Set 5/16-18NC x 1-1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 18 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 092-080373 | Description: Track | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 094-180510 | Description: Roller Support Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 092-091065 | Description: Stop Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-998112 | Description: Screw, Button Hd. Soc. 1/4-20NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 090-045998 | Description: Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 094-184199 | Description: Glide Table Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 33 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 114-004732 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-982934 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 095-176723 | Description: Table Support Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
