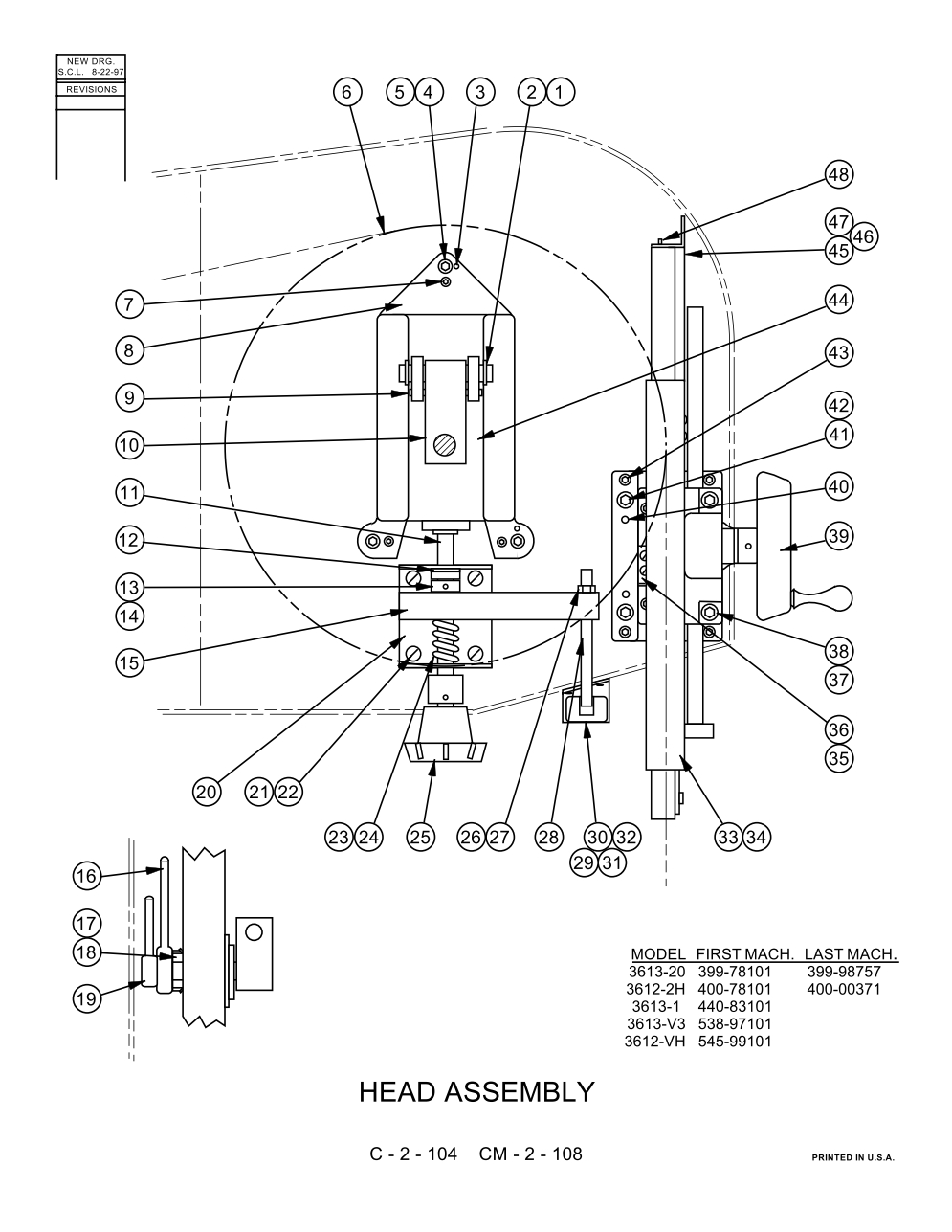

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-2-104
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-003711 | Description: Head Assembly (3613-20, 3613-1, 3613-V3) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 095-078739 | Description: Head Assembly (3612-2H, 3612-VH) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-206276 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 135-096139 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 090-042631 | Description: Spring Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 091-982637 | Description: Screw, Soc. Hd. Cap 5/16-18NC x 1-3/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 135-051274 | Description: Bandwheel Assembly (Crowned) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-068137 | Description: Bandwheel Assembly (Flanged) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-986133 | Description: Screw, Soc. Set 5/16-18NC x 1 (Half Dog Point) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 095-046215 | Description: Head Casting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9** | Part Number: 091-782284 | Description: Screw, Soc. Set 1/4-20NC x 5/8 (Self-Locking, Half Dog Point) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 093-023463 | Description: Wheel Hinge Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-181198 | Description: Tension Shaft Assembly | Units Per Assembly: 1 | Availability: In Stock | Price: $148.93 |
| Index No Ref.: | Part Number: 090-042615 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 092-035484 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-177113 | Description: Screw | Units Per Assembly: 1 | Availability: In Stock | Price: $114.66 |
| Index No Ref.: | Part Number: 134-054105 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 135-028108 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-042599 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 15 | Part Number: 091-440610 | Description: Angle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-192524 | Description: Lock Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 105-015069 | Description: Bearing Locknut | Units Per Assembly: 1 | Availability: In Stock | Price: $5.17 |
| Index No Ref.: 18 | Part Number: 105-015077 | Description: Bearing Lockwasher | Units Per Assembly: 1 | Availability: In Stock | Price: $1.67 |
| Index No Ref.: 19 | Part Number: 093-192516 | Description: Tilting Screw Handle (W/Stud) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 093-059442 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-990226 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 135-087617 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 090-094004 | Description: Knob Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-239161 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-047929 | Description: Steel Ball | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-137661 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-991232 | Description: Nut, Hex. Jam 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-630803 | Description: Retaining Compound (Loctite #271) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-422501 | Description: Band Tension Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-069195 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-988519 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-993188 | Description: Washer, Lock #8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 090-070384 | Description: Escutcheon (Band Tension) (Inch/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-314237 | Description: Escutcheon (Band Tension) (Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33* | Part Number: 094-065117 | Description: Saw Band Guard Assembly (Post) (Standard) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-986984 | Description: Screw, Fill. Hd. Mach. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-398115 | Description: Stop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-988667 | Description: Screw, Rd. Hd. Mach. #10-24NC x 5/16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-982876 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-993253 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39* | Part Number: 090-390550 | Description: Post Elevating Assembly (Standard) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 090-089756 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-982819 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-993253 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-984591 | Description: Screw, Soc. Set 3/8-24NF x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 44** | Part Number: 094-153699 | Description: Slide Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 093-051357 | Description: Guard Bracket Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-988519 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-992578 | Description: Washer, Lock #8 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 48 | Part Number: 091-053041 | Description: Spring Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-483685 | Description: Escutcheon (Post Elevating) (International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Also See Extra Work Height Assembly If Applicable. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: Item #9 was #091-333104 Shim (.035), #091-333112 Shim (.0149), #091-333120 Shim (.005), #091-333188 Shim (.003) and Item #44 was #094-018157 Before Serial #399-92710 on 3613-20, #440-92496 on 3613-1, #400-92315 on 3612-2H. | Units Per Assembly: | Availability: Call For Info | Price: |
