Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-10-29
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

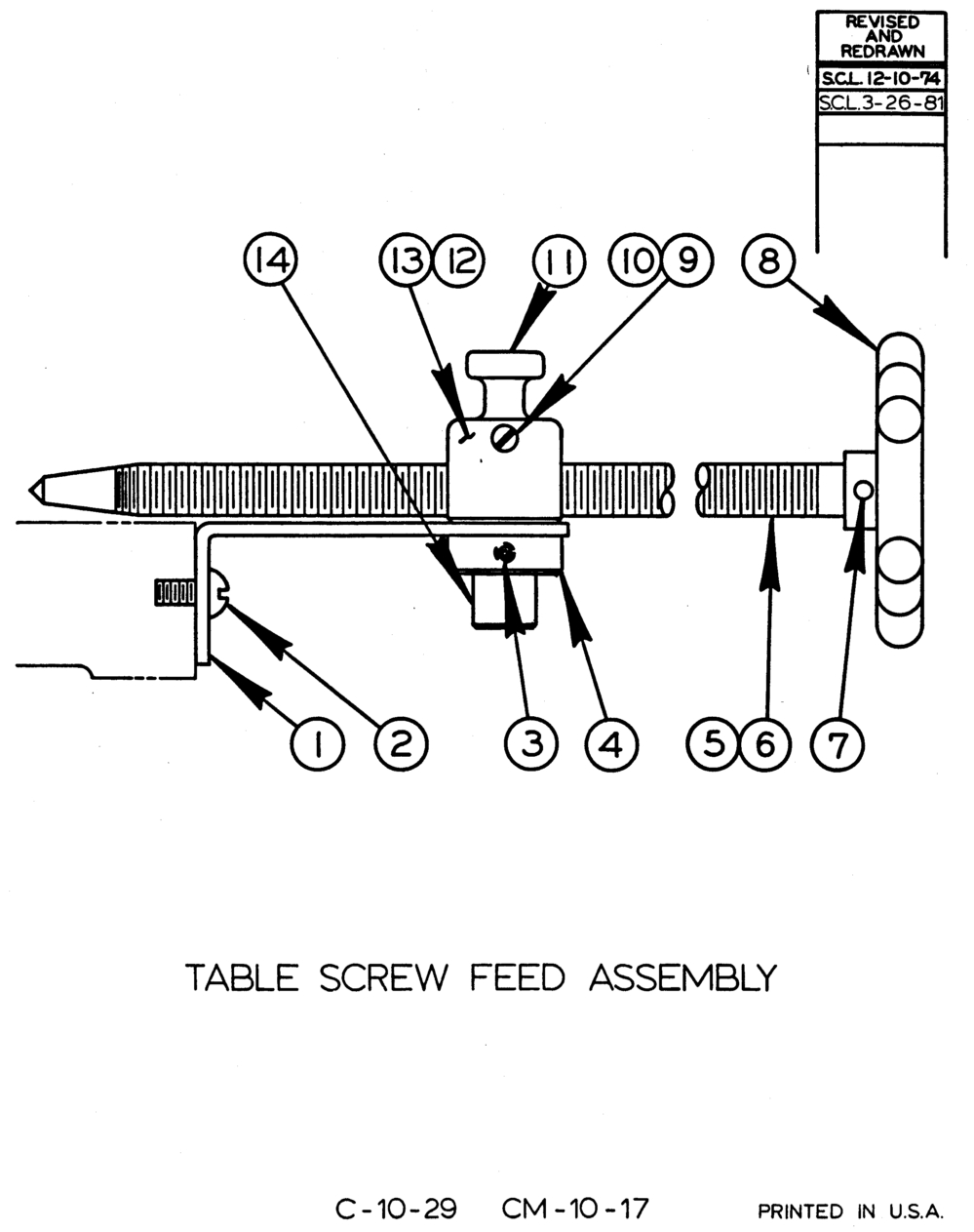

| Index No Ref.: Ref. | Part Number: 135-062123 | Description: Table Screw Feed Assembly (1612, 1612-0, 1612-1, 2013, 2013-0, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, 2612-1, 2614-1, 3612, 3612-1, 3613-0, 3613-10, 3613-1, 3613-2, 3613-20, E3613-20, E2013-U) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-454679 | Description: Table Screw Feed Assembly (1613-2, 3613-2, 3613-2, 6013-2) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: *1 | Part Number: 135-062115 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *2 | Part Number: 091-988956 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: *3 | Part Number: 091-984104 | Description: Screw, Soc. Set #10-24NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *4 | Part Number: 111-284188 | Description: Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 111-030078 | Description: Screw Feed Handle and Screw Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 111-034013 | Description: Screw Feed Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-042557 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 134-031061 | Description: Screw Feed Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-052249 | Description: Screw Feed Swivel Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-988386 | Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 105-034029 | Description: Screw Feed Key | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 105-035026 | Description: Steel Ball | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 105-035018 | Description: Detent Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 105-034011 | Description: Screw Feed Swivel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Starred Items Used On Assembly 135-062123 Only. | Units Per Assembly: | Availability: Call For Info | Price: |
