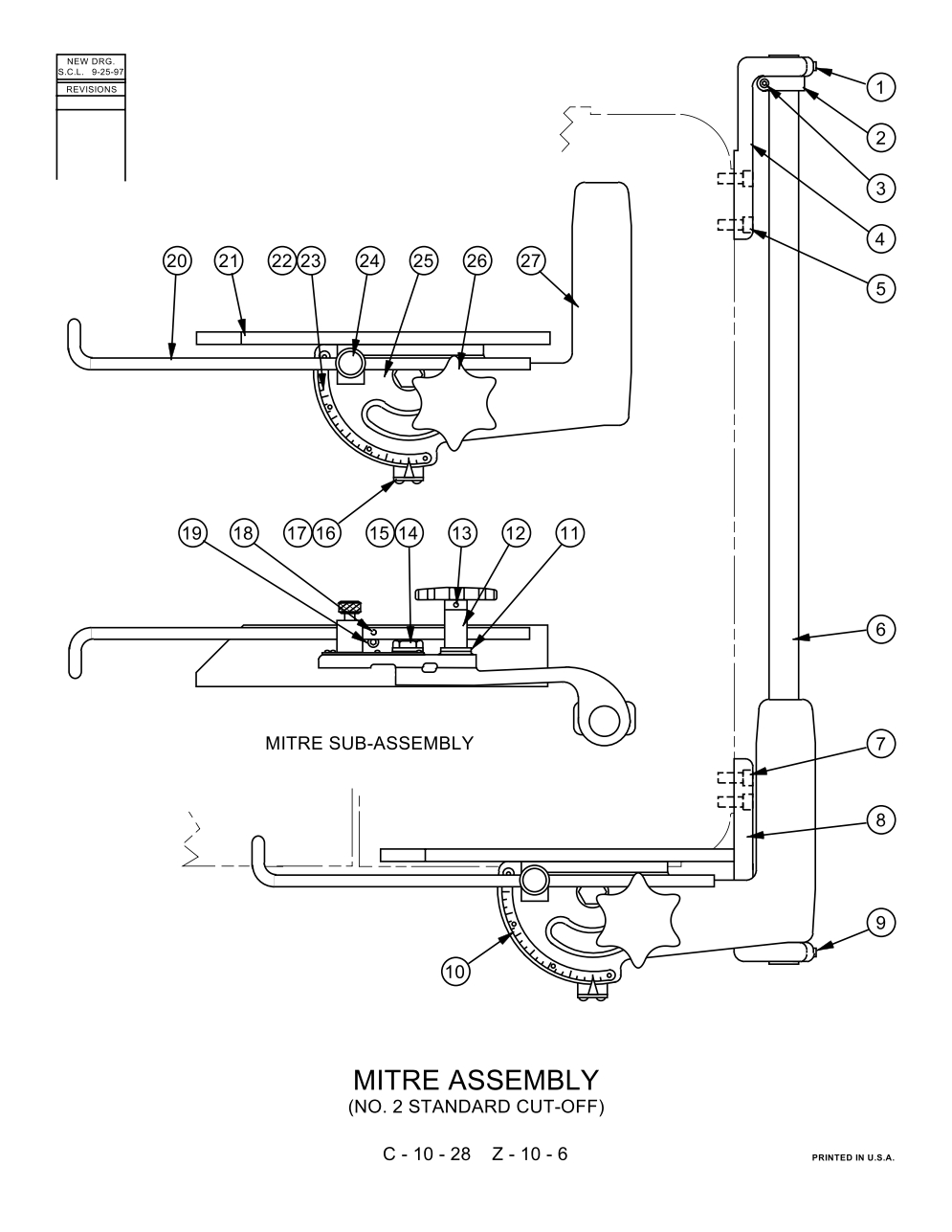

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-10-28
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 090-504192 | Description: Mitre Assembly (No. 2 Standard Cut-Off) (20" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-552904 | Description: Mitre Assembly (No. 2 Standard Cut-Off) (24" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-553050 | Description: Mitre Assembly (No. 2 Standard Cut-Off) (26" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-505118 | Description: Mitre Assembly (No. 2 Standard Cut-Off) (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-984237 | Description: Screw, Soc. Set 1/4-20NC x 5/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 111-281093 | Description: Stop Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982207 | Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-036823 | Description: Rear Slide Rod Bracket (20" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-295833 | Description: Rear Slide Rod Bracket (24", 26", 30" Tables) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-982769 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1/2 (20", 30" Table) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 (24", 26" Table) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-054147 | Description: Spacer Washer (26" Table Only) | Units Per Assembly: 2 | Availability: In Stock | Price: $5.47 |
| Index No Ref.: 6 | Part Number: 103-204061 | Description: Slide Rod (20" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 104-204011 | Description: Slide Rod (24" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-019356 | Description: Slide Rod (26" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-019315 | Description: Slide Rod (30" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-982769 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1/2 (20", 30" Tables) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 (24", 26" Tables) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-054147 | Description: Spacer Washer (26" Table Only) | Units Per Assembly: 2 | Availability: In Stock | Price: $5.47 |
| Index No Ref.: 8 | Part Number: 090-036815 | Description: Front Slide Rod Bracket (20" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-295841 | Description: Front Slide Rod Bracket (24", 26", 30" Tables) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-984237 | Description: Screw, Soc. Set 1/4-20NC x 5/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-507104 | Description: Mitre Sub-Assembly (20", 24" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-553041 | Description: Mitre Sub-Assembly (26" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-507120 | Description: Mitre Sub-Assembly (30" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 134-204106 | Description: Locking Stud Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-036773 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-042292 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 134-204072 | Description: Mitre Head Pivot | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 134-204098 | Description: Pivot Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-036765 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-990085 | Description: Screw, Truss Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-042540 | Description: Roll Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 20 | Part Number: 104-203021 | Description: Gauge Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 104-203013 | Description: Mitre Bar (20", 24" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-029447 | Description: Mitre Bar (26" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-203014 | Description: Mitre Bar (30" Table) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-036724 | Description: Degree Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-993998 | Description: Screw, Rd. Hd. Drive #4 x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 134-174010 | Description: Thumb Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-209412 | Description: Mitre Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-051319 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 090-405986 | Description: Slide Arm | Units Per Assembly: 1 | Availability: Call For Info | Price: |
