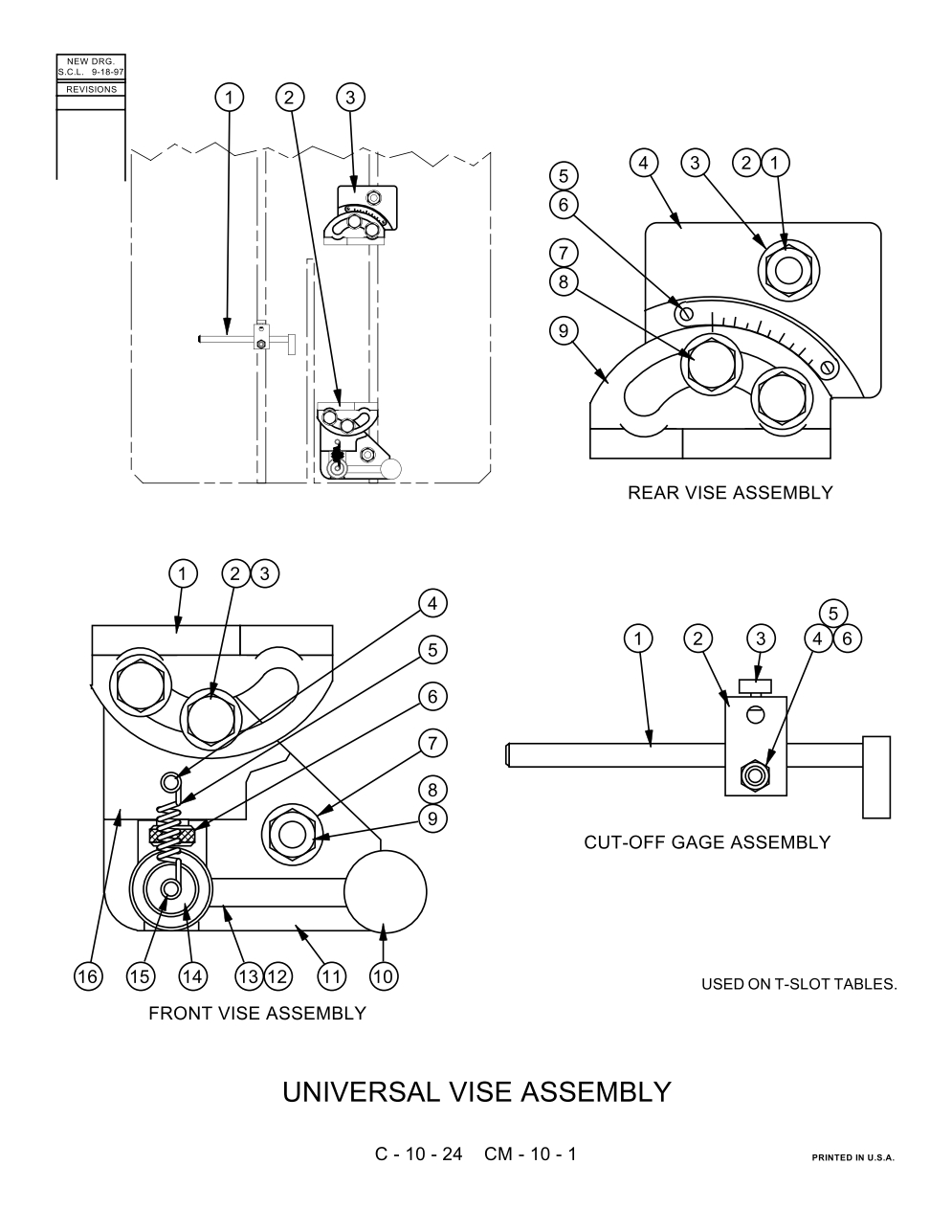

Exploded View Parts Ordering: 3613-20_399
3613-20 399 Online Parts Manual
Serial No: 399-78101 End Date 399-98757
Page Code: C-10-24
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 080-403637 | Description: Universal Vise Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-204538 | Description: Cutoff Gage Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-403643 | Description: Front Vise Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-403650 | Description: Rear Vise Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-025818 | Description: Socket Wrench (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-403650 | Description: Rear Vise Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-093675 | Description: T-Bolt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-033671 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 090-205584 | Description: Jaw Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-025768 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-988386 | Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-980664 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 090-205592 | Description: Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-204538 | Description: Cutoff Gage Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-204544 | Description: Gauge Bar Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-023367 | Description: Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-333724 | Description: Thumb Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-025800 | Description: T-Bolt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-033671 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: Ref. | Part Number: 090-403643 | Description: Front Vise Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-205618 | Description: Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980664 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 090-023201 | Description: Spring Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-025826 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-023227 | Description: Adjusting Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 090-025842 | Description: T-Bolt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-033671 | Description: Nut, Hex. 1/2-13NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 134-135086 | Description: Knob | Units Per Assembly: 1 | Availability: In Stock | Price: $8.12 |
| Index No Ref.: 11 | Part Number: 090-205626 | Description: Jaw Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-205600 | Description: Cam Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-984229 | Description: Screw, Soc. Set 1/4-20NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-025834 | Description: Pivot Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-023201 | Description: Spring Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-205634 | Description: Jaw Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
