Exploded View Parts Ordering: 3613-1_577

3613-1 577 Online Parts Manual

Serial No: 577-04101

Download PDF Version

Return to manuals

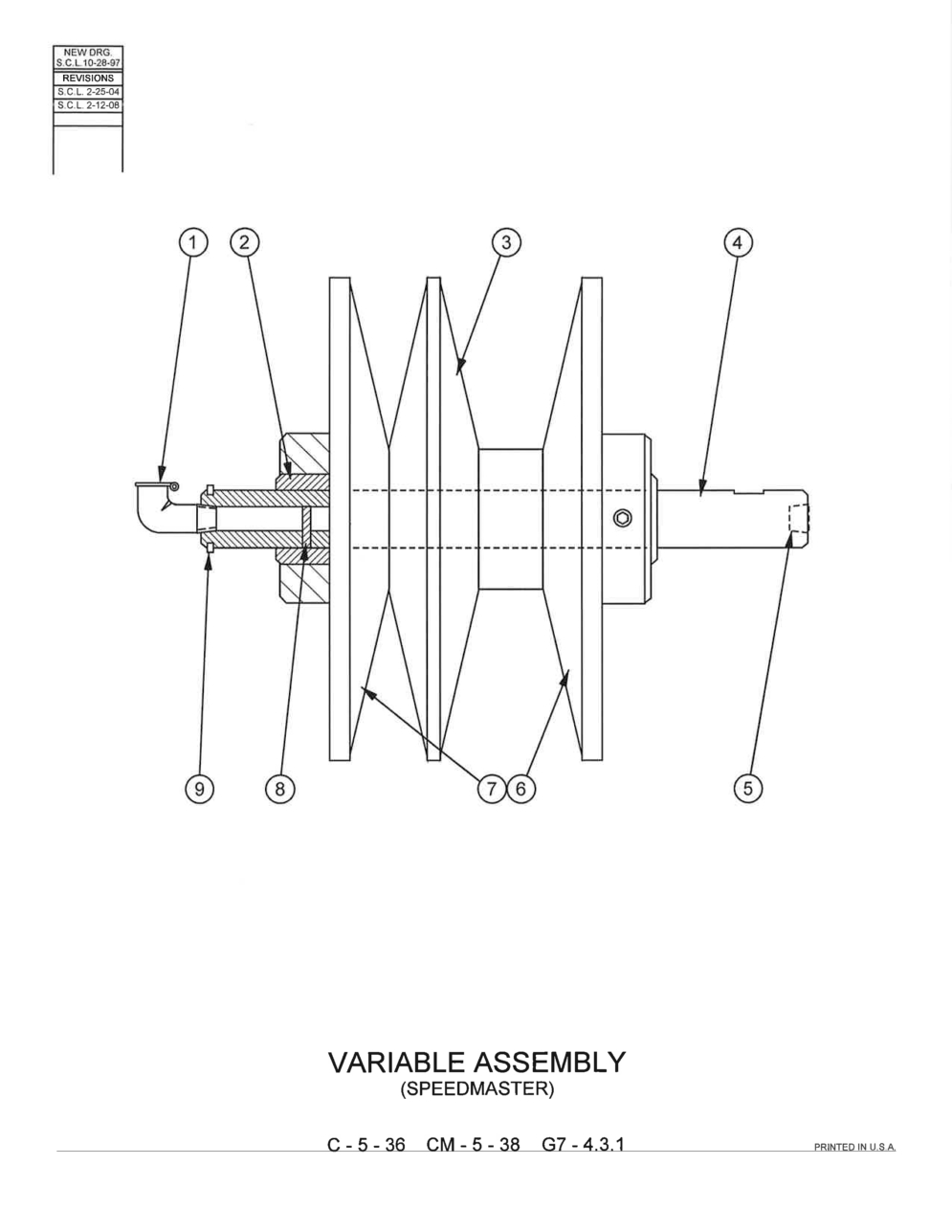

Page Code: C-5-36

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref Part Number: 43146 Description: Variable Assembly (6P Speedmaster) (16-M, 1612-UM,Bandfiler, 1612-U,30-M, 3012-U, CM-16) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 45423 Description: Variable Assembly (6P-A Speedmaster) (1612, 1611-H, 1612-0, 1612-1, 1612-U,1612-H, 3612, 3612-H, 3612-U, 3613-0, 3613-1, 2013-U, E2013-U, 2013-V) Units Per Assembly: Availability: In Stock Price: $2,800.00
Index No Ref.: 1 Part Number: 10861 Description: Oiler (If Supplied) Units Per Assembly: 1 Availability: In Stock Price: $75.15
Index No Ref.: 2 Part Number: 10857 Description: Sleeve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 24882 Description: Floating Sheave Units Per Assembly: 1 Availability: In Stock Price: $692.41
Index No Ref.: 4 Part Number: 22507 Description: Shaft (6P Speedmaster) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 28813 Description: Shaft (6P-A Speedmaster) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 10859 Description: Plug (Either End of Shaft) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 24881 Description: End Sheave Units Per Assembly: 2 Availability: In Stock Price: $495.57
Index No Ref.: 7 Part Number: 198436 Description: Screw, Soc. Set 5/16-18NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 10496 Description: Oil Wick Units Per Assembly: 3 Availability: In Stock Price: $8.85
Index No Ref.: 9 Part Number: 1139 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $9.91
