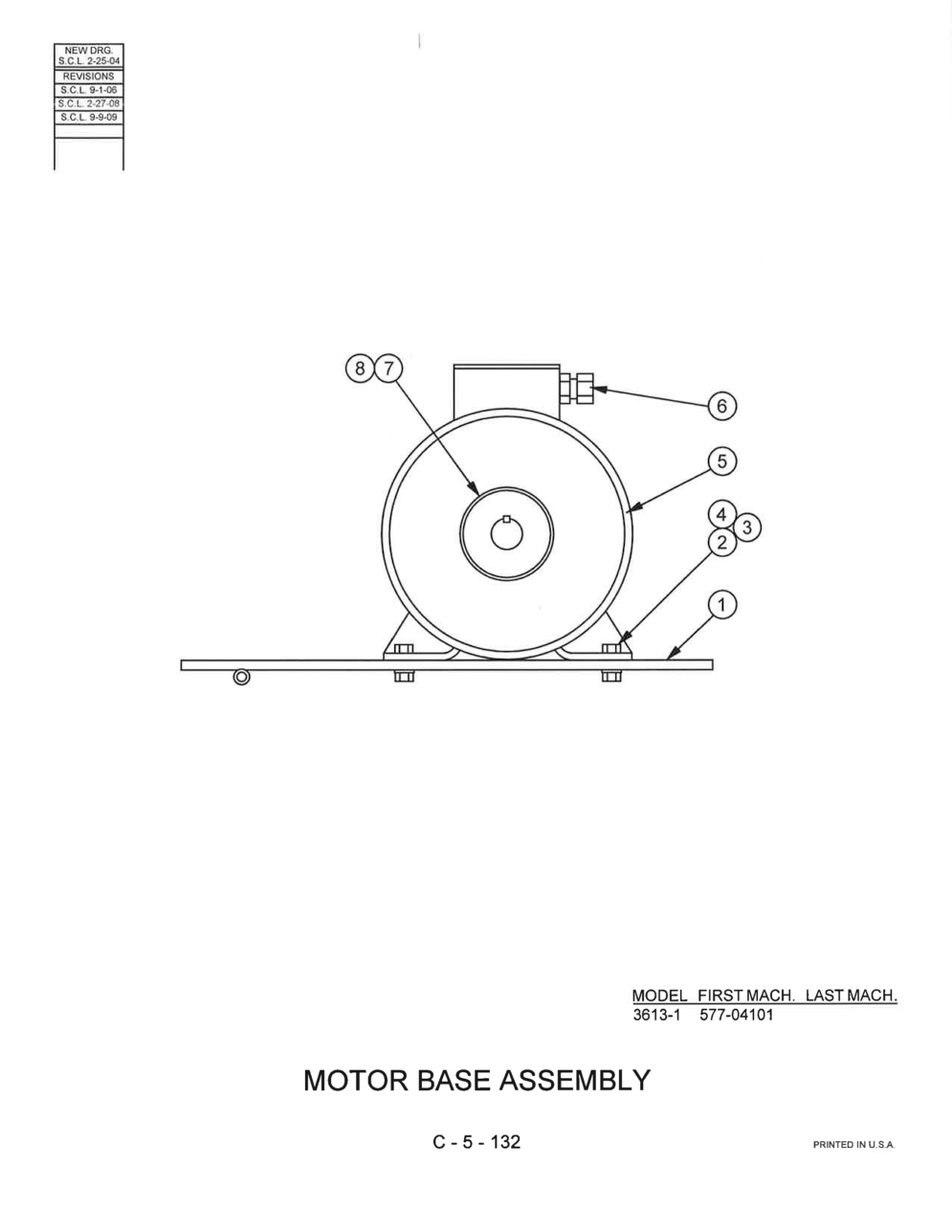

Exploded View Parts Ordering: 3613-1_577
Page Code: C-5-132
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
|
Description:
Motor Base Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
421097 |
Description:
Motor Base Plate Weldment |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
198046 |
Description:
Screw, Hex. Hd. Cap 3/8-16NC x 1 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
199325 |
Description:
Washer, Lock 3/8 Std. |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
199126 |
Description:
Nut, Hex. 3/8-16NC |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
209624 |
Description:
Electric Motor |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
209625 |
Description:
Electric Motor (575V Only) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
3154 |
Description:
Cord Grip Connector (.625-.750) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
326043 |
Description:
Pulley (60 Hz) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
326044 |
Description:
Pulley (50 Hz) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
198424 |
Description:
Screw, Soc. Set 1/4-20NC x 3/8 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
Following Not Shown: |
Units Per Assembly:
|
Availability:
|
Price:
|
Index No Ref.:
|
Part Number:
205642 |
Description:
Motor Terminal Block (50 Hz Only) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
