Exploded View Parts Ordering: 3613-1_577

3613-1 577 Online Parts Manual

Serial No: 577-04101

Download PDF Version

Return to manuals

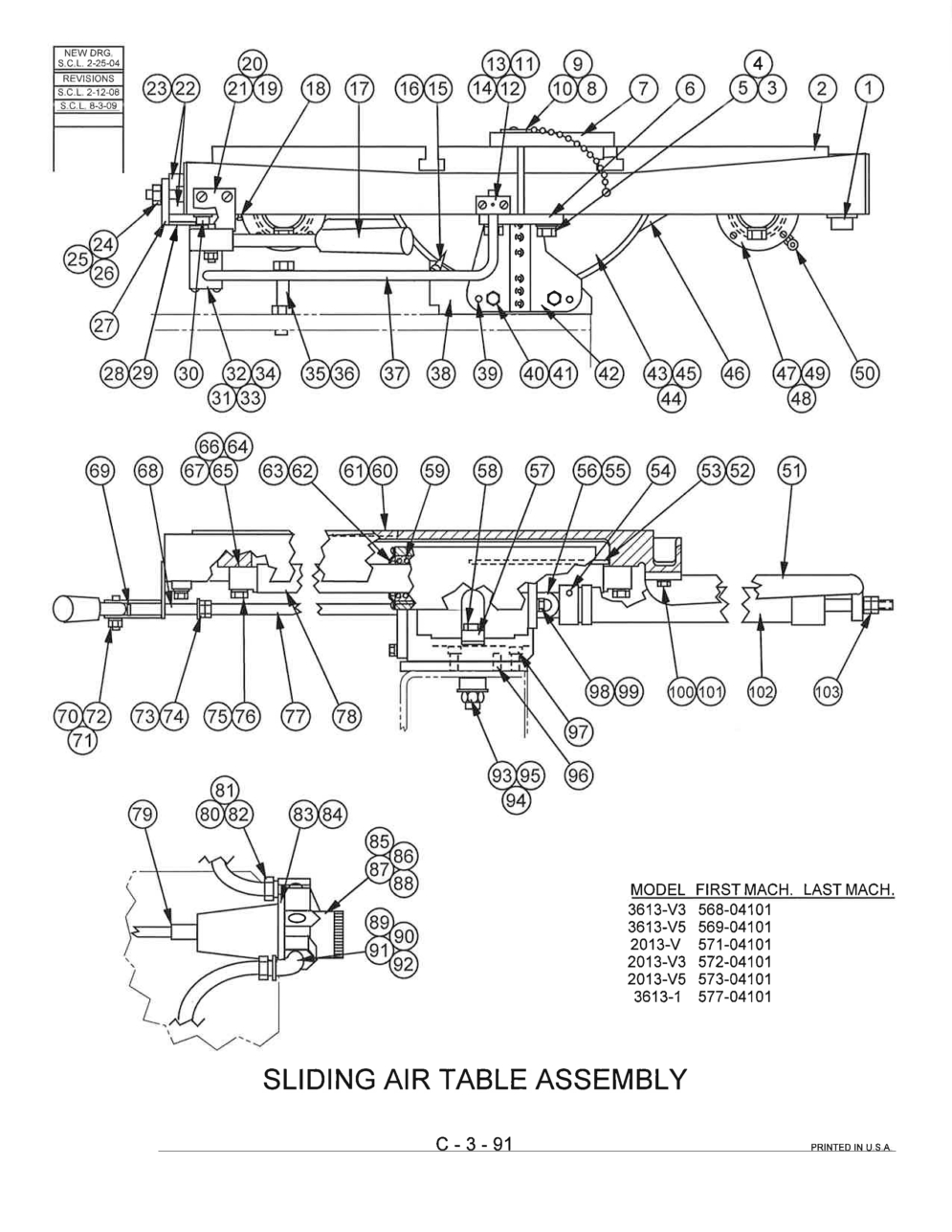

Page Code: C-3-91

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503826 Description: Sliding Air Table Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 211092 Description: Sliding Air Table Assembly (18" Stroke Option) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 35-006580 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 501380 Description: Table Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 518044 Description: Table (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 198047 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 199264 Description: Washer, Flat 3/8 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 4599 Description: Clamp Units Per Assembly: 1 Availability: In Stock Price: $17.45
Index No Ref.: 7 Part Number: 125361 Description: Square Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 129590 Description: Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 198851 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 125393 Description: Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135730 Description: Support Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 198847 Description: Screw, Rd. Hd. Mach. #6-32NC x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 199317 Description: Washer, Lock #6 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 198406 Description: Screw, Soc. Set #6-32NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 34-003315 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 198838 Description: Screw, Rd, Hd. Mach. #6-32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 131011 Description: Handle Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 118116 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: Part Number: 4242 Description: Spring Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 125392 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 35-001775 Description: Grease Fitting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 125389 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 198895 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 199356 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 23967 Description: Slide Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 321369 Description: Slide Bar (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 198221 Description: Screw, Soc. Hd. Cap #10-24NC x 5/8 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 9392 Description: T-Bolt 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 199122 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 198218 Description: Screw, Soc, Hd. Cap #10-24NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 9504 Description: Dog Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 9503 Description: Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 198895 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 6-033518 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 135741 Description: Support Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 198850 Description: Screw, Rd. Hd. Mach. #6-32NC x 1-3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 199317 Description: Washer, Lock #6 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 198406 Description: Screw, Soc. Set #6-32NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 198053 Description: Screw, Hex. Hd. Cap 3/8-16NC x 2-3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 199127 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 303601 Description: Guard Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 40903 Description: Cradle Units Per Assembly: 1 Availability: In Stock Price: $769.05
Index No Ref.: 39 Part Number: 133875 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 198047 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 24241 Description: Keeper Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 21621 Description: Trunnion Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 198822 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 199356 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 50791 Description: Trunnion Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 5176 Description: Retainer Units Per Assembly: 4 Availability: In Stock Price: $220.34
Index No Ref.: 48 Part Number: 198867 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 16 Availability: In Stock Price: $4.20
Index No Ref.: 49 Part Number: 199319 Description: Washer, Lock #10 Std. Units Per Assembly: 16 Availability: In Stock Price: $4.20
Index No Ref.: 50 Part Number: 10656 Description: 45 Degree Grease Fitting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 41061 Description: Cylinder Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 418499 Description: Cylinder Bracket Weldment (18" Stroke Option) Units Per Assembly: 11 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 503045 Description: Pan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 518292 Description: Pan Assembly (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 418785 Description: Sliding Pan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 321752 Description: Pan Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 199019 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 11-005509 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 21594 Description: Swivel Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 5130 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 39464 Description: Head Units Per Assembly: 1 Availability: In Stock Price: $79.09
Index No Ref.: 58 Part Number: 198106 Description: Screw, Hex. Hd. Cap 3/4-16NF x 5 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 3647 Description: Ball Bushing Units Per Assembly: 4 Availability: In Stock Price: $271.78
Index No Ref.: 60 Part Number: 10490 Description: Center Plate Units Per Assembly: 1 Availability: In Stock Price: $108.83
Index No Ref.: 61 Part Number: 4209 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 62 Part Number: 165507 Description: Rod Wiper Units Per Assembly: 4 Availability: In Stock Price: $2.46
Index No Ref.: 63 Part Number: 260468 Description: O-Ring Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 64 Part Number: 133310 Description: Shim (.035) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 133311 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 133312 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 133313 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 172730 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 4244 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 70 Part Number: 198252 Description: Screw, Soc. Hd. Cap 1/4-28NF x 1-1/4 Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 115660 Description: Locknut 1/4-28NF (Slotted) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 104632 Description: Belleville Washer Units Per Assembly: 6 Availability: In Stock Price: $1.28
Index No Ref.: 73 Part Number: 199127 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 74 Part Number: 199358 Description: Washer, Lock 3/8 Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 75 Part Number: 198069 Description: Screw, Hex. Hd. Cap 1/2-13NC x 2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 76 Part Number: 199327 Description: Washer, Lock 1/2 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 77 Part Number: 203103 Description: Actuator Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 211086 Description: Actuator Rod (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 78 Part Number: 21612 Description: Guide Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 321738 Description: Guide Rod (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 79 Part Number: 199356 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 80 Part Number: 197094 Description: Neoprene Hose 11/16 O.D. (Black) Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 81 Part Number: 2004 Description: Barbed Insert Units Per Assembly: 2 Availability: In Stock Price: $7.90
Index No Ref.: 82 Part Number: 35-006888 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 83 Part Number: 125386 Description: Mounting Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 84 Part Number: 198678 Description: Screw, Fil. Hd. Mach. 1/4-24NF x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 85 Part Number: 125674 Description: Regulating Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 86 Part Number: 198009 Description: Screw, Hex. Hd, Cap 1/4-20NC x 7/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 87 Part Number: 199356 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 88 Part Number: 122748 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 89 Part Number: 17-013521 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $8.40
Index No Ref.: 90 Part Number: 2004 Description: Barbed Insert Units Per Assembly: 2 Availability: In Stock Price: $7.90
Index No Ref.: 91 Part Number: 35-006888 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 92 Part Number: 197094 Description: Neoprene Hose 11/16 O.D. (Black) Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 93 Part Number: 199141 Description: Nut, Hex. Jam 3/4-16NF Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 94 Part Number: 199268 Description: Washer, Flat 3/4 S.A.E. Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 95 Part Number: 10501 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 96 Part Number: 16351 Description: Dowel Pin (1" Long) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 35-000445 Description: Dowel Pin (1-1/2" Long) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 97 Part Number: 198291 Description: Screw, Soc. Hd. Cap 1/2-13NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 98 Part Number: 198027 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 99 Part Number: 199323 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 100 Part Number: 198044 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 101 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 102 Part Number: 209718 Description: Table Feed Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 209867 Description: Table Feed Cylinder (18" Stroke Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 103 Part Number: 199134 Description: Nut, Hex. Jam 1/2-20NF Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 204231 Description: Adjustment/Installation Summary Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 35-004455 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 203809 Description: Flow Control Valve (Right Angle) Units Per Assembly: 1 Availability: In Stock Price: $93.30
Index No Ref.: Part Number: 176811 Description: Vent Filter Breather Units Per Assembly: 1 Availability: In Stock Price: $5.45
Index No Ref.: Part Number: 203271 Description: Grommet Units Per Assembly: 3 Availability: Call For Info Price:
