Exploded View Parts Ordering: 3613-1_440

3613-1 440 Online Parts Manual

Serial No: 440-83101 End Date 440-04919

Return to manuals

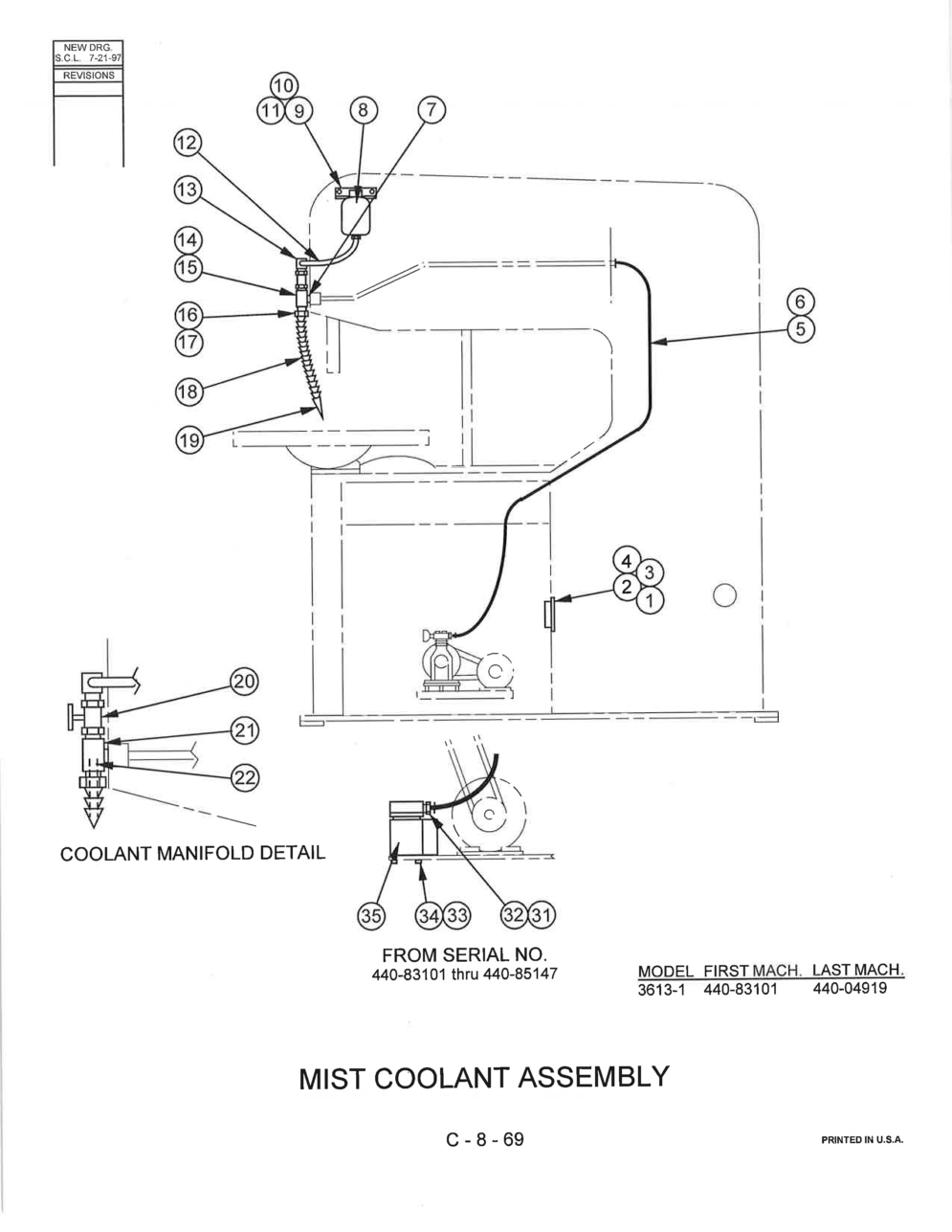

Page Code: C-8-69

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 085-123115 Description: Mist Coolant Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-255560 Description: Fan Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 092-087980 Description: Fan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 092-087998 Description: Fan Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 092-088004 Description: Fan Lead Wire Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-980947 Description: Neoprene Hose 11/16 O.D. (Black) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-369181 Description: Bottle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 093-039568 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-988931 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993212 Description: Washer, Flat 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 12 Part Number: 091-981440 Description: Plastic Tubing 3/8 O.D. (Clear) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-081166 Description: 90 Degree Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-994830 Description: Screw, Rd. Hd. Mach. #10-24NC x 1-1/2 (If Supplied) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-383035 Description: Coolant Manifold Sub-Assembly (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-383043 Description: Coolant Manifold Sub-Assembly (19" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-073344 Description: Coolant Manifold Sub-Assembly (25" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-115657 Description: Coolant Manifold Sub-Assembly (31" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-725309 Description: Coolant And Air Hose (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725317 Description: Coolant And Air Hose (19" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725325 Description: Coolant And Air Hose (25" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725333 Description: Coolant And Air Hose (31" Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-725291 Description: Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-973222 Description: Segmented Hose (Specify Length) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-725283 Description: Nozzle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 105-275077 Description: Sight Feed Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-199109 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-210617 Description: Coolant Tube Assembly (Cut to Length) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971408 Description: Nylon Tubing (.089 O.D. (Specify Length) Units Per Assembly: A.R. Availability: In Stock Price: $16.42
Index No Ref.: Part Number: 091-368936 Description: Glue (Meta Grip #3802) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-199125 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: From Serial Description: No. 440-83101 thru 440-85147: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-982298 Description: Screw, Soc. Hd. Cap #10-32NF x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-681569 Description: Air Compressor (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-698464 Description: Air Compressor (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-696310 Description: Air Filter Units Per Assembly: 1 Availability: Call For Info Price:
