Exploded View Parts Ordering: 3613-1_440

3613-1 440 Online Parts Manual

Serial No: 440-83101 End Date 440-04919

Return to manuals

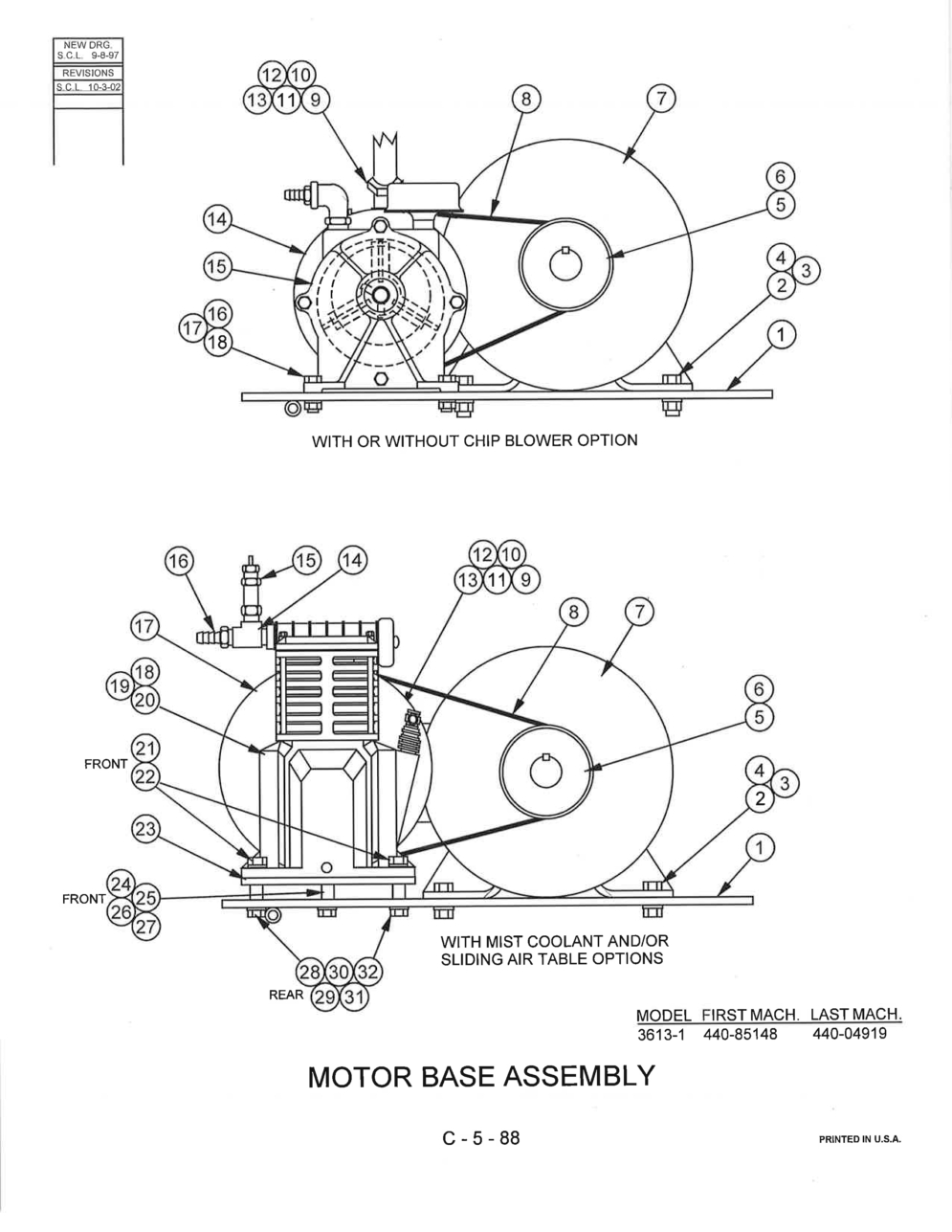

Page Code: C-5-88

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Motor Base Assembly (w or w/o Chip Blower Option) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1* Part Number: 094-188737 Description: Base Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5* Part Number: 093-220085 Description: Motor Pulley (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-220093 Description: Motor Pulley (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7* Part Number: 092-126226 Description: Electric Motor (220V, 230V, 380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-126234 Description: Electric Motor (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-115208 Description: V-Belt Units Per Assembly: 1 Availability: In Stock Price: $15.88
Index No Ref.: 9 Part Number: 090-145079 Description: 45 Degree Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-492637 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-144809 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 14 Part Number: 105-113161 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-427089 Description: Air Pump Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-980102 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 18 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #440-97752, Item #1 was #094-071537, #5 was #093-057062 Pulley (60 Hz) and #093-057088 Pulley (50 Hz). For Item #7, Order #090-854639 - Motor Replacement Kit. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: Description: Motor Base Assembly (with Mist Coolant and/or Sliding Air Table Options) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1* Part Number: 094-188737 Description: Base Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5* Part Number: 093-220085 Description: Motor Pulley (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-220093 Description: Motor Pulley (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7* Part Number: 092-126226 Description: Electric Motor (220V, 230V, 380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-126234 Description: Electric Motor (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8** Part Number: 135-095941 Description: V-Belt (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-077421 Description: V-Belt (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-145079 Description: 45 Degree Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-492637 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-144809 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 14 Part Number: 091-208579 Description: Street Tee (Brass) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-180885 Description: Safety Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-186411 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18** Part Number: 092-199611 Description: Air Compressor (Speedaire - Model 4B244) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19** Part Number: 092-199538 Description: Synthetic Oil (Mobil 1, 10W-30) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-318170 Description: Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23** Part Number: 093-255180 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-211615 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-992628 Description: Washer, Flat 5/16 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-993287 Description: Washer, Lock 5/16 Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-980342 Description: Screw, Hex. Hd. Cap 5/16-18NC x 2-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-992628 Description: Washer, Flat 5/16 S.A.E. Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-211607 Description: Spacer Units Per Assembly: 2 Availability: In Stock Price: $26.82
Index No Ref.: Part Number: 092-119593 Description: Motor Mount Spacer (Not Shown) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #440-97752, Item #1 was #094-071537, #5 was #093-057062 Pulley (60 Hz) and #093-057088 Pulley (50 Hz). For Item #7 order 090-854639 Motor Replacement Kit. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: ** NOTE: Before Serial #440-01870 and on #440-01871, 878,881-883, Order: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 092-198522 Description: Air Compressor Replacement Kit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-384461 Description: Oil (ASTM Grade 465) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-211631 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
