Exploded View Parts Ordering: 3613-1_440

3613-1 440 Online Parts Manual

Serial No: 440-83101 End Date 440-04919

Return to manuals

Page Code: C-5-81

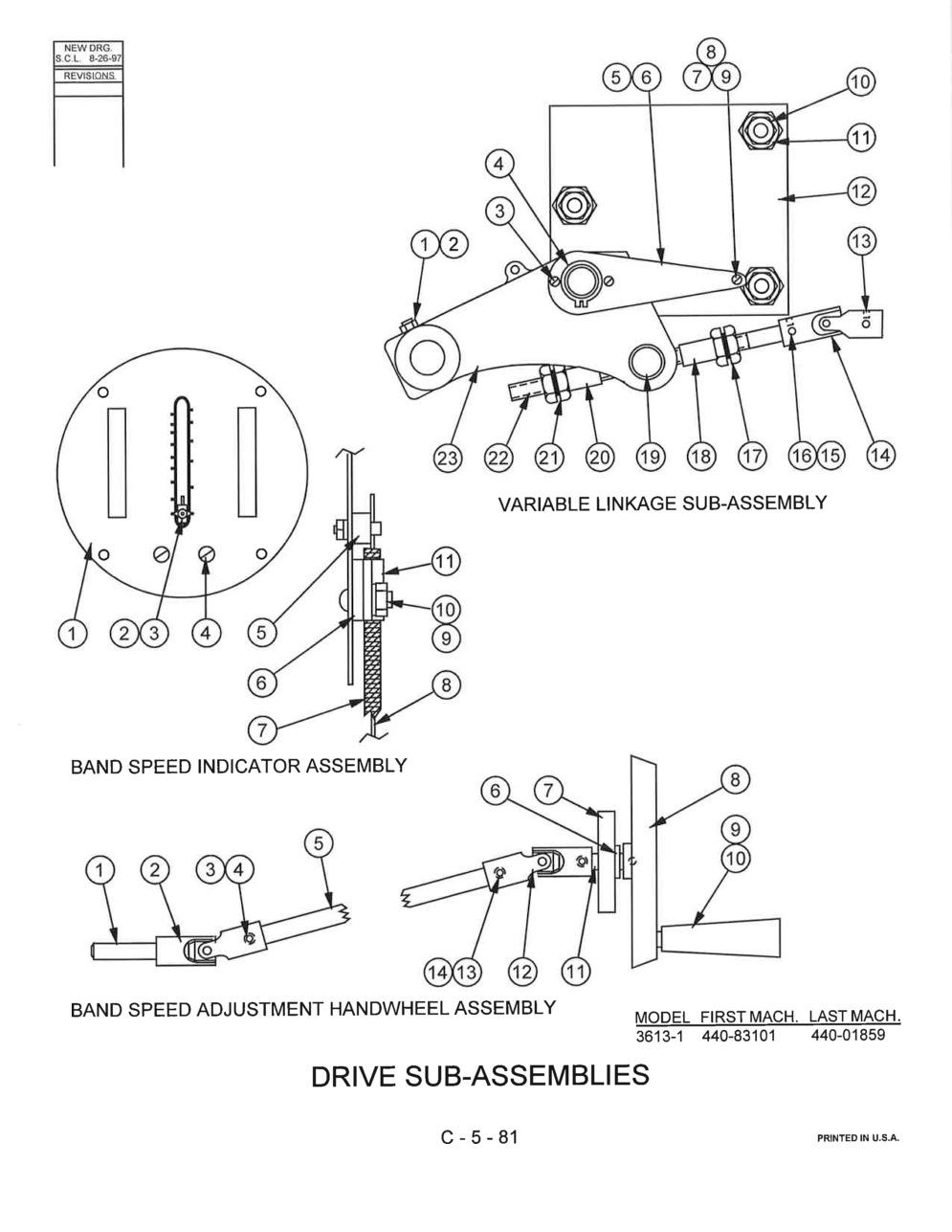

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-374992 Description: Band Speed Indicator Assembly (Inch/English) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-026771 Description: Band Speed Indicator Assembly (Metric/International) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-374984 Description: Speed Indicator Dial (Inch/English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-377680 Description: Speed Indicator Dial (Metric/International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-054076 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-984005 Description: Screw, Soc. Set #4-32NC x 1/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-988543 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-194134 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-187047 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-973172 Description: Nylon Tubing 3/16 O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-187005 Description: Speed Indicator Wire Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-991091 Description: Nut, Hex. Jam #8-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993188 Description: Washer, Lock #8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-186981 Description: Strap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-136828 Description: Variable Linkage Sub-Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 01 Part Number: 091-984401 Description: Screw, Soc. Set 5/16-18NC x 1 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 02 Part Number: 091-991232 Description: Nut, Hex. Jam 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 03 Part Number: 091-988543 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 04 Part Number: 135-075588 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 05 Part Number: 091-245878 Description: Indicator Arm Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 06 Part Number: 091-245886 Description: Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 07 Part Number: 091-986877 Description: Screw, Fill. Hd. Mach. #4-40NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 08 Part Number: 135-063287 Description: Swivel Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 09 Part Number: 091-992925 Description: Washer, Brass #8-S Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-059569 Description: Adjusting Screw Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-991422 Description: Nut, Hex. Jam 3/4-16NF Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 093-057032 Description: Base Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-422535 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-042573 Description: Spring Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 105-134100 Description: Screw Stop Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-079799 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-061755 Description: Trunnion Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-079799 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 105-134100 Description: Screw Stop Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-325309 Description: Variable Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-057057 Description: Speed Adjustment Handwheel Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 01 Part Number: 091-433235 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 02 Part Number: 091-422535 Description: Universal Joint Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 03 Part Number: 091-984211 Description: Screw, Soc. Set 1/4-20NC x 3/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 04 Part Number: 090-042573 Description: Spring Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 05 Part Number: 091-433250 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 06 Part Number: 106-235211 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 07 Part Number: 091-078683 Description: Mounting Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 08 Part Number: 090-425356 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 09 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 10 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-433243 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-422535 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-984211 Description: Screw, Soc. Set 1/4-20NC x 3/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-042573 Description: Spring Pin Units Per Assembly: 2 Availability: Call For Info Price:
