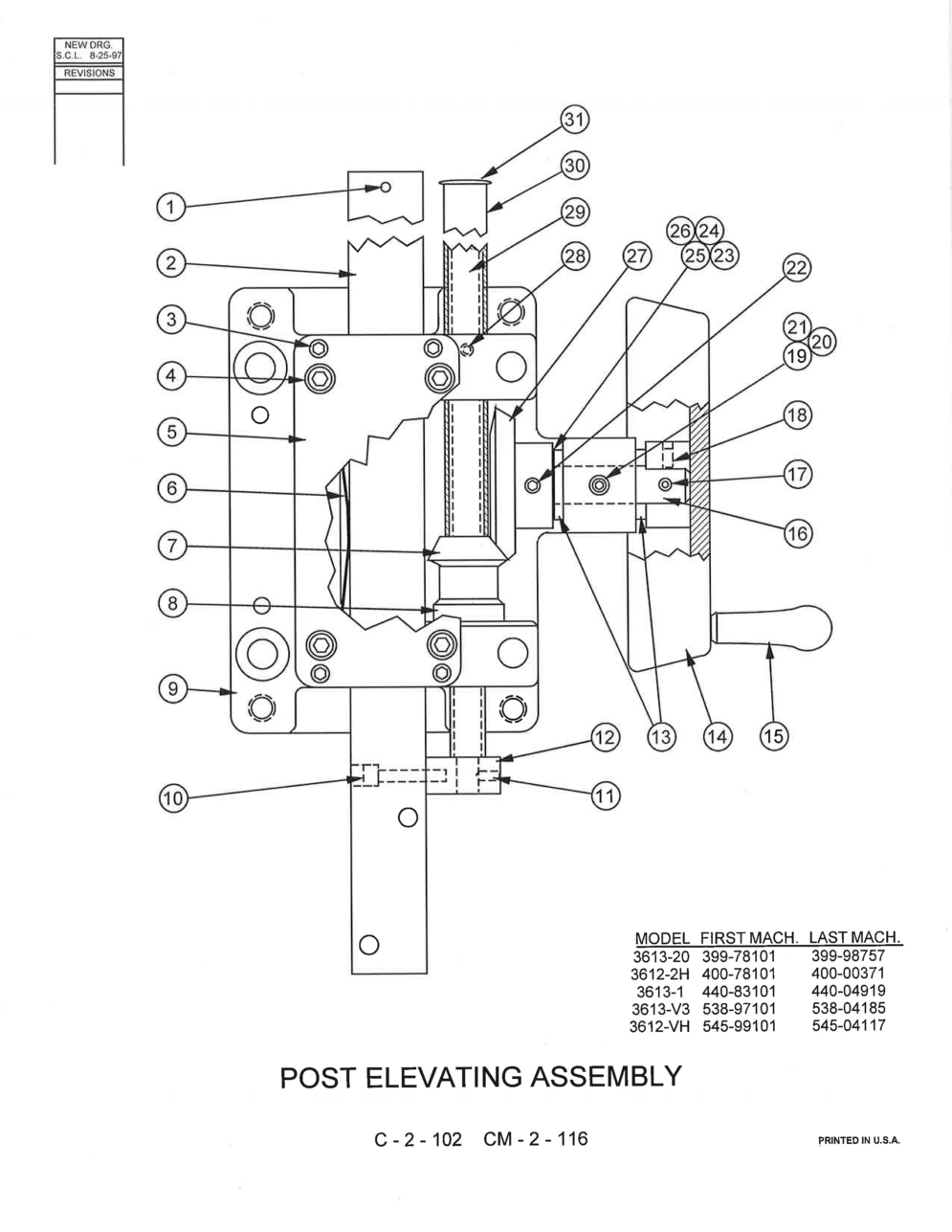

Exploded View Parts Ordering: 3613-1_440

3613-1 440 Online Parts Manual

Serial No: 440-83101 End Date 440-04919

Return to manuals

Page Code: C-2-102

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-390550 Description: Post Elevating Assembly (Standard) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-063162 Description: Post Elevating Assembly (18" and 19" Work Heights) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-056877 Description: Post Elevating Assembly (24" and 25" Work Heights) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-076693 Description: Post Elevating Assembly (30' and 31" Work Heights) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-042250 Description: Spring Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-391186 Description: Post (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057511 Description: Post (18" and 19" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057529 Description: Post (24" and 25" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057537 Description: Post (30" and 31" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-985903 Description: Screw, Soc. Set 1/4-20NC x 1/2 (Half Dog Pt.) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-982363 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 090-386442 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 105-013064 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-209254 Description: Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-028108 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 094-017688 Description: Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-982256 Description: Screw, Soc. Hd. Cap #10-24NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-209205 Description: Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-154278 Description: Screw, Soc. Set #10-24NC x 1/4 (Self-Locking) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-209221 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-386434 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-046904 Description: Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-209239 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-042599 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 18 Part Number: 091-984104 Description: Screw, Soc. Set #10-24NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-407650 Description: Friction Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-039710 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-564765 Description: Screw, Soc. Set #10-24NC x 3/8 (Self-Locking) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-333104 Description: Shim (.035) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-333112 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-333120 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-333138 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-144353 Description: Bevel Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-984096 Description: Screw, Soc. Set #10-24NC x 3/16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-209247 Description: Screw (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057545 Description: Screw (18" and 19" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057552 Description: Screw (24" and 25" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-057560 Description: Screw (30" and 31" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-235804 Description: Tube (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-428169 Description: Tube (18" and 19" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-428177 Description: Tube (24" and 25" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-428185 Description: Tube (30" and 31" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-235812 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
