Exploded View Parts Ordering: 3613-1_440

3613-1 440 Online Parts Manual

Serial No: 440-83101 End Date 440-04919

Return to manuals

Page Code: C-10-52

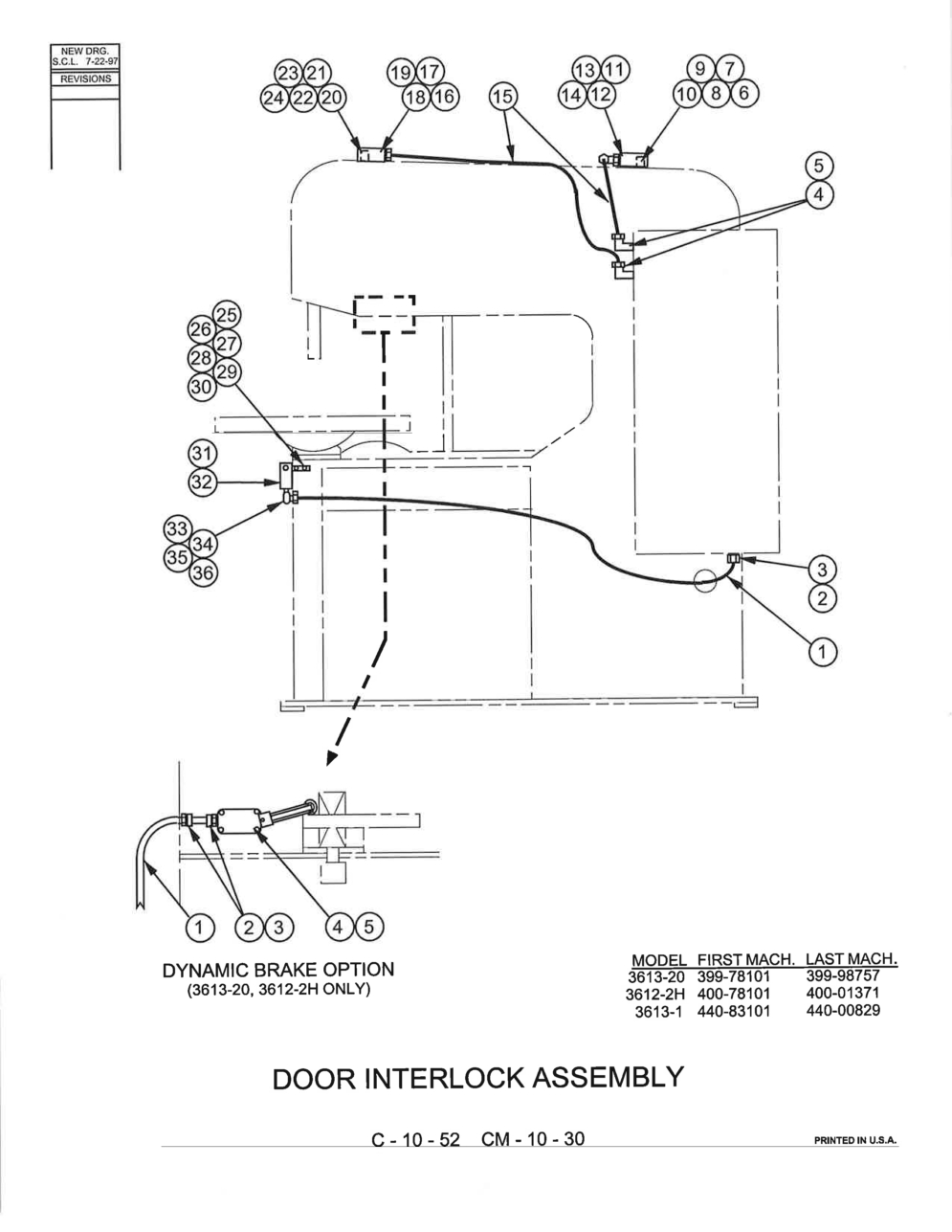

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 081-673279 Description: Door Interlock Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 2 Part Number: 090-145459 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-145046 Description: 90 Degree Sealtite Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-670992 Description: Actuator Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-988543 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-991646 Description: Nut, Hex. #8-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-992578 Description: Washer, Flat #8 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 091-993717 Description: Washer, Lock #8 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 092-011824 Description: Limit Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-982348 Description: Screw, Soc. Hd. Cap #10-32NF x 2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-145459 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 16 Part Number: 092-011824 Description: Limit Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-982348 Description: Screw, Soc. Hd. Cap #10-32NF x 2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-145459 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-670992 Description: Actuator Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-988543 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-991646 Description: Nut, Hex. #8-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-992578 Description: Washer, Flat #8 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 091-993717 Description: Washer, Lock #8 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-673269 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-982207 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-993204 Description: Washer, Lock #10 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 091-980060 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-993566 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-991760 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 092-011824 Description: Limit Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-982348 Description: Screw, Soc. Hd. Cap #10-32NF x 2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-050971 Description: 90 Degree Box Connnector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-673285 Description: Conduit Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-421420 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-145459 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 085-084770 Description: Dynamic Brake Option (3613-20, 3612-2H Only) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-972216 Description: Electrical Cord (#16-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-107897 Description: Cord Grip Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-261926 Description: Limit Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-983510 Description: Screw, Soc. Hd. Cap #8-32NC x 1-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
