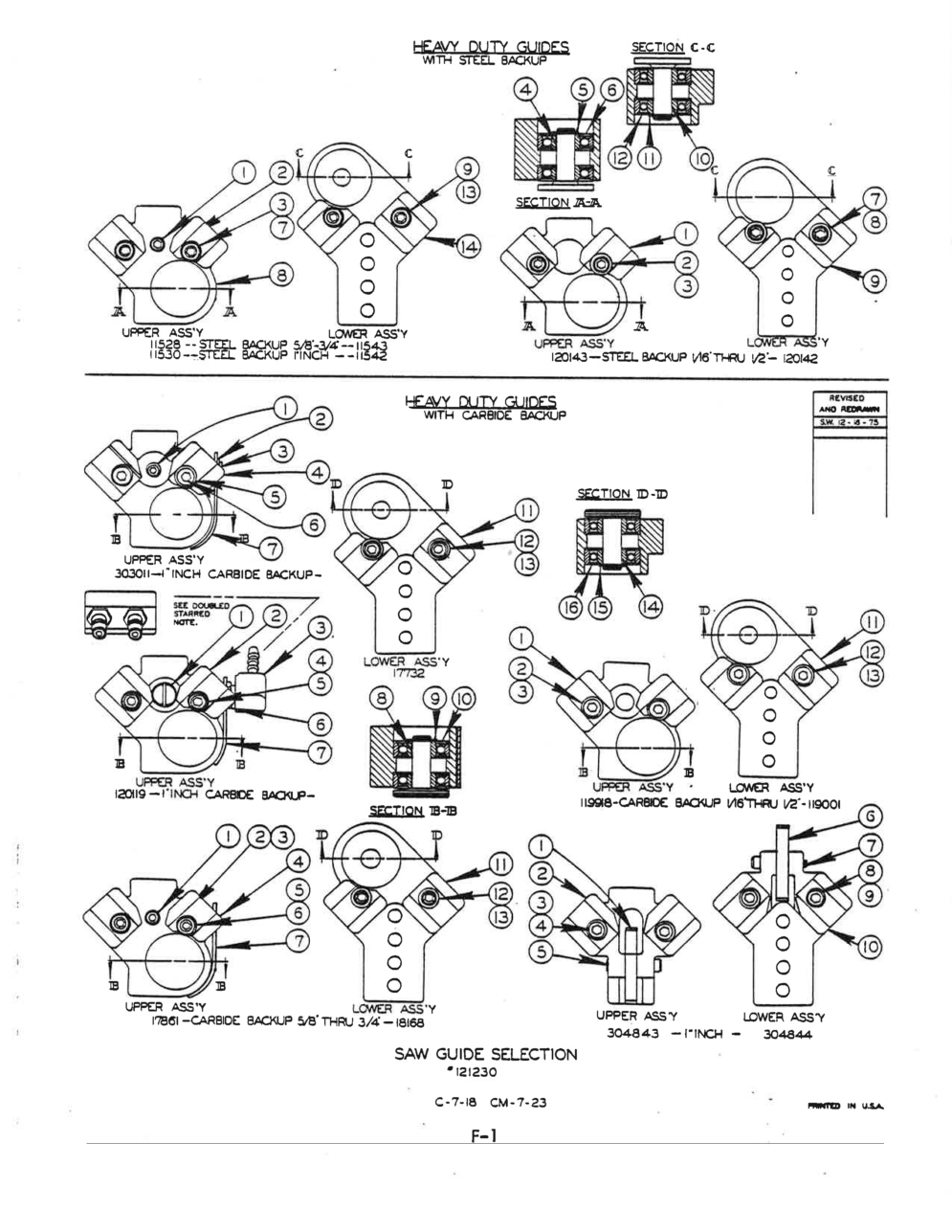

Exploded View Parts Ordering: 3613-1_149
3613-1 149 Online Parts Manual
Serial No: 149-59101 End Date 149-73706
Page Code: C-7-18
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: | Part Number: | Description: HEAVY DUTY GUIDES(STEEL BACKUP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-201434 | Description: Upper Saw Guide Ass'y. (1/16" to 1/2") | Units Per Assembly: | Availability: In Stock | Price: $691.35 |
| Index No Ref.: 1 | Part Number: 090-380767 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 4 | Part Number: 090-115403 | Description: Bearing Cats | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 5 | Part Number: 040-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 091-201426 | Description: Lower Saw Guide Asey. (1/16" to 1/2") | Units Per Assembly: | Availability: In Stock | Price: $728.88 |
| Index No Ref.: 7 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 9 | Part Number: 090-377383 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: I | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 11 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 090-115288 | Description: Upper Saw Guide Ass'y (5/8"to 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-115314 | Description: Upper Saw Guide Ass'y (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-984450 | Description: Screw, Sot. Hd. Set 5/16-24NF x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-203695 | Description: See. Hd. Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap, 1/4-20NC x 1 (5/8" to 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 (1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 5 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 6 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 7 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 8 | Part Number: 090-252529 | Description: Upper Saw Guide Block (5/8" to 3/4") | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252537 | Description: Upper Saw Guide Block (1") | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-115437 | Description: Lower Saw Guide Ass'y. (5/8" to 3/4") | Units Per Assembly: | Availability: In Stock | Price: $467.59 |
| Index No Ref.: Ref. | Part Number: 090-115429 | Description: Lower Saw Guide Ass'y. (11") | Units Per Assembly: | Availability: In Stock | Price: $526.03 |
| Index No Ref.: 9 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (5/8" to 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC is 1-1/4" (1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 11 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 13 | Part Number: 134-4185026 | Description: Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-252586 | Description: Lower Saw Guide Block (5/8" to 3/4") | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252578 | Description: Lower Saw Guide Block (1") | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: HEAVY DUTY GUIDES (CARBIDE BACKUP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-199182 | Description: Upper Saw Guide Ass'y. (1/16" to 1/2") | Units Per Assembly: | Availability: In Stock | Price: $813.26 |
| Index No Ref.: 1 | Part Number: 090-380767 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 8 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 10 | Part Number: 090-115296 | Description: Beating | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 091-190017 | Description: Lower Saw Guide Ass'y. (1/16" to 1/2") | Units Per Assembly: | Availability: In Stock | Price: $1,210.00 |
| Index No Ref.: 11 | Part Number: 090-377383 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 14 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: If Your Machine Was Equipped With Two Coolant Lines to the Upper Saw Guide, Order Additional Parts 091-094524 Swivel Joint, Qty. 1, 090-160011 Barbed Insert Qty. 2 and Delete 091-081166 90 Degree Barbed Insert, Qty. 1 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 16 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 090-178617 | Description: Upper Saw Guide Ass'y. (5/8" to 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-984450 | Description: Screw., Soc. Hd. Set 5/16-24NF x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-332023 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-354415 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-252529 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x l | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 7 | Part Number: 090-183377 | Description: Guide Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 10 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 090-181686 | Description: Lower Saw Guide Ass'y. (5/8" to 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-252586 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x l | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 14 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 16 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 093-030112 | Description: Upper Saw Guide Ass'y. (1") | Units Per Assembly: | Availability: In Stock | Price: $467.67 |
| Index No Ref.: 1 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/1 6-24NF x 1/2" | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-354415 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-332023 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-252537 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 6 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC xl | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 090-183377 | Description: Guido Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-172180 | Description: Bearing Cop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 10 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 091-201194 | Description: Upper Saw Guide Ass'y. (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-335092 | Description: Coolant Nozzle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-336314 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 6 | Part Number: 091-354415 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-183377 | Description: Guide Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 10 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 090-177320 | Description: Lower Saw Guide Block (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-2.52578 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4-40NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 14 | Part Number: 090-172180 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 16 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: Ref. | Part Number: 093-048437 | Description: 1 Inch Upper Saw Guide Block Sub-Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-212100 | Description: Back-Up Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $85.48 |
| Index No Ref.: 2 | Part Number: 094-064300 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982447 | Description: Ser. Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 5 | Part Number: 091-402040 | Description: Pivot Bolt | Units Per Assembly: 1 | Availability: In Stock | Price: $48.24 |
| Index No Ref.: Ref. | Part Number: 093-048445 | Description: 1 Inch Lower Saw Guide Block Sub-Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-212100 | Description: Back-Up Insert | Units Per Assembly: 1 | Availability: In Stock | Price: $85.48 |
| Index No Ref.: 7 | Part Number: 091-402040 | Description: Pivot Bolt | Units Per Assembly: 1 | Availability: In Stock | Price: $48.24 |
| Index No Ref.: 8 | Part Number: 091-982447 | Description: Scr. Soc. Hd. Cap 1/4-20NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 134-085026 | Description: Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 10 | Part Number: 094-067683 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
