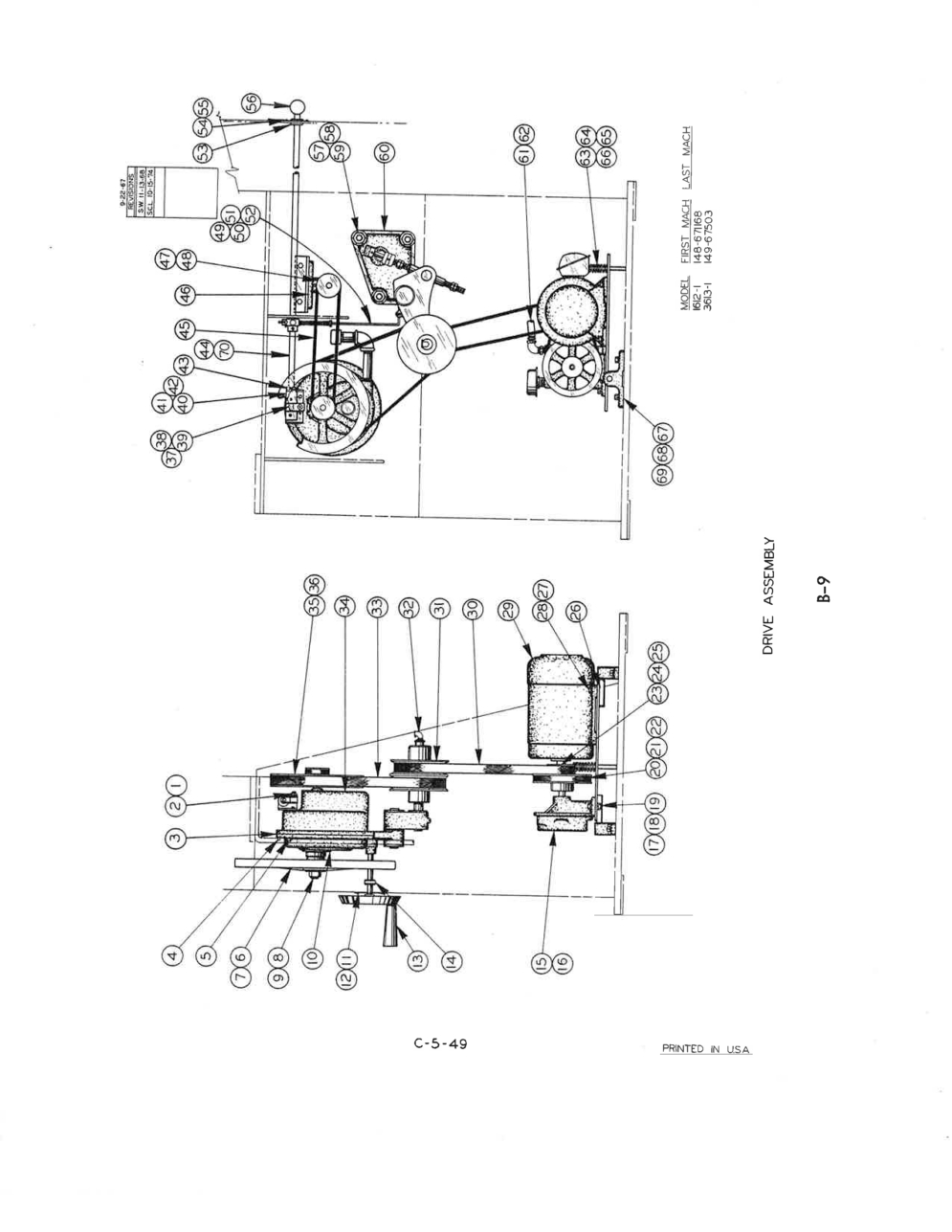

Exploded View Parts Ordering: 3613-1_149
3613-1 149 Online Parts Manual
Serial No: 149-59101 End Date 149-73706
Page Code: C-5-49
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 58460 | Description: Drive Assembly 1612-1 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 58518 | Description: Drive Assembly 3613-1 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 199376 | Description: Washer, Lock 3/8" Shakeproof | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199126 | Description: Nut, Hex 3/8-16NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 5-04313 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 35-6695 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 198030 | Description: Scr, Hex.Hd. Cap 5/16-18NC x 1 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 199323 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 5-04604 | Description: Key | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 29453 | Description: Lower Wheel Ass'y | Units Per Assembly: 1 | Availability: In Stock | Price: $644.45 |
| Index No Ref.: | Part Number: 35-2270 | Description: Tire (Gates #9990-104) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 21726 | Description: Wheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199140 | Description: Nut, Jam 3/4-10NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 199268 | Description: Washer, Plain 3/4 Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 5-04304 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 5-05104 | Description: Handwheel Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199465 | Description: Scr, Self Tap Rd. Hd. #10-24 NC x 3/8 Type F | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 28810 | Description: Handwheel Sub-Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 35-9053 | Description: Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 49971 | Description: Motor & Base Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 42708 | Description: Air Pump Sub-Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 198010 | Description: Scr.,Hex.Hd. Cap 1/4-20 NCx 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199115 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: 199321 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 20 | Part Number: 5-11502 | Description: Belt (Dayco 4L260) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 5-11316 | Description: Pulley | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 198438 | Description: Scr, Soc. Hd. Set 5/16-18 NC x 5/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 198424 | Description: Scr, Soc. Hd. Set 1/4-20 NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 4439 | Description: Key. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 18284 | Description: Pulley (60 Cycle) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 18272 | Description: Pulley (50 Cycle) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 401922 | Description: Base Plate Weldment. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 198029 | Description: Scr, Hex. Hd. Cap 5/16-18 NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 199323 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 115730 | Description: Motor (60 Cycle) (Specify make, volt, phase, h.p.) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 116053 | Description: Motor (50 Cycle) (Specify make, volt, phase, h.p.) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 100642 | Description: Belt (60 Cycle) (Gates RVS-618) | Units Per Assembly: Use | Availability: In Stock | Price: $151.62 |
| Index No Ref.: | Part Number: 16219 | Description: Belt (50 Cycle) (Gates RVS-537) | Units Per Assembly: One | Availability: In Stock | Price: $154.64 |
| Index No Ref.: 31 | Part Number: 45423 | Description: 6P Speed Master Ass'y (See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $2,800.00 |
| Index No Ref.: 32 | Part Number: 10861 | Description: Oiler | Units Per Assembly: 1 | Availability: In Stock | Price: $75.15 |
| Index No Ref.: 33 | Part Number: 100641 | Description: Belt (Gates RVS-617) | Units Per Assembly: 1 | Availability: In Stock | Price: $370.00 |
| Index No Ref.: 34 | Part Number: 55997 | Description: Transmission Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 45420 | Description: Input Pulley | Units Per Assembly: 1 | Availability: In Stock | Price: $3,050.68 |
| Index No Ref.: 36 | Part Number: 7-01345 | Description: Key | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 198422 | Description: Scr, Soc. Hd. Set 1/4-20NC x 1/4 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 6-04404 | Description: Eccentric | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 4259 | Description: Roll Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 40 | Part Number: 35-6562 | Description: Shifter Segment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 198236 | Description: Scr, Soc.Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 42 | Part Number: 35-6563 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 6-04415 | Description: Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 113691 | Description: Lever (3613-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 35-7632 | Description: Belt 1612-1 (Dayton #3L320) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 11-05508 | Description: Belt 3613-1 (Gates #1440) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 6-05001 | Description: Bracket Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 6-05505 | Description: Speed Indicator Pulley | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 198437 | Description: Scr, Soc. Hd. Set 5/16-18NC x 1/2 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 32528 | Description: Shift Lock Operating Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 6-04308 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 107682 | Description: Grip Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.19 |
| Index No Ref.: 52 | Part Number: 199258 | Description: Washer, Plain #10 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 53 | Part Number: 7506 | Description: Grommet | Units Per Assembly: 1 | Availability: In Stock | Price: $9.91 |
| Index No Ref.: 54 | Part Number: 100644 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 199397 | Description: Scr, Drive PK U #2 x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 34-13508 | Description: Ball | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 5956 | Description: Scr, Adjusting | Units Per Assembly: 3 | Availability: In Stock | Price: $17.45 |
| Index No Ref.: 58 | Part Number: 198053 | Description: Scr, Hex. Hd. Cap 3/8-16NC x 2 3/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 199142 | Description: Nut, Hex. Jam 3/4-16NF | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 60 | Part Number: 45422 | Description: Variable Hanger Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: Stk /008 | Description: Hose 5/8 O.D. x 3/8 I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 17902 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 63 | Part Number: 199127 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 64 | Part Number: 199264 | Description: Washer 3/8 Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 65 | Part Number: 35-8759 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 35-8765 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 198046 | Description: Scr, Hex. Hd. Cop 3/8-16NC x1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 199332 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 22038 | Description: Hinge | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 107279 | Description: Lever (1612-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
