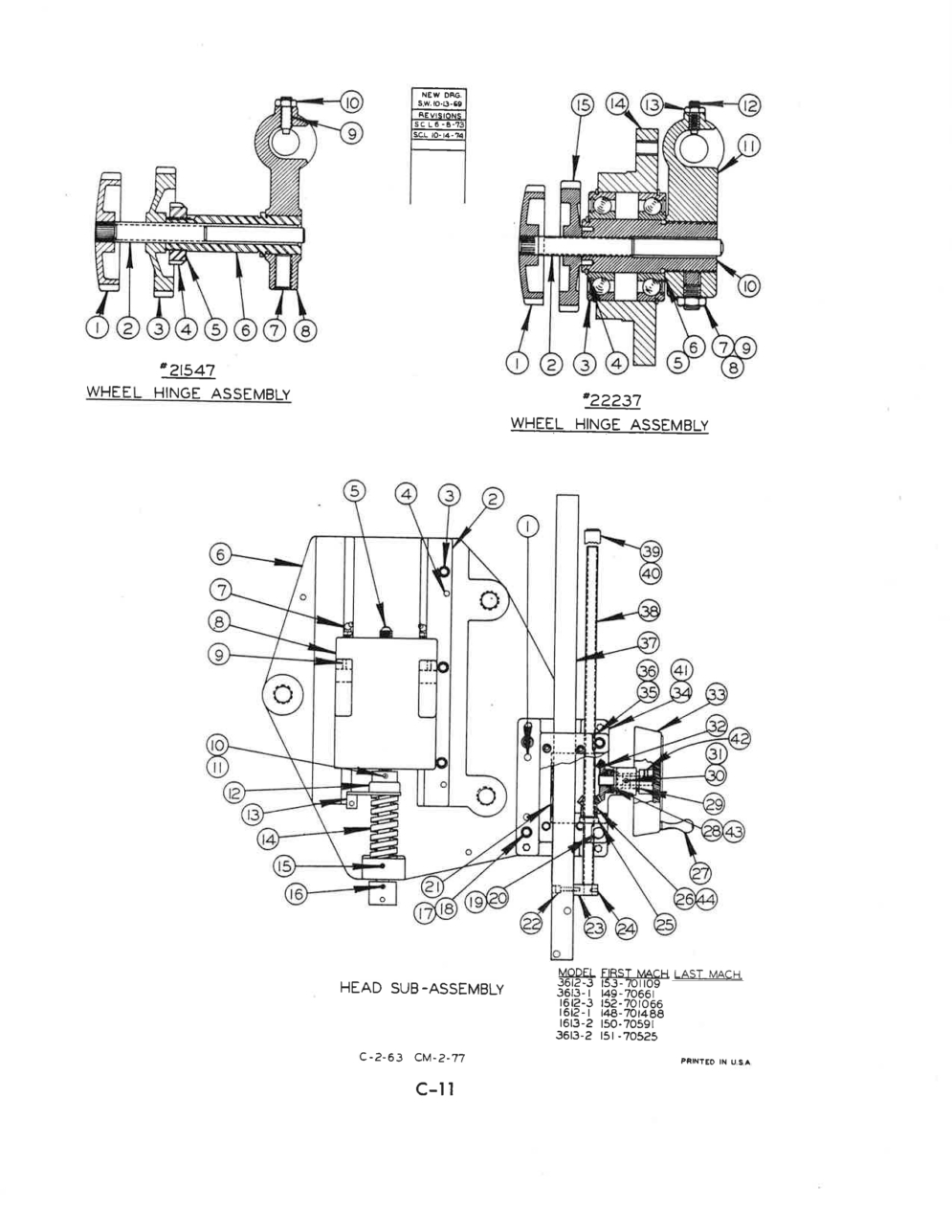

Exploded View Parts Ordering: 3613-1_149
3613-1 149 Online Parts Manual
Serial No: 149-59101 End Date 149-73706
Page Code: C-2-63
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 402127 | Description: Head Sub-Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 5-01401 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 34668 | Description: Gib | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 198262 | Description: Scr., Soc. Hd. Cap 5/16-18NC x 1 1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 4261 | Description: Roll Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 5 | Part Number: 28526 | Description: Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 500373 | Description: Head Casting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 5919 | Description: Grease Fitting | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 41027 | Description: Slide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 198433 | Description: Scr., Soc. Set 1/4-28NF x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 5-01414 | Description: Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 4261 | Description: Roll Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 35-8615 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 100083 | Description: Rod Anchor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 100405 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 35-9473 | Description: Grease Fitting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 100397 | Description: Adapter | Units Per Assembly: 1 | Availability: In Stock | Price: $68.54 |
| Index No Ref.: 17 | Part Number: 198281 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199332 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 5150 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 20 | Part Number: 198287 | Description: Scr., Soc. Hd. Cap 3/8-16NC x 3 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 5-01306 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 198225 | Description: Scr., Soc. Hd. Cap #10-24NC x 1 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 120920 | Description: Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 115427 | Description: Scr., Soc. Set (Nylok) #10-24NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 35-2810 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 120925 | Description: Gear | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 104690 | Description: Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 120923 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 120922 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $4.04 |
| Index No Ref.: 30 | Part Number: 121746 | Description: Friction Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 123576 | Description: Scr., Soc. Set(Nylok)18-32NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 14.435 | Description: Gear | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 38643 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 401768 | Description: Housing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 38644 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 198236 | Description: Scr., Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 37 | Part Number: 402108 | Description: Post | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 120924 | Description: Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 123581 | Description: Plug Button | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 123580 | Description: Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 198409 | Description: Scr., Soc. Set #10-24NC x 3/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 114281 | Description: Scr., Soc. Set (Nylok) #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 131813 | Description: Shim Option List | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 124031 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 21547 | Description: Wheel Hinge Ass'y (1612-1 & 3613-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 5-01108 | Description: Tilting Screw Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 5-01425 | Description: Upper Wheel Tilt Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 5-01109 | Description: Upper Wheel Tilting Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 5-01506 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 5-01507 | Description: Lockwasher | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 5-01424 | Description: Upper Wheel Axis Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 198451 | Description: Scr., Soc. Hd. Set 3/8-16NC x 3/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 21546 | Description: Wheel Hinge | Units Per Assembly: 1 | Availability: In Stock | Price: $202.32 |
| Index No Ref.: 9 | Part Number: 3862 | Description: Screw, Dog Pt. Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 199114 | Description: Nut, Jam 1/4-20NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: Ref. | Part Number: 22237 | Description: Wheel Hinge Ass'y (3612-3, 3613-2, 1612-3, 1613-2) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 5-01108 | Description: Tilt Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 5-01425 | Description: Tilt Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 16538 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $115.71 |
| Index No Ref.: 4 | Part Number: 35-7596 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 13407 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 17827 | Description: Spacer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 35-8578 | Description: Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 198449 | Description: Scr., Soc. Set 3/8-16NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199127 | Description: Nut, Jam 3/8-16NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 16408 | Description: Wheel Axis Stud | Units Per Assembly: 1 | Availability: In Stock | Price: $612.32 |
| Index No Ref.: 11 | Part Number: 22268 | Description: Wheel Hinge | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 3862 | Description: Screw, Dog Pt. Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 199114 | Description: Nut, Jam 1/4-20NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 27016 | Description: Hub | Units Per Assembly: 1 | Availability: In Stock | Price: $1,652.19 |
| Index No Ref.: 15 | Part Number: 16638 | Description: Tilt Lock Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
