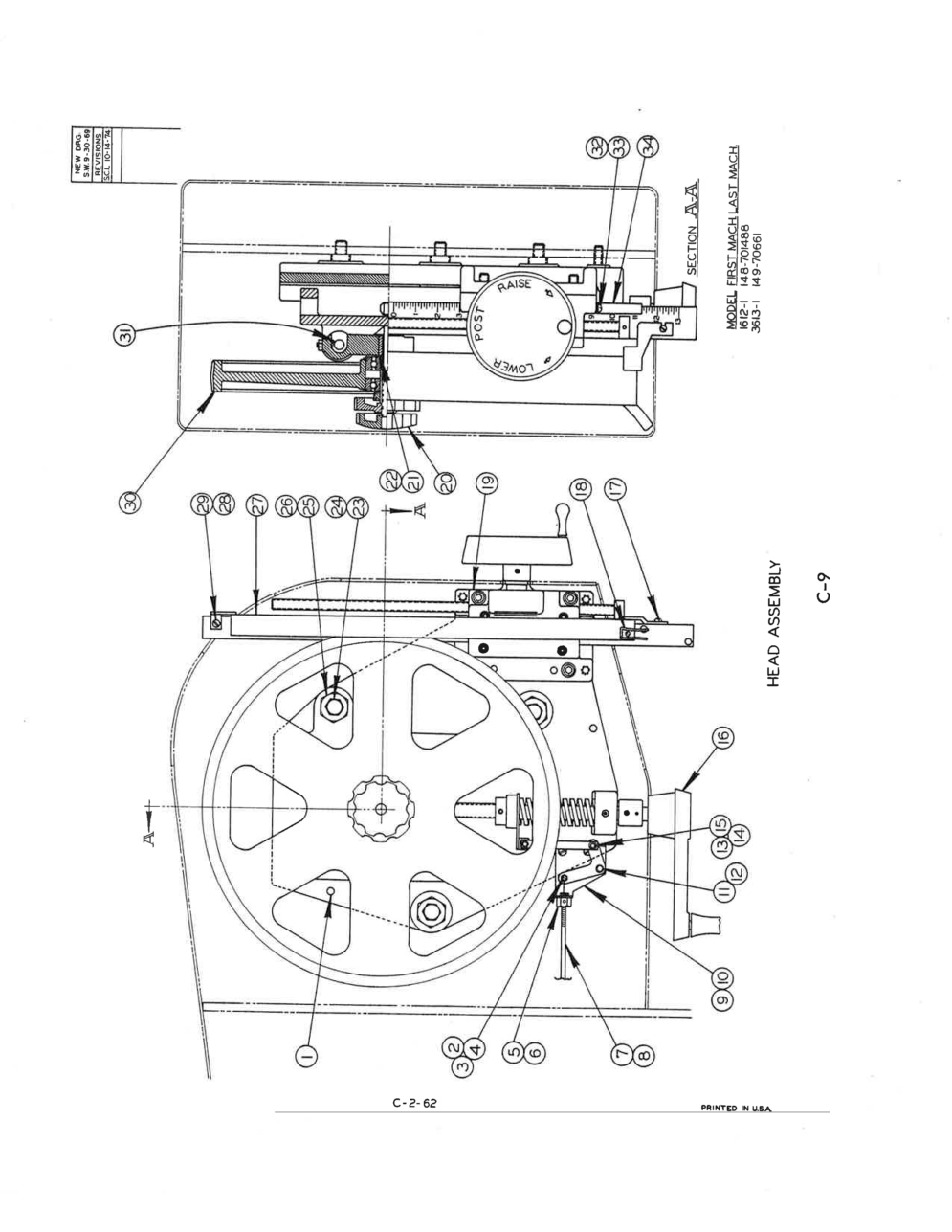

Exploded View Parts Ordering: 3613-1_149
3613-1 149 Online Parts Manual
Serial No: 149-59101 End Date 149-73706
Page Code: C-2-62
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 500389 | Description: Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 5918 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 100189 | Description: Swivel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 100402 | Description: Radius Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 199507 | Description: Cotter Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 3355 | Description: Casing Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 198406 | Description: Screw, Soc. Set #8-32NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 109825 | Description: Casing (Used on 3613-1) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 101140 | Description: Casing (Used on 1612-1) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 100085 | Description: Pivot Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 199319 | Description: Washer, Lock #10 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 100190 | Description: Crank | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 35-8582 | Description: Ext. Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 100846 | Description: Link | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 100404 | Description: Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 4617 | Description: Ext. Retaining Ring | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 28527 | Description: Handle Assembly | Units Per Assembly: 1 | Availability: In Stock | Price: $162.14 |
| Index No Ref.: | Part Number: 34-05513 | Description: Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 45330 | Description: Handle Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 198869 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 3048 | Description: Spring Clip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 402127 | Description: Head Sub-Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 21547 | Description: Wheel Hinge Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 5-01307 | Description: Spacer | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 5-01308 | Description: Spacer | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 198075 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 3 3/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199327 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 5916 | Description: Lockbolt | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 199145 | Description: Nut, Jam 7/8-14NF | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 39190 | Description: Saw Guard Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 5-01304 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 198901 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 35-5127 | Description: Wheel Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 35-2264 | Description: Upper Saw Wheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 35-2270 | Description: Wheel Tire | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 5-01508 | Description: Ball Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 35-8610 | Description: Hinge Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 198851 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 199257 | Description: Washer, Flat #8 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 34 | Part Number: 121805 | Description: Post Scale Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Items Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 45593 | Description: Tension Indicator Ass'y (1612-1) (See Detail) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 45716 | Description: Tension Indicator Ass'y (3612-1) (See Detail) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 17478 | Description: Bezel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 198867 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
