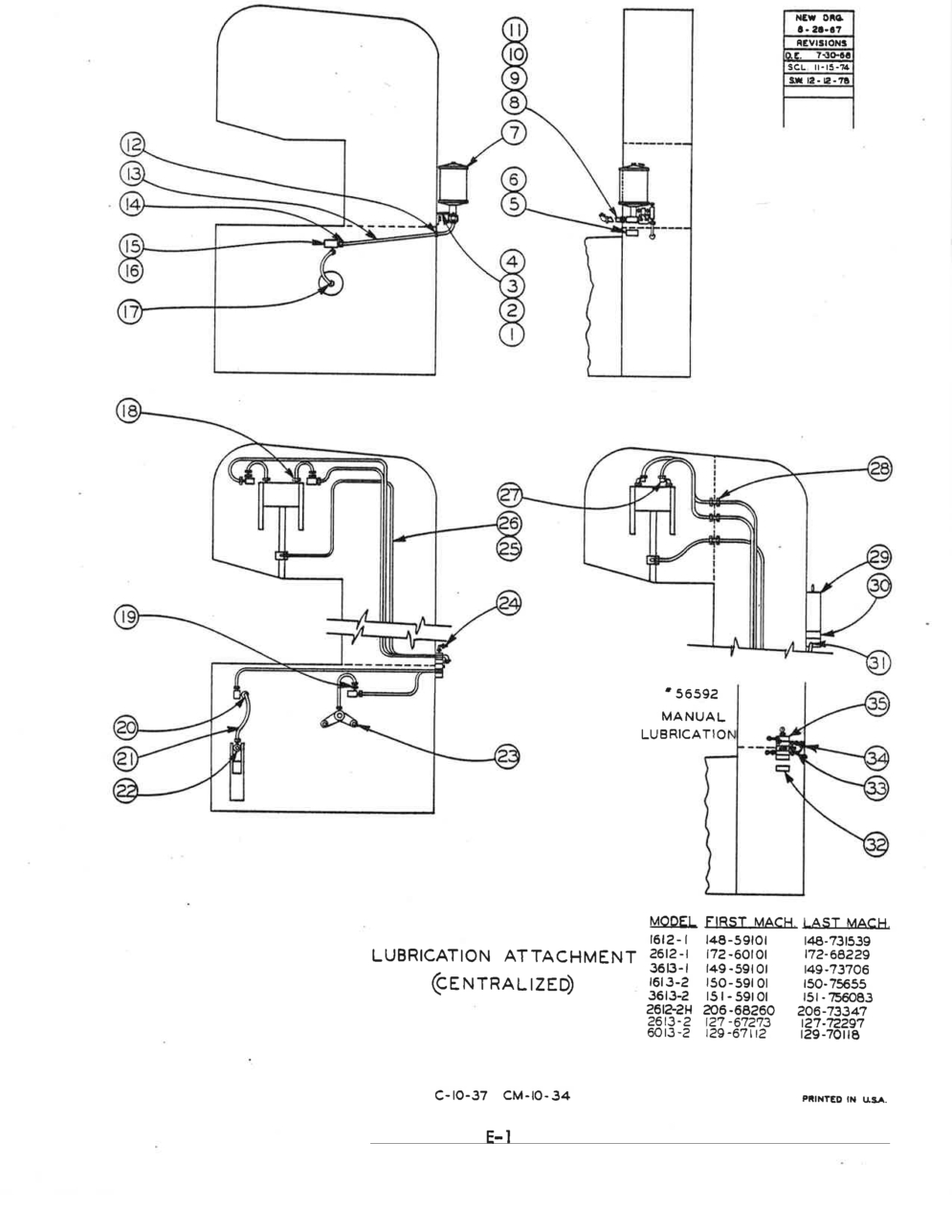

Exploded View Parts Ordering: 3613-1_149
3613-1 149 Online Parts Manual
Serial No: 149-59101 End Date 149-73706
Page Code: C-10-37
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 56591 | Description: Centralized Lubrication Attachment Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 56592 | Description: Manual Lubrication Attachment Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-082057 | Description: Reservoir Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980086 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-991158 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-993212 | Description: Washer, Lock 1/4" Std | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 091-082974 | Description: Auto. Oil Res. Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-993964 | Description: Screw, Drive #2 x 3/16 Type "U" | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-082040 | Description: Oil Reservoir | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-084377 | Description: St. Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-084385 | Description: 90 Degree Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-971564 | Description: Sealtite Conduit 1/2" | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.70 |
| Index No Ref.: 11 | Part Number: 091-971903 | Description: Wire, Stranded #14 Red | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-157801 | Description: Grommet | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-971374 | Description: Nylon Tubing 1/4" O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-014002 | Description: Male Connector | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-079673 | Description: Manifold | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-980110 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/4 | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 135-024560 | Description: Reducer Bushing (#56591 Only) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-330937 | Description: Shaft (#56592 Only) (Used on 1612-1 and 3613-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-011651 | Description: Adaptor (#56591) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-038498 | Description: Swivel Adaptor (#56591) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 090-171109 | Description: 90 Degree Elbow (#56591) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-014028 | Description: 90 Degree Elbow (#56592) | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-069691 | Description: Hose (#56591) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971374 | Description: Nylon Tubing 1/4" O.D. (#56592) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-070839 | Description: Weight Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 090-477811 | Description: Arm (#56592) (Used on 1612-1 AND 3613-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-477829 | Description: Arm (Used on 2612-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-477837 | Description: Arm (#56592) (Used on 1613-2 and 3613-1) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-413725 | Description: Arm (#56592) (Used on 2613-2, 6013-2 & 2612-2H) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-087909 | Description: Grease Fitting (#56591) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-162681 | Description: Tubing Clamp | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-986919 | Description: Screw, Fil. Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-070821 | Description: 90 Degree Elbow | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-095878 | Description: Bulkhead Union (#56592) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-070870 | Description: Manual Pump (#56592) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-982512 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 3- 1/2 (#56592) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-014077 | Description: 90 Degree Male Connector (#56592) | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-082966 | Description: Grease Instruction Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 105-275069 | Description: 90 Degree Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $6.20 |
| Index No Ref.: 34 | Part Number: 090-150301 | Description: Grommet | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-245951 | Description: Valve Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
