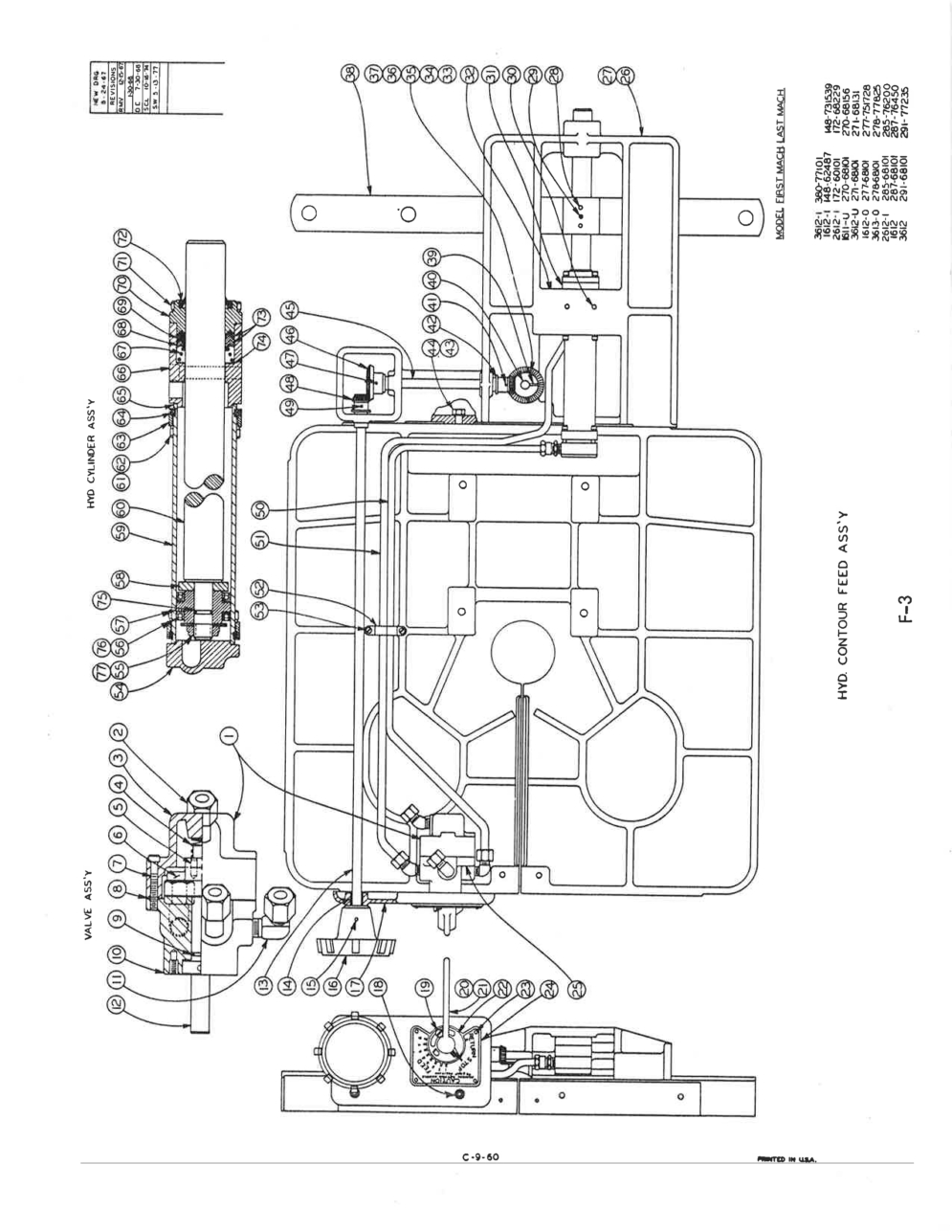

Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825
Page Code: C-9-60
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 35-5212 | Description: Hydraulic Contour Feed Ass'y (1612-0, 3613-0, 1611-U, 1612-1, 1612, 3612, 3612-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 55472 | Description: Hydraulic Contour Feed Ass'y 3612-U & 2612-1 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-244062 | Description: Valve Sub-Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-135848 | Description: 45 Degree Elbow | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 135-008266 | Description: Valve Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 135-008357 | Description: Spring Muehlhausen #M105 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 135-083715 | Description: Pin Baumbach #PD51 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-210998 | Description: Disc & Pin Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-982264 | Description: Scr. Skt. Hd. Cap #10-24 NCx 1-1/4" | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 135-008241 | Description: Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-091767 | Description: "O"-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-210246 | Description: Valve Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-071084 | Description: 90 Degree Elbow | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-210261 | Description: Control Shaft & Collar Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-038604 | Description: Shaft (Used on Ass'y #55472) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-003234 | Description: Shaft (Used on Ass'y #35-5212) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 106-235195 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-042599 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 16 | Part Number: 090-239542 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 135-008290 | Description: Control Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-982579 | Description: Scr. Soc. Hd. Cap 5/16-18NC x 5/8" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-988931 | Description: Ser. Rd. Hd. Mach. 1/4-20NC x 3/8" | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 135-008225 | Description: Control Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-042573 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 135-008282 | Description: Selector Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-993998 | Description: Scr. Drive, #4 x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 135-008274 | Description: Indicator Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-982397 | Description: Scr. Soc. Hd. Cap 1/4-20NC x 3/4" (Not Shown) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 135-051241 | Description: Hydraulic Table Bracket Sub-Ass'y | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 135-007987 | Description: Table Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 135-004984 | Description: Taper Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-984229 | Description: Scr. Soc. Hd. Set 1/4-20NC x 1/4" | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-982652 | Description: Ser. Soc. Hd. Cap 5/16-18NC x 2-1/4" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 135-007995 | Description: Hydraulic Cylinder (See Section) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 135-002988 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 135-006732 | Description: Sprocket Retainer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-990192 | Description: Ser. Oven Hd. Mach. 1/4-20NC x 3/8" | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-333104 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333112 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333120 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333138 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 090-040700 | Description: Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 135-006724 | Description: Sprocket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 135-007946 | Description: Guide Roller Bar Sub-assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-984104 | Description: Ser. Soc. Hd. Set #10-24 x 1/4" | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 135-004786 | Description: Sprocket Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 090-042433 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 106-235211 | Description: Bearing | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-980466 | Description: Ser. Hex. Hd. Cap 3/8-16NC x 1" | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 135-004992 | Description: Gear Shift | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 090-144353 | Description: Bevel Gear | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 090-042607 | Description: Roll Pin | Units Per Assembly: 3 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 48 | Part Number: 090-144346 | Description: Bevel Gear | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 090-042557 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 090-002114 | Description: Nylon Tube 3/8 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 090-002114 | Description: Nylon Tube 3/8 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 090-172479 | Description: Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-988543 | Description: Ser. Rd. Hd. Mach. #8-32NC x 1/2" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 135-007995 | Description: Hydraulic Cylinder Ass'y | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 135-004778 | Description: Rear Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-014010 | Description: Male Connector (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 090-127762 | Description: Nut, Lock | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 091-101238 | Description: U-Cup | Units Per Assembly: 2 | Availability: In Stock | Price: $3.26 |
| Index No Ref.: 57 | Part Number: 091-076463 | Description: Piston | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 091-076612 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 091-076687 | Description: Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 090-259904 | Description: Piston Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 091-982421 | Description: Scr. Soc. Hd. Cap 1/4-20 x 1" | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 62 | Part Number: 090-035593 | Description: Washer, Lock 1/4" Hi-Collor | Units Per Assembly: 12 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 63 | Part Number: 135-004653 | Description: Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 115-004661 | Description: Snap Ring | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 135-004638 | Description: Gasket | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 66 | Part Number: 090-259888 | Description: Front Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-031856 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 091-031864 | Description: Adaptor Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 091-098855 | Description: Packing Ring Fab. Chevron | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 090-310590 | Description: End Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 091-982389 | Description: Scr. Soc. Hd. Cap, 1/4-20NC x 5/8" | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 72 | Part Number: 091-408500 | Description: Scraper Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-071084 | Description: 90 Degree Male Elbow (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 091-098863 | Description: Packing Ring, Homo. Chevron | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 74 | Part Number: 091-336883 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-336891 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 75 | Part Number: 135-091767 | Description: 0-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 76 | Part Number: 090-022781 | Description: 0-Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 77 | Part Number: 091-025247 | Description: Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
