Exploded View Parts Ordering: 3613-0_278

3613-0 278 Online Parts Manual

Serial No: 278-68101 End Date 278-77825

Download PDF Version

Page Code: C-6-57

Index No Ref. Part Number Description Units Per Assembly Availability Price

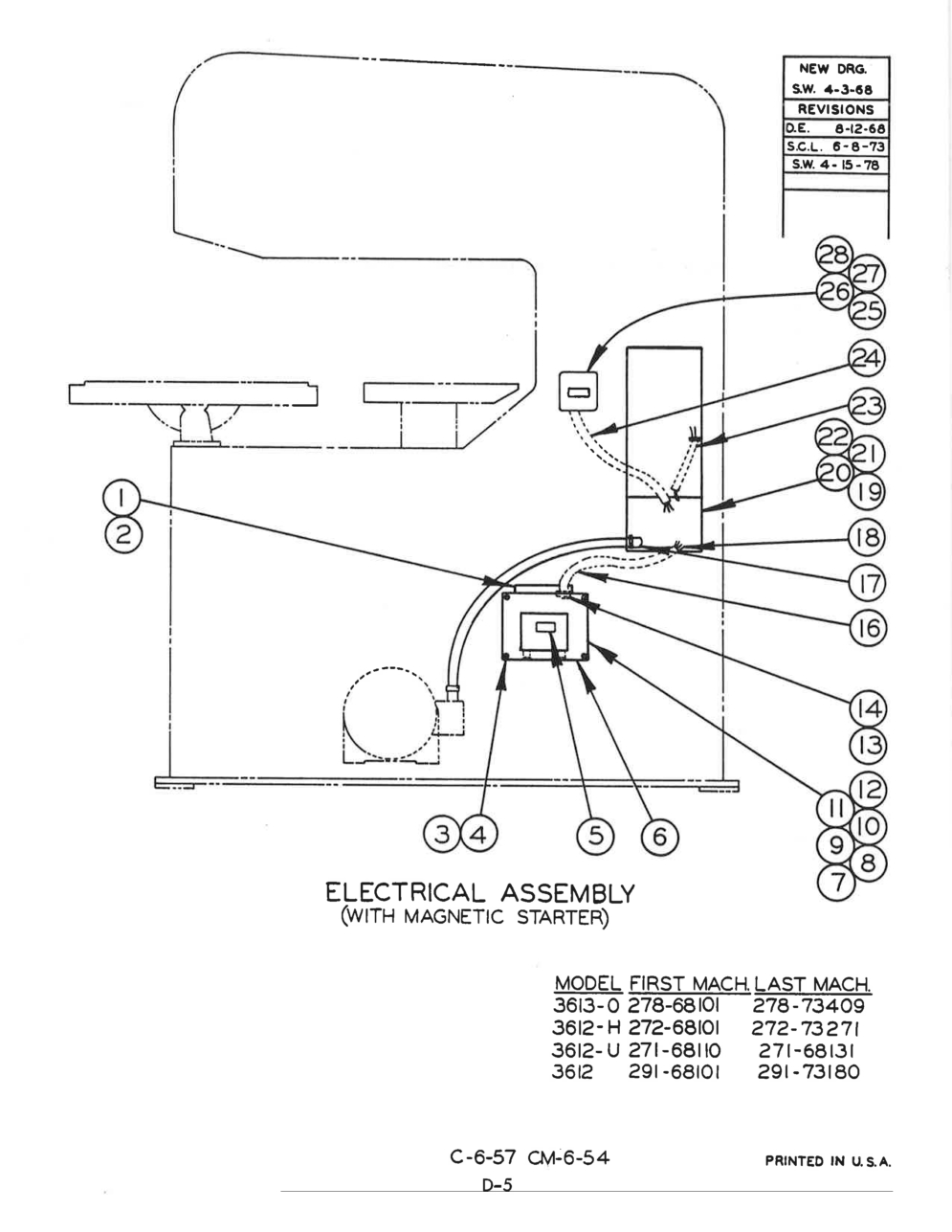

Index No Ref.: Ref. Part Number: 57431 Description: Electrical Assembly (Used only with Magnetic Starter) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: *1 Part Number: 094-016557 Description: Transformer 120V Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 090-461963 Description: Transformer 220V Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: *2 Part Number: 090-420175 Description: Transformer 380/440/550-V Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-993550 Description: Washer, Lock Shakeproof #10 Internal Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-161563 Description: Escutcheon Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-065988 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-980029 Description: Screw, Hex. Hd. Cap #10-24NC x 7/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: *8 Part Number: 091-980094 Description: Screw, Hex. Hd. Cap 1/4-20NC x 7/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: *10 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 11 Part Number: 091-991117 Description: Nut, Hex. #10-24NC Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: *12 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-047209 Description: Fusetron 250-V Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-075060 Description: Rubber Grommet Units Per Assembly: 3 Availability: In Stock Price: $9.91
Index No Ref.: 16 Part Number: 090-183427 Description: Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-096170 Description: Conduit Anchor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-195082 Description: Connector, Greenfield Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-237594 Description: Magnetic Starter (G.E. #CR106-A0-02) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-179615 Description: Magnetic Starter (G.E. #CR106-Bo-02) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-240432 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-067629 Description: Pushbutton Kit (G.E. #CR105 x 120N) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-237529 Description: Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-236034 Description: Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-195041 Description: Pushbutton Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-157652 Description: Box Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-037648 Description: Wire Connectors Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-005521 Description: Wire Markers (Brady Type) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *Note: Starred Items used only when Voltage is other than 220 Volt. Units Per Assembly: Availability: Call For Info Price:
