Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825

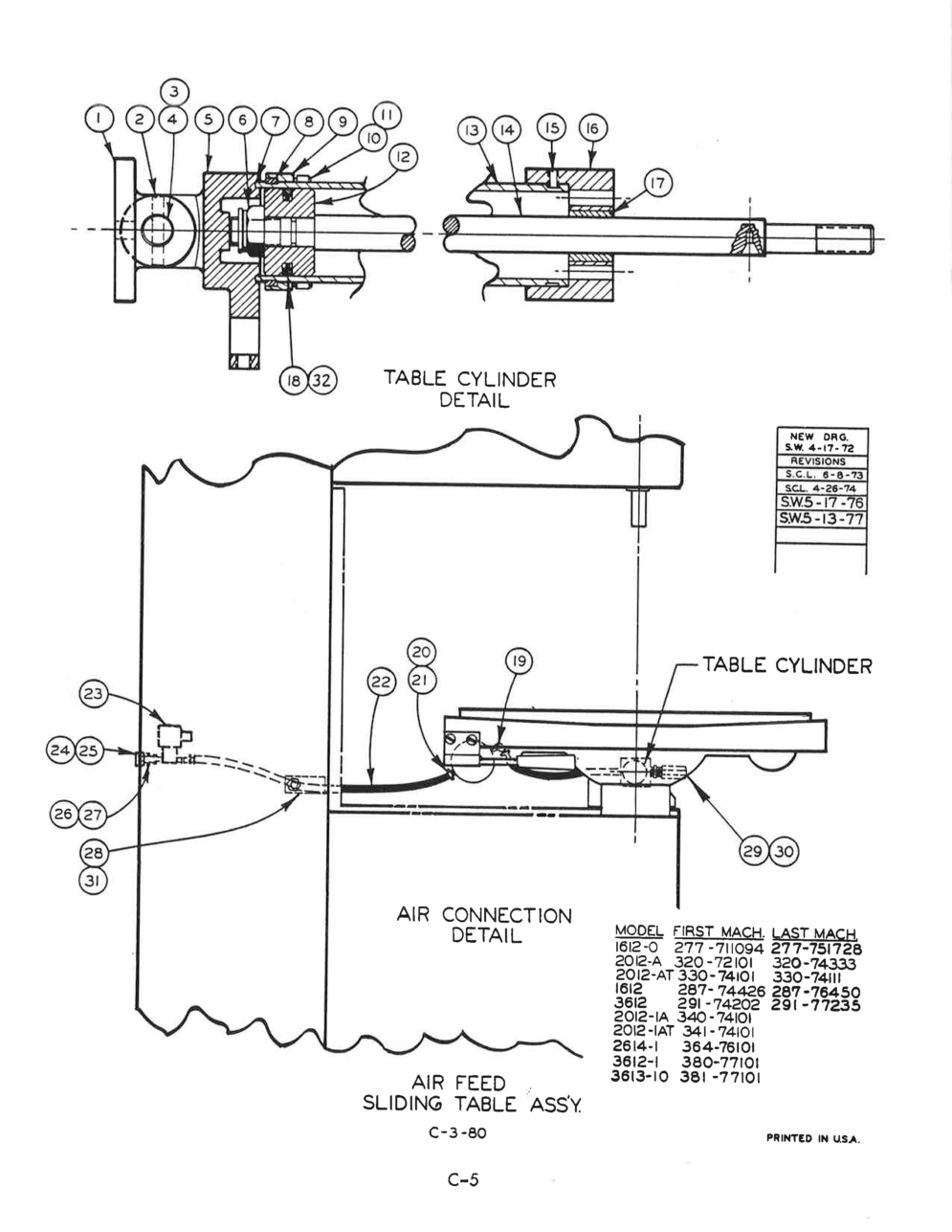

Page Code: C-3-80
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 501532 | Description: Sliding Table Assembly (1612-0, 1612, 3612, 2614-1, 3612-1, 3613-10) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 503826 | Description: Sliding Table Assembly (2012-A, 2012-1A, 2012-AT, 2012-1AT) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 094-033206 | Description: Table Cylinder Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-215948 | Description: Swivel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-042615 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 3 | Part Number: 135-008910 | Description: Shim | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-051301 | Description: Swivel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-256553 | Description: Rear Cylinder Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-127762 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 135-004638 | Description: Cylinder Gasket | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 8 | Part Number: 135-004661 | Description: Snap Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-004653 | Description: Cylinder Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 090-035593 | Description: Washer, Lock 1/4-Hi-Collar | Units Per Assembly: 4 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 091-256859 | Description: Piston | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-278218 | Description: Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 093-023273 | Description: Piston Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-154278 | Description: Screw, Soc. Set Self-Locking | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-004687 | Description: End Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-051236 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.74 |
| Index No Ref.: 18 | Part Number: 091-277749 | Description: Seal Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 117-135210 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-044784 | Description: Hose Clamp (#501532) | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-068880 | Description: Hose Clamp (#503826) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-020041 | Description: Barbed Insert | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-000035 | Description: Hose 3/8 O.D. (#501532) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-000084 | Description: Hose5/8 O.D. (#503826) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: *23 | Part Number: 091-194019 | Description: Solenoid Valve 120V 60 Hz | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-194043 | Description: Solenoid Valve 240V 60 Hz | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-194084 | Description: Solenoid Valve 380V 60 Hz | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-194076 | Description: Solenoid Valve 480V 60 Hz | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: *24 | Part Number: 091-256735 | Description: Bulkhead Adapter | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *25 | Part Number: 114-035074 | Description: Close Nipple | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: *26 | Part Number: 090-038183 | Description: Reducing Coupling | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: *27 | Part Number: 114-145287 | Description: Close Nipple | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: *28 | Part Number: 091-281485 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *29 | Part Number: 091-059964 | Description: Reducer Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *30 | Part Number: 093-034171 | Description: Orifice | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *31 | Part Number: 091-203695 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-029181 | Description: Oil Lubricator (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-128066 | Description: "O"-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Starred Items Used Only On Assembly #501532. | Units Per Assembly: | Availability: Call For Info | Price: |
