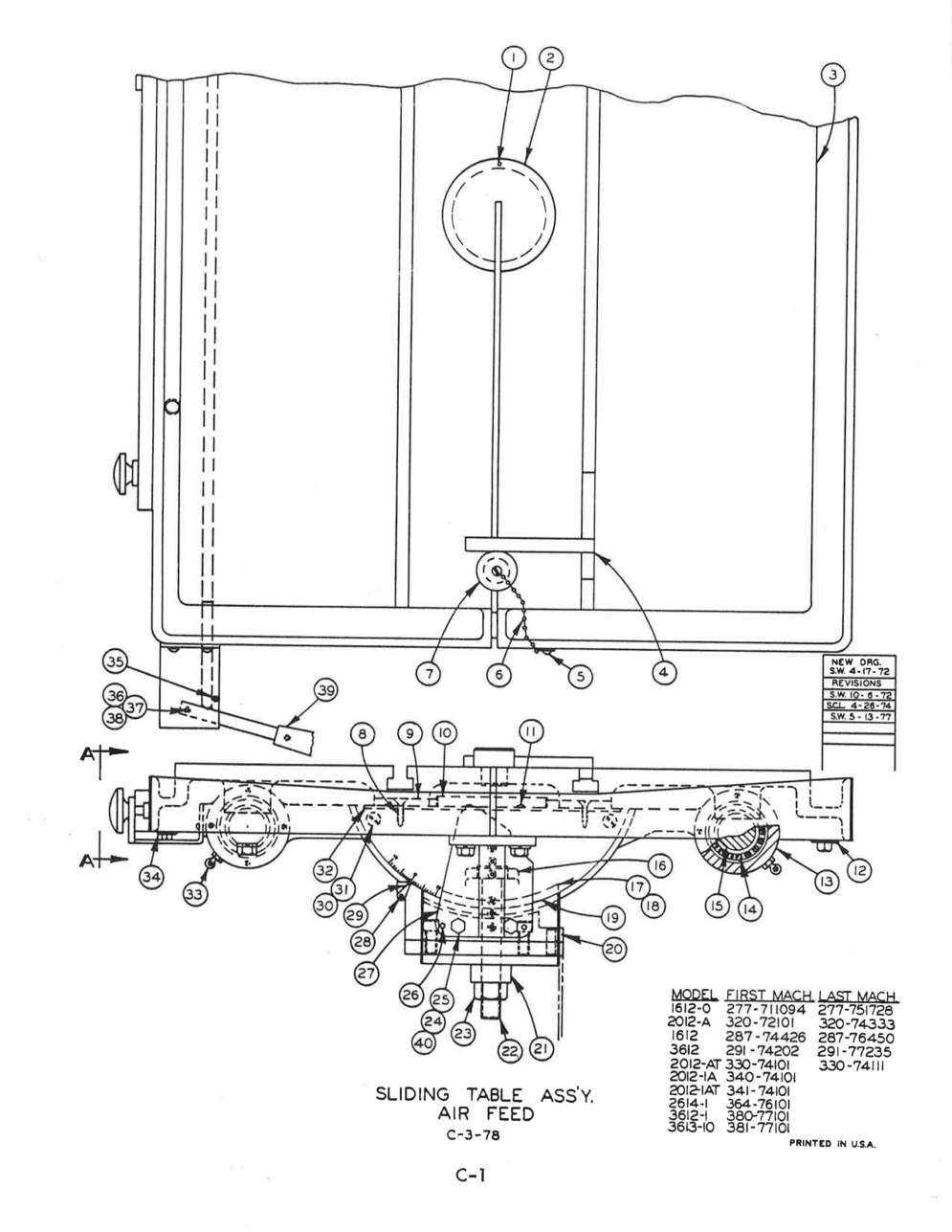

Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825
Page Code: C-3-78
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 501532 | Description: Sliding Table Assembly (1612-0, 1612, 3612, 2614-1, 3612-1, 3613-10) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 503826 | Description: Sliding Table Assembly (2012-A, 2012-1A, 2012-AT, 2012-1AT) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-042094 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 2 | Part Number: 090-104902 | Description: Center Plate | Units Per Assembly: 1 | Availability: In Stock | Price: $108.83 |
| Index No Ref.: 3 | Part Number: 095-013801 | Description: Table | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-253617 | Description: Square Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-988519 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-295907 | Description: Chain | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-253930 | Description: Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-990192 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 095-030458 | Description: Pan | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 135-065803 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-507914 | Description: Trunnion | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-036476 | Description: Ball Bushing | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-051806 | Description: Spacer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-394644 | Description: Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-410937 | Description: Chip Guard Assembly (#501532) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-450800 | Description: Chip Cover Assembly (#501532) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-216219 | Description: Trunnion Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 090-409038 | Description: Cradle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-105016 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-981068 | Description: Screw, Hex. Hd. Cap 3/4-16NF x 5 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-991414 | Description: Nut, Hex. 3/4-16NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-980474 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 135-003283 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 090-242413 | Description: Keeper Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-988386 | Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4" | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 134-033158 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-988931 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 (#501532) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-988220 | Description: Screw, Pan Hd. Mach. 1/4-20NC x 3/8 (#503826) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-993568 | Description: Washer, Lock 1/4 Shakeproof Int. | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 090-342122 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 090-087909 | Description: Lube Fitting 90 Degree | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 106-335185 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 090-042441 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-046326 | Description: Belleville Washer | Units Per Assembly: 6 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 37 | Part Number: 091-982520 | Description: Screw, Soc. Hd. Cap 1/4-28NF x 1-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-156604 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-310110 | Description: Handle Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-992644 | Description: Washer, Flat 3/8 Std. S.A E | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: Following Items Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-319483 | Description: Guard Assembly (#503826) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-055091 | Description: Pipe Plug (#503826) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-285271 | Description: Handle Assembly | Units Per Assembly: 1 | Availability: In Stock | Price: $162.14 |
| Index No Ref.: | Part Number: 091-294470 | Description: Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
