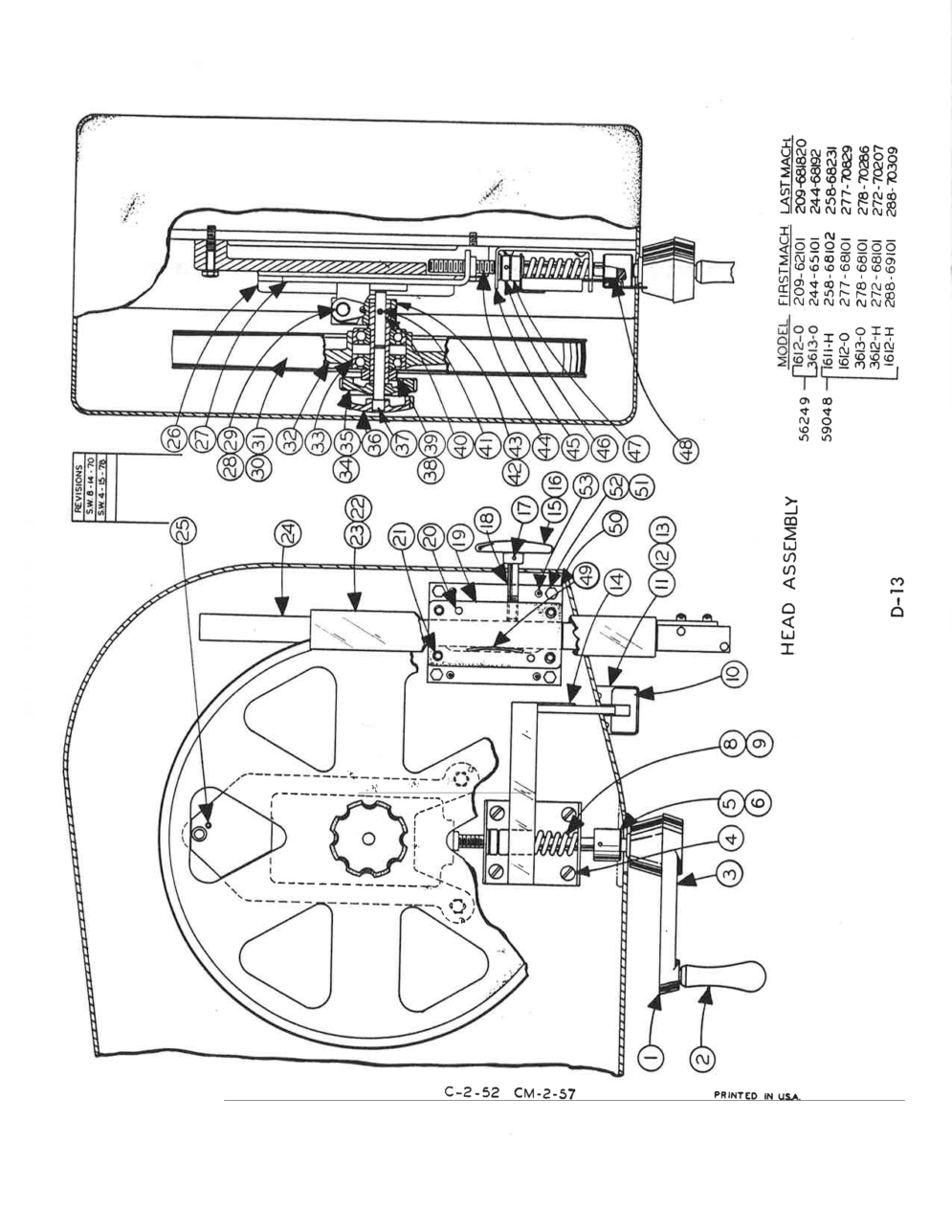

Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825
Page Code: C-2-52
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 59048 | Description: Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 56249 | Description: Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-285271 | Description: Handle Assembly | Units Per Assembly: 1 | Availability: In Stock | Price: $162.14 |
| Index No Ref.: 2 | Part Number: 134-055136 | Description: Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-453309 | Description: Handle Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-990226 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 7 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: *5 | Part Number: 091-003970 | Description: Adaptor | Units Per Assembly: 1 | Availability: In Stock | Price: $68.54 |
| Index No Ref.: *6 | Part Number: 090-042615 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 8 | Part Number: 135-087617 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-992669 | Description: Washer, 1/2" Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 091-177378 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-069195 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-988535 | Description: Screw, Rd. Hd. Mach. 8-32NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-993188 | Description: Washer, Lock #8 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-322041 | Description: Pointer Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-069203 | Description: Lock Screw Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-051319 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-042292 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 18 | Part Number: 091-069211 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-322033 | Description: Post Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 135-033587 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-980136 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1 3/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-278417 | Description: Post Guard Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-986984 | Description: Screw, Fil. Hd. Mach. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-277153 | Description: Post | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-042375 | Description: Roll Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-562463 | Description: Head Casting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 094-018157 | Description: Slide Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-206276 | Description: Pin Retainer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 135-096139 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 30 | Part Number: 135-051274 | Description: Upper Saw Wheel Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 135-022705 | Description: Wheel Tire | Units Per Assembly: 1 | Availability: In Stock | Price: $57.63 |
| Index No Ref.: 32 | Part Number: 135-022648 | Description: Upper Saw Wheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 105-015085 | Description: Upper Wheel Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $24.52 |
| Index No Ref.: 34 | Part Number: 090-387150 | Description: Wheel Hinge Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 105-011092 | Description: Tilting Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 105-011084 | Description: Tilting Screw Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-206268 | Description: Tilting Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 105-015069 | Description: Nut, Lock | Units Per Assembly: 1 | Availability: In Stock | Price: $5.17 |
| Index No Ref.: 39 | Part Number: 105-015077 | Description: Washer, Lock | Units Per Assembly: 1 | Availability: In Stock | Price: $1.67 |
| Index No Ref.: 40 | Part Number: 105-014245 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-984245 | Description: Screw, Soc. Set 1/4-20NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 135-038529 | Description: Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-206243 | Description: Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *44 | Part Number: 091-177113 | Description: Screw | Units Per Assembly: 1 | Availability: In Stock | Price: $114.66 |
| Index No Ref.: 45 | Part Number: 090-322058 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *46 | Part Number: 134-054105 | Description: Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 135-028108 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *48 | Part Number: 090-073511 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 105-013064 | Description: Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-186908 | Description: Adjustment Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-982819 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-188656 | Description: Screw, Nyloc Soc. Set 5/16-18NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Starred Items #5, 6, 44, 46 & 48 are part of tension Shaft Sub-Assembly #091-181198. | Units Per Assembly: | Availability: Call For Info | Price: |
