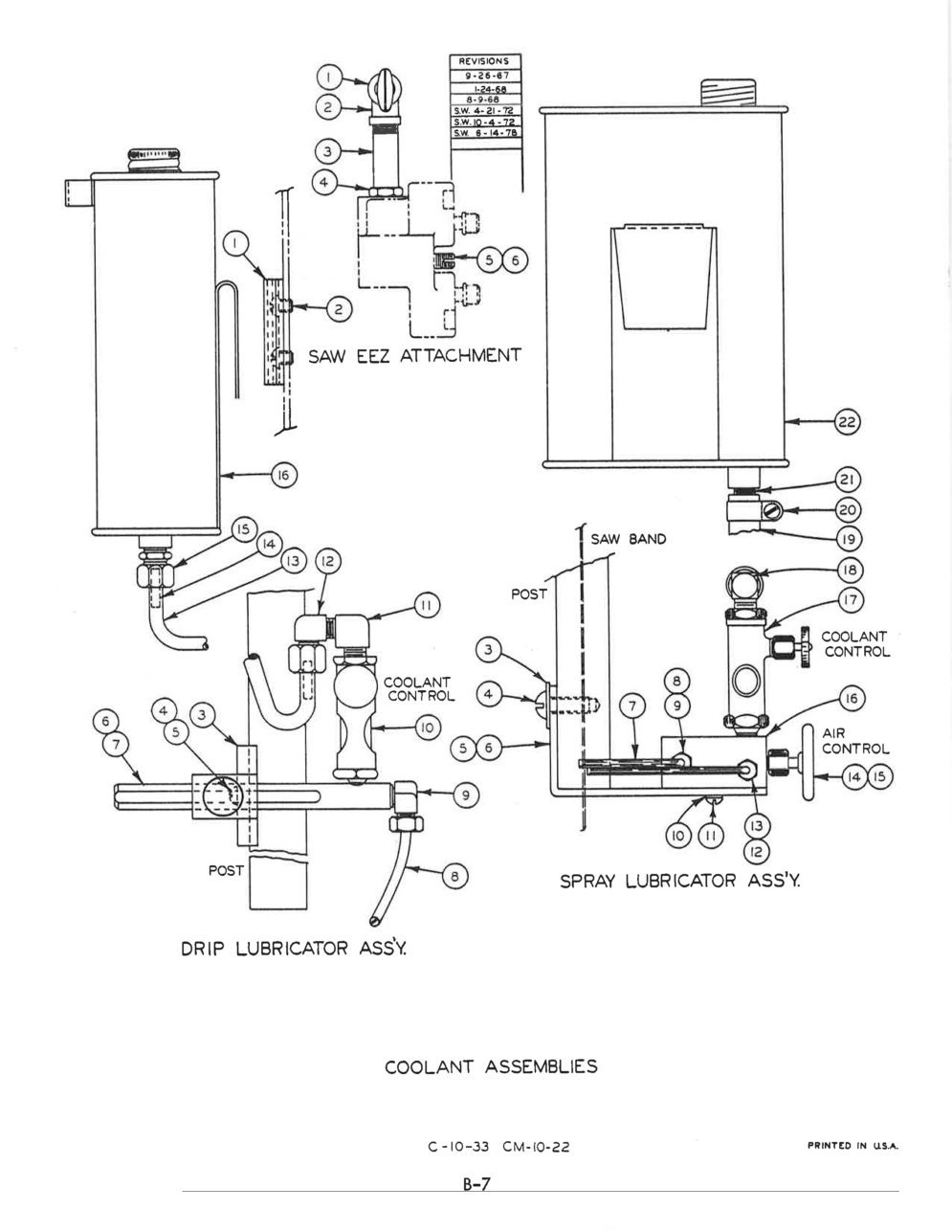

Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825
Page Code: C-10-33
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 135-073286 | Description: Saw Lubricator Assembly (Drip) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 105-273049 | Description: Holder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988907 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 135-073294 | Description: Post Holder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-988691 | Description: Screw, Rd. Hd. Mach. 10-24NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-993196 | Description: Washer, Lock #10Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 135-052462 | Description: Saw Lubricator Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-213108 | Description: Adjustable Slide Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 105-273015 | Description: Tubing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-140632 | Description: 90 Degree Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 105-275077 | Description: Sight Feed Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 105-045207 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-002213 | Description: Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 135-021392 | Description: Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-014002 | Description: Male Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 094-027513 | Description: Tank Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 135-068864 | Description: Spray Lubricator Assembly (Spray) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 105-273049 | Description: Holder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988907 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-992628 | Description: Washer 5/16" Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-989061 | Description: Screw, Rd. Hd. Mach. 5/16-18NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-406901 | Description: Spray Lubricator Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 135-068906 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 135-068930 | Description: Spray Tube Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-144460 | Description: Compression Sleeve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-148255 | Description: Compression Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-993196 | Description: Washer, Lock #10 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 135-068989 | Description: Compression Sleeve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 135-068997 | Description: Compression Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 135-068914 | Description: Globe Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 114-006059 | Description: Long Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 135-068922 | Description: Spray Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 105-275077 | Description: Sight Feed Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-081166 | Description: 90 Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-002213 | Description: Neoprene Hose 1/4" I.D. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 135-068880 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 135-068872 | Description: Long Nipple | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 094-027513 | Description: Tank Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-310442 | Description: Saw Eez Attachment | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-081495 | Description: Saw Eez Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 135-036473 | Description: Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 135-013514 | Description: Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 107-015104 | Description: Pipe Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 135-004554 | Description: Saw Lubricator Pin (For Bands 5/8" to 1") | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 135-004513 | Description: Saw Lubricator Pin (For Bands 1/16" to 1/2") | Units Per Assembly: One | Availability: In Stock | Price: $54.97 |
