Exploded View Parts Ordering: 3613-0_278
3613-0 278 Online Parts Manual
Serial No: 278-68101 End Date 278-77825
Page Code: C-10-32
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

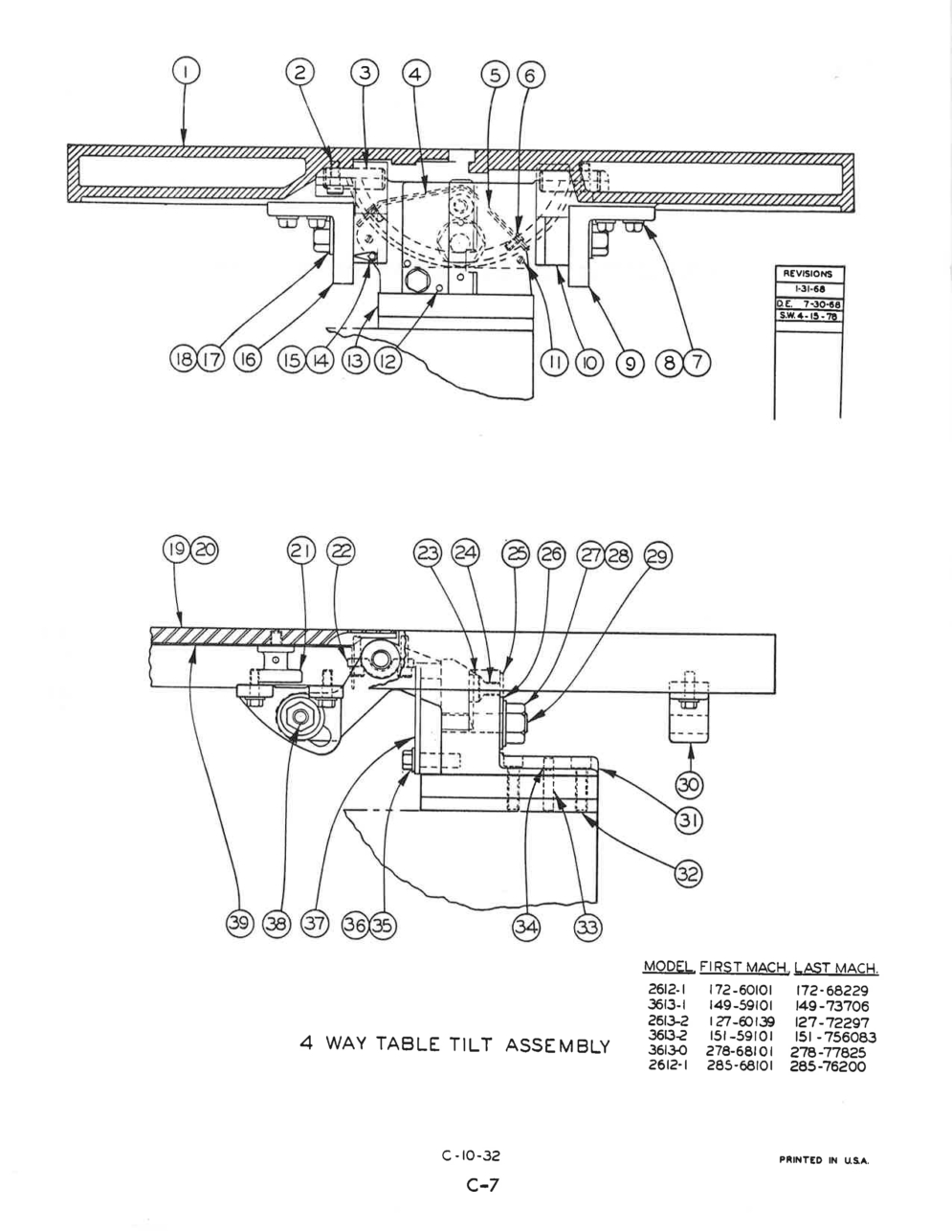

| Index No Ref.: Ref. | Part Number: 54592 | Description: 4-Way Table Tilt Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 111-031050 | Description: Table | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 134-034230 | Description: Axis Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 111-033056 | Description: Wiper | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 111-033080 | Description: Wiper Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-993998 | Description: Drive Screw #4 x1/4" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-992644 | Description: Washer 3/8" Std | Units Per Assembly: 10 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x1 | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 111-031035 | Description: Secondary Trunnion Spec | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 111-031100 | Description: Trunnion | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-988956 | Description: Screw, Rd. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 135-003283 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-279779 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-988386 | Description: Screw, Rd. Hd. Cap 6-32NC x 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 134-033158 | Description: Tilt Indicator Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 103-031167 | Description: Secondary Trunnion Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 134-034065 | Description: Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-991356 | Description: Nut, Hex. 5/8-11NC Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-367780 | Description: Filler Plate Sawing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 135-073211 | Description: Filler Plate Filing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 105-030050 | Description: Handwheel Assembly | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 134-033059 | Description: Bearing Cap | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 111-034054 | Description: Adjustment Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 111-035028 | Description: Screw, Soc. Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 111-033064 | Description: Protractor Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 111-033072 | Description: Trunnion Protractor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-991414 | Description: Nut, Hex. 3/4-16NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 111-034039 | Description: Trunnion Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 111-034021 | Description: Stud 3/4" x 3 1/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 111-031118 | Description: Wrench Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 111-031092 | Description: Trunnion Cradle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-982967 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 135-004455 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 090-059189 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 134-134022 | Description: Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-980680 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 13/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-001172 | Description: Keeper Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 134-034057 | Description: Stud | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 134-033166 | Description: Filler Plate Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Items Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: 40 | Part Number: 091-020115 | Description: Trunnion Wrench Socket 1" | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 134-035021 | Description: Trunnion Wrench Extension | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 134-035021 | Description: Trunnion Wrench Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-027391 | Description: Trunnion Wrench Socket 11/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-027433 | Description: Spacer on Secondary Table (3613-1 & 3613-2) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
