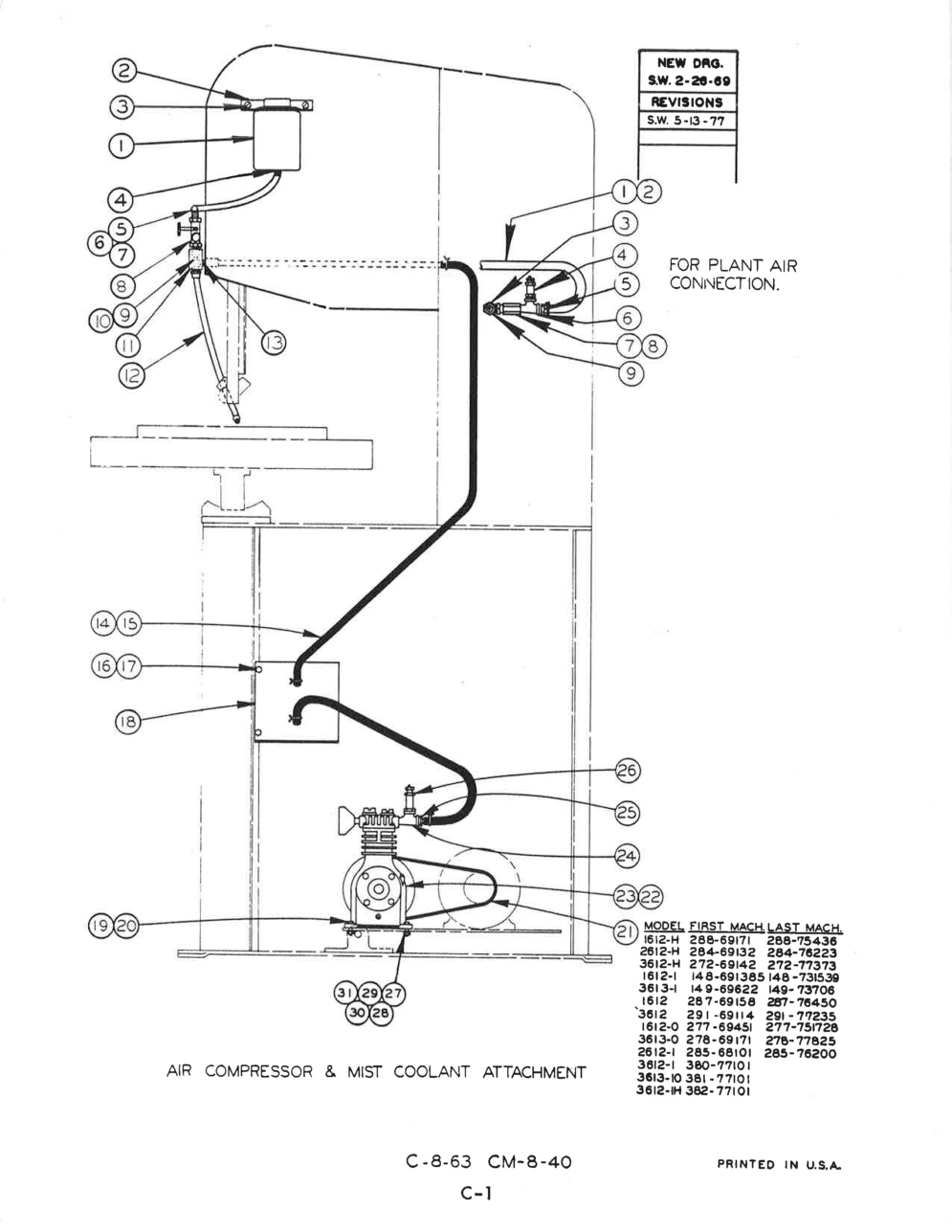

Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-8-63
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 500190 | Description: Air Compressor & Mist Coolant Attach. (2612-H, 50 Hertz Operation) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 500183 | Description: Air Compressor & Mist Coolant Attach. (1612-H, 3612-H, 1612, 3612, 1612-0, 3613-0) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 500666 | Description: Air Compressor & Mist Coolant Attach. (2612-1, 2612-H) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 504166 | Description: Air Compressor & Mist Coolant Attach. (3612, 3612-H)(50 Cycle) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: *1 | Part Number: 091-369181 | Description: Bottle Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 093-039568 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-988931 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-381245 | Description: Coolant Manifold Assembly (For Standard Mach.) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-385121 | Description: Coolant Manifold Assembly (For Extra Work Height) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-002114 | Description: Hose 1/4 I.D. x 3/8 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 105-275077 | Description: Sight Feed Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-199778 | Description: Coolant Tube Sub-Ass'y (For Standard Machine) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-199117 | Description: Coolant Tube Sub-Ass'y (For Extra Work Height) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-199109 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-040973 | Description: Air Hose 22" (For Standard Mach.) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-060732 | Description: Air Hose 26" (For Extra Work Height) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 114-145287 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-000035 | Description: Hose | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-179029 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-980250 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-993238 | Description: Washer, Lock 5/16" Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-374901 | Description: Air Dome Sub-Assembly (Use on Ass'y #500190) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-389347 | Description: Air Dome Sub-Assembly (Use on Ass'y #500183, #500666, #504166) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980276 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-991224 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 105-115026 | Description: V-Belt (Use on Ass'y #500190) | Units Per Assembly: USE | Availability: In Stock | Price: $17.91 |
| Index No Ref.: | Part Number: 135-023083 | Description: V-Belt (Use on Ass'y #500183) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-024164 | Description: V-Belt (Use on Ass'y #500666) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-003408 | Description: V-Belt (Use on Ass'y #500666) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-039546 | Description: V-Belt (Use on Ass'y #504166) (50 Cycle) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-372699 | Description: Air Compressor Sub-Ass'y (Use on Ass'y #500190) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-389339 | Description: Air Compressor Sub-Ass'y (Use on Ass'y #500183) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 094-008356 | Description: Air Compressor Sub-Ass'y (Use on 090-372699) (See Detail) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-019577 | Description: Air Compressor Sub-Ass'y (Use on 090-389339) (See Detail) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 135-008472 | Description: Service Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-020041 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-180885 | Description: Safety Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-980342 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 2-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-980276 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-992628 | Description: Washer 5/16 S.A.E | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-211607 | Description: Spacer | Units Per Assembly: 2 | Availability: In Stock | Price: $26.82 |
| Index No Ref.: 31 | Part Number: 091-211615 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 503546 | Description: Mist Coolant Attachment (Plant Air) (1612, 3612, 1612-0, 3613-0, 2612-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-000035 | Description: Hose 5/8 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-179029 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-256735 | Description: Bulk Head Adapter | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-180885 | Description: Safety Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-020041 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 135-008472 | Description: Service Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 093-034171 | Description: Orifice | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 114-145287 | Description: Close Nipple | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 105-046122 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: To Replace other preceding style coolant tanks, metal or plastic, order 090-851577 Coolant Tank Service Kit. | Units Per Assembly: | Availability: Call For Info | Price: |
