Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-7-19
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

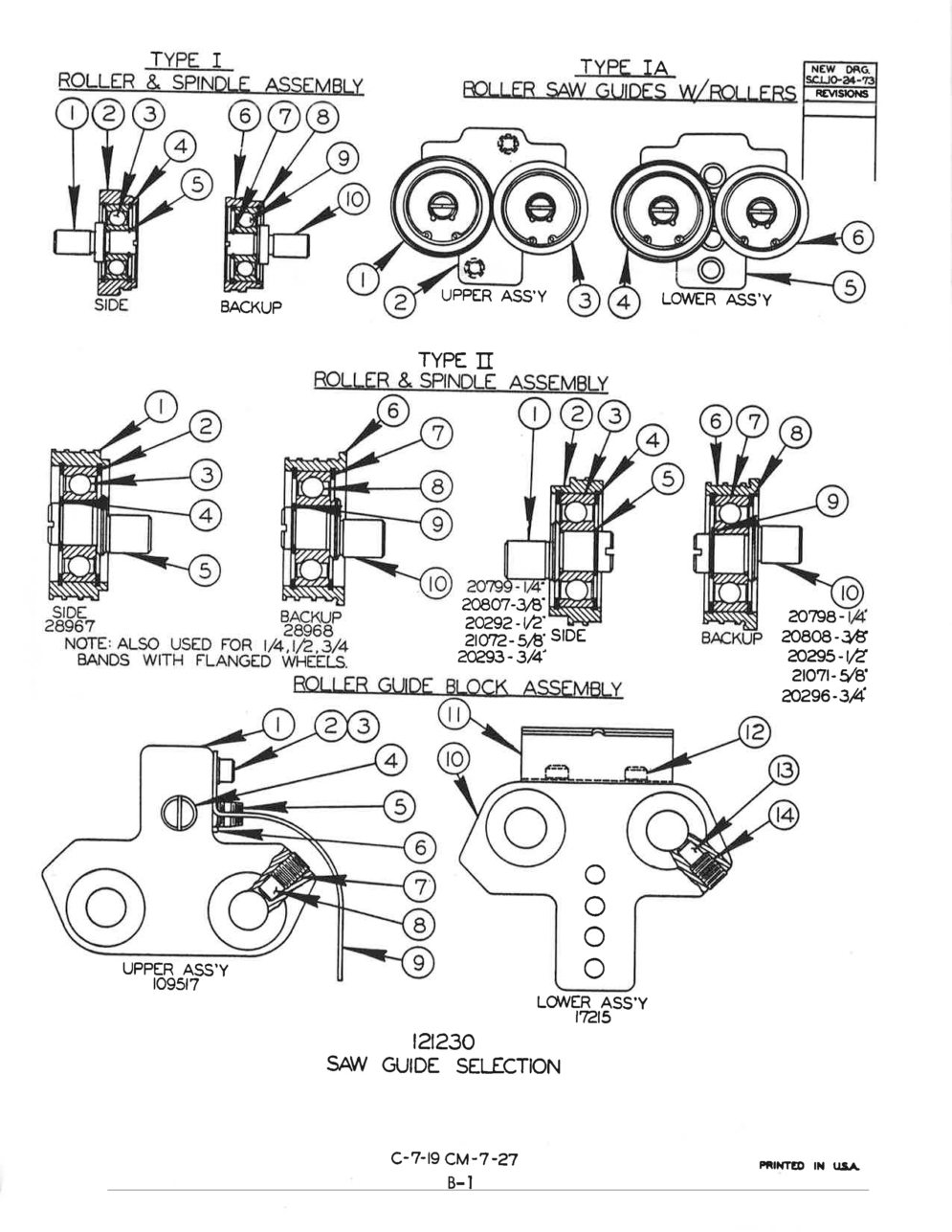

| Index No Ref.: | Part Number: | Description: TYPE I - ROLLER AND SPINDLE ASSEMBLY | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289844 | Description: Roller Sub-Assembly 1/4" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289802 | Description: Roller Sub-Assembly 3/8" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289745 | Description: Roller Sub-Assembly 1/2" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-182965 | Description: Bearing Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-289851 | Description: Roller 1/4" | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289810 | Description: Roller 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289752 | Description: Roller 1/2" | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-115296 | Description: Bearing (N.D. Z99500XRIE) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 4 | Part Number: 091-000463 | Description: Internal Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.31 |
| Index No Ref.: 5 | Part Number: 090-115411 | Description: Snap Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: REF. | Part Number: 090-289828 | Description: Flanged Roller Sub-Assembly 1/4" Backup | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289786 | Description: Flanged Roller Sub-Assembly 3/8" Backup | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289760 | Description: Flanged Roller Sub-Assembly 1/2" Backup | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-289836 | Description: Flanged Roller 1/4" | Units Per Assembly: Use | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 090-289794 | Description: Flanged Roller 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289778 | Description: Flanged Roller 1/2" | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-115411 | Description: Snap Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 8 | Part Number: 091-000463 | Description: Internal Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.31 |
| Index No Ref.: 9 | Part Number: 090-115296 | Description: Bearing (N.D. Z99500XRIE) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 10 | Part Number: 090-182965 | Description: Bearing Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: TYPE IA - ROLLER SAW GUIDES WITH ROLLERS | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292566 | Description: Upper Roller Sow Guide Assembly 1/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292582 | Description: Upper Roller Saw Guide Assembly 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-295064 | Description: Upper Roller Saw Guide Assembly 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: Ref. | Description: Select flanged backup roller sub-ass'y from type 1 detail and parts list. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-289604 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: Ref. | Description: Select side roller sub-ass'y from type 1 detail and parts list. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982397 | Description: Ser., Soc. Hd. Cap 1/4-20NC x 3/4 (Not Shown) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. (Not Shown) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: REF. | Part Number: 090-292574 | Description: Lower Roller Saw Guide Ass'y 1/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292590 | Description: Lower Roller Saw Guide Ass'y 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-295056 | Description: Lower Roller Saw Guide Ass'y 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: Ref. | Description: Select flanged backup roller sub-ass'y from type 1 detail and parts list. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-289612 | Description: Lower Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: Ref. | Description: Select side roller sub-ass'y from type 1 detail and parts list. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982397 | Description: Scr., Soc. Hd. Cap 1/4-20NC x 3/4 (Not Shown) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: TYPE II - ROLLER AND SPINDLE ASSEMBLY | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289679 | Description: Side Roller Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-007583 | Description: Guide Roller 1" | Units Per Assembly: 1 | Availability: In Stock | Price: $289.41 |
| Index No Ref.: 2 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 3 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289687 | Description: Backup Roller Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-007583 | Description: Guide Roller 1" | Units Per Assembly: 1 | Availability: In Stock | Price: $289.41 |
| Index No Ref.: 7 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 8 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-207994 | Description: Guide Roller Ass'y 1/4" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-208075 | Description: Guide Roller Ass'y 3/8" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-202920 | Description: Guide Roller Ass'y 1/2" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-210725 | Description: Guide Roller Ass'y 5/8" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-202938 | Description: Guide Roller Ass'y 3/4" Side | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-135310 | Description: Guide Roller 1/4" | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135401 | Description: Guide Roller 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135336 | Description: Guide Roller 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135427 | Description: Guide Roller 5/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135351 | Description: Guide Roller 3/4" | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 5 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-207986 | Description: Backup Roller Guide Ass'y 1/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-208083 | Description: Backup Roller Guide Ass'y 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-202953 | Description: Backup Roller Guide Ass'y 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-210717 | Description: Backup Roller Guide Ass'y 5/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-202961 | Description: Backup Roller Guide Ass'y 3/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-135328 | Description: Backup Roller 1/4" | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135419 | Description: Backup Roller 3/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135344 | Description: Backup Roller 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135435 | Description: Backup Roller 5/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135369 | Description: Backup Roller 3/4" | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 9 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Roller Guide Block Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-095174 | Description: Upper Guide Sub-Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-335175 | Description: Upper Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982363 | Description: Scr., Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 090-335092 | Description: Coolant Nozzle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 114-145287 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 107-0151045 | Description: Hex. Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-984484 | Description: Scr., Soc. Hd. Set 3/8-16NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-017419 | Description: Plug | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-336363 | Description: Coolant Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Cloth Bag (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-172156 | Description: Lower Guide Sub-Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-277435 | Description: Lower Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-021403 | Description: Chip Deflector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-982355 | Description: Scr., Soc. Hd. Cap 1/4-20NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 090-017419 | Description: Plug | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-984492 | Description: Scr., Soc. Hd. Set 3/8-16NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
