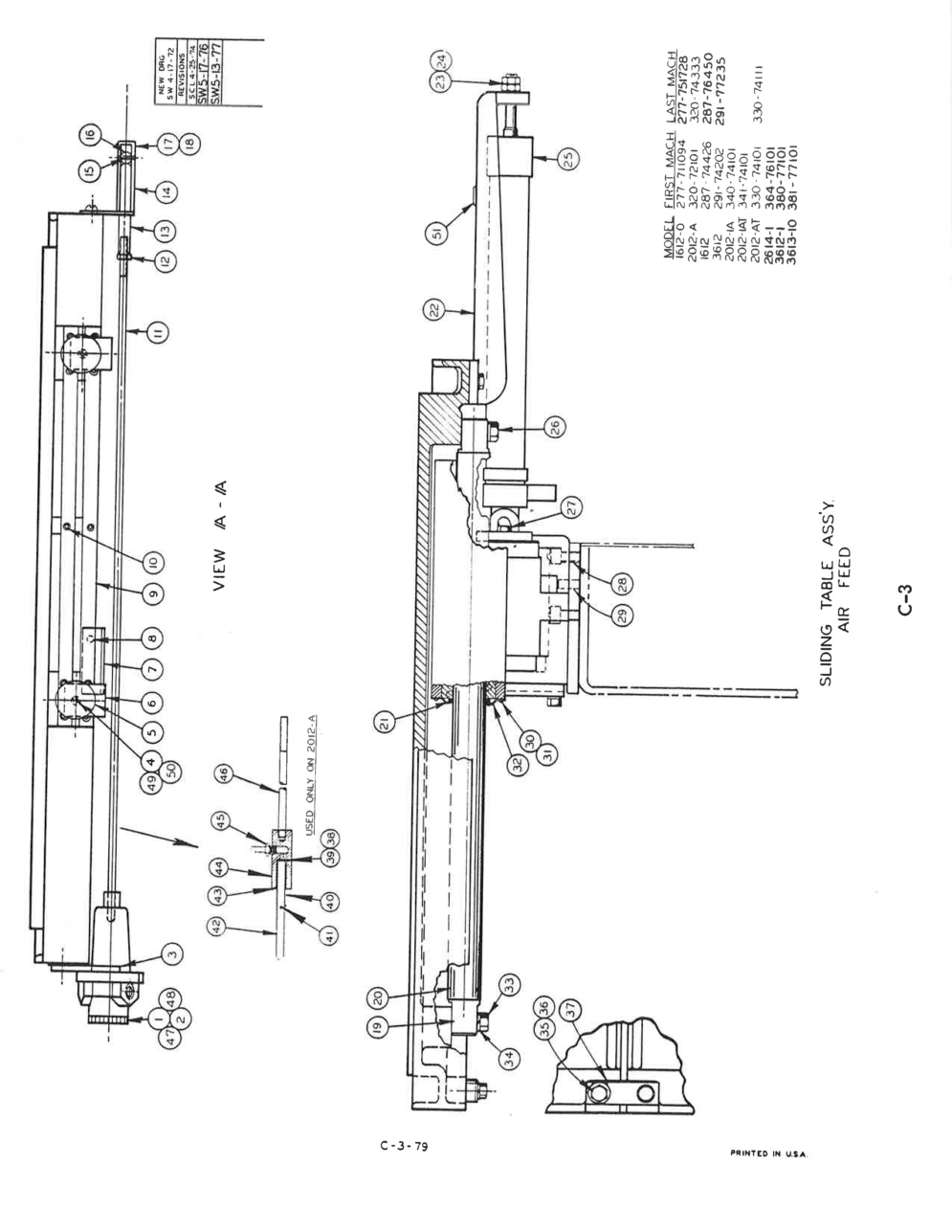

Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-3-79
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 501532 | Description: Sliding Table Assembly (1612-0, 1612, 3612, 2614-1, 3612-1, 3613-10) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 503826 | Description: Sliding Table Assembly (2012-A, 2012-1A, 2012-AT, 2012-1AT) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-256743 | Description: Regulating Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-987107 | Description: Screw, Fil. Hd. Mach. #12-24NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-253864 | Description: Mounting Plate (#503826) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-093923 | Description: T-Bolt | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-149097 | Description: Knob | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-095043 | Description: Dog | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-095035 | Description: Stop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-988956 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 090-239674 | Description: Slide Bar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-982215 | Description: Screw, Soc. Hd. Mach. #10-24NC x 5/8 | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-253872 | Description: Actuator Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-253880 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-253898 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-042557 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-253922 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-181164 | Description: Tapered Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $50.38 |
| Index No Ref.: 18 | Part Number: 090-042425 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-333104 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333112 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333120 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333138 | Description: Shim | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 090-216128 | Description: Guide Rod | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 09C-051772 | Description: Scraper Ring | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 094-045465 | Description: Cylinder Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-193649 | Description: Grip Ring (#501532) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-991349 | Description: Nut, Hex. Jam 1/2-20NC (#503826) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 094-033206 | Description: Table Cylinder Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-980276 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-982918 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 134-134071 | Description: Dowel Pin (#501532) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-163510 | Description: Dowel Pin (#503826) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-993196 | Description: Washer, Lock #10 Std. | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-988659 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 090-051764 | Description: Retainer | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-980698 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-992644 | Description: Washer 3/8 Std. | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 37 | Part Number: 090-045998 | Description: Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-013712 | Description: Release Valve Assembly (2012-A Only) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-282319 | Description: Seal Disc | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 134-015031 | Description: Adhesive | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 090-017906 | Description: Spring | Units Per Assembly: 1 | Availability: In Stock | Price: $29.53 |
| Index No Ref.: 41 | Part Number: 090-042151 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-282152 | Description: Plunger | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 114-065535 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 093-013720 | Description: Valve Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-282160 | Description: Actuator Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-980094 | Description: Screw, Hex. Hd. Mach. 1/4-20NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-227488 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 091-982181 | Description: Screw, Soc. Hd. Cap #10-24NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-991224 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 090-062910 | Description: Plug Button | Units Per Assembly: 1 | Availability: Call For Info | Price: |
