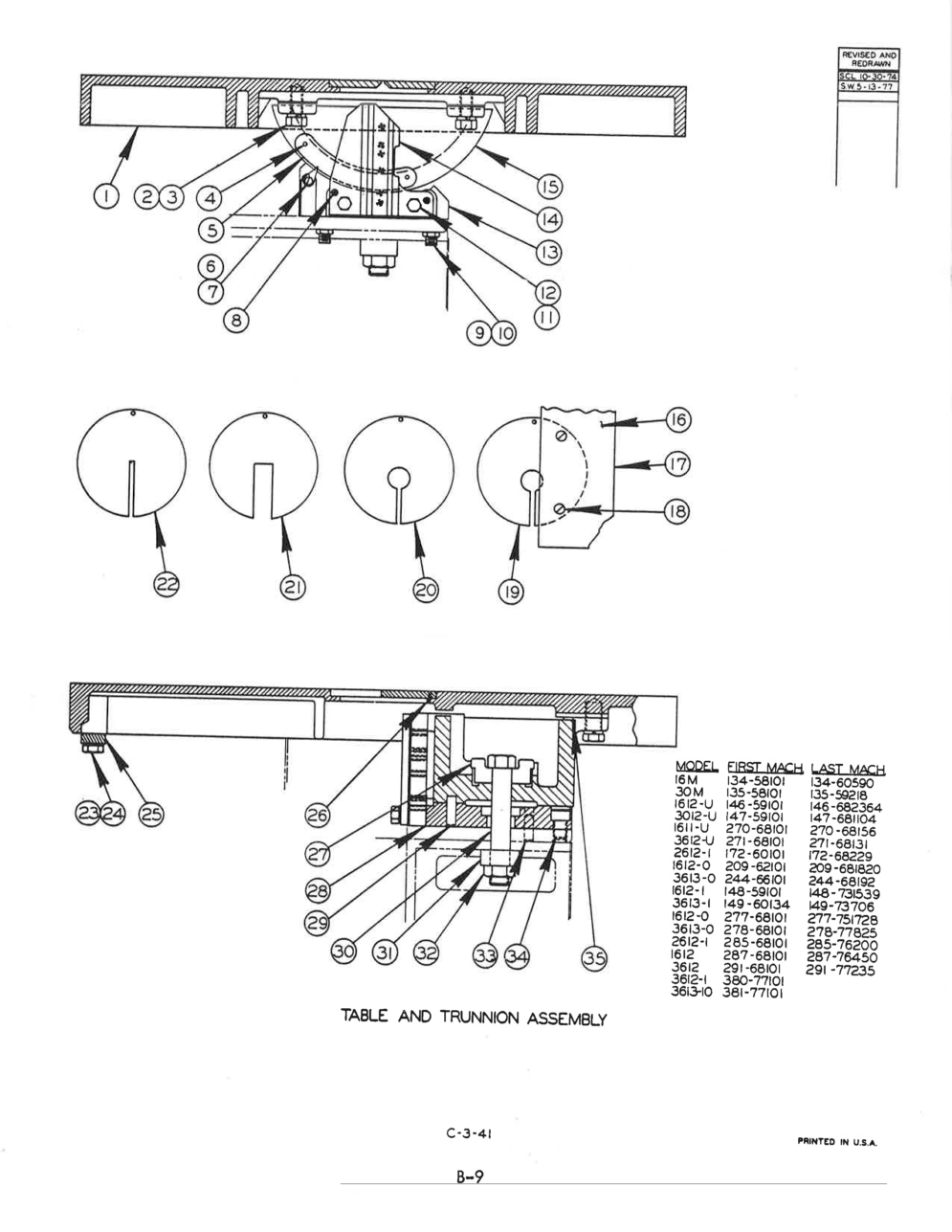

Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-3-41
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: REF. | Part Number: 090-524356 | Description: Table And Trunnion Assembly (16M & 30M ,1611-U, 3012-U, 1612-U, 3612-U, 1612-0, 3613-0, 1612, 3612, 3612-1, 3613-10) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-549353 | Description: Table And Trunnion Assembly (1612-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-553066 | Description: Table And Trunnion Assembly (2612-1, 3613-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-598624 | Description: Table And Trunnion Assembly (2612-1, 3613-1) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 090-541855 | Description: Table (24" x 24" Specify Size) | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-553033 | Description: Table (26" x 26" Specify Size) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-598269 | Description: Table (30" x 30" Specify Size) | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980656 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993774 | Description: Washer, Lock 1/2" Shakeproof Ext. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-994012 | Description: Screw, Rd. Hd. Drive PK #6 x 3/8 Type "U" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-038613 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 134-033158 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-988378 | Description: Screw, Rd. Hd. Mach. #6-32NC x 3/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 135-005163 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-985788 | Description: Screw, Soc. Set 3/8-16NC x 3/4 Flat Point (090-524356 Only) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-991273 | Description: Nut, Jam 3/8-16NF (090-524356 Only) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-980458 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 (090-524356 Only) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-980474 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 11/4 (090-549353, 090-598624 Only) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-406497 | Description: Cradle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-242447 | Description: Lower Post Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-406455 | Description: Trunnion | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *16 | Part Number: 090-076456 | Description: Small Parts Filing Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *17 | Part Number: 090-120460 | Description: Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *18 | Part Number: 091-987487 | Description: Screw, Flat Hd. Cap #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: *19 | Part Number: 090-120452 | Description: Center Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *20 | Part Number: 090-106279 | Description: Center Plate (Used on Band Filing Assembly) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *21 | Part Number: 090-105701 | Description: Center Plate (Used on Band Polishing Assembly) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-104902 | Description: Center Plate | Units Per Assembly: 1 | Availability: In Stock | Price: $108.83 |
| Index No Ref.: 23 | Part Number: 091-980466 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-992644 | Description: Washer, Flat 3/8 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 090-045998 | Description: Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-042094 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: **27 | Part Number: 090-394644 | Description: Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-333203 | Description: Shim (090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333211 | Description: Shim (090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 114-004732 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-981068 | Description: Screw, Hex. Hd. Cop 3/4-16NC x 5 | Units Per Assembly: USE | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-981233 | Description: Screw, Hex. Hd. Cap 3/4-16NC x 43/4 | Units Per Assembly: ONE | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-105016 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-991414 | Description: Nut, Hex. 3/4-16NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 134-134071 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-982918 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-333104 | Description: Shim (090-598624, 090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333112 | Description: Shim (090-598624, 090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333120 | Description: Shim (090-598624,090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-333138 | Description: Shim (090-598624, 090-524356 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-009934 | Description: Shim (090-549353 Only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-108531 | Description: Wrench (Not Shown) (090-524356 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *Note: Items *16 thru* 21 Are Not Part of Assemblies 090-523456, 090-549353, 090-553066, 090-598624. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **Note: Before Ser. #287-70259 on 1612, Before Ser. #277-70778 on 1612-0, Before Ser. #148-701464 on 1612-1, And Before Ser. #278-70253 on 3613-0, 090-394644 Head Was 090-107566. | Units Per Assembly: | Availability: Call For Info | Price: |
