Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-10-7
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 090-504937 | Description: No. 1 All Purpose Cut-off, Ripping & Mitering Attachment (24 x 24 Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 111-280046 | Description: No. 1 All Purpose Cut-off, Ripping & Mitering Attachment (30 x 30 Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 135-054278 | Description: No. 1 All Purpose Cut-off, Ripping & Mitering Attachment (36 x 36 Table) | Units Per Assembly: | Availability: Call For Info | Price: |

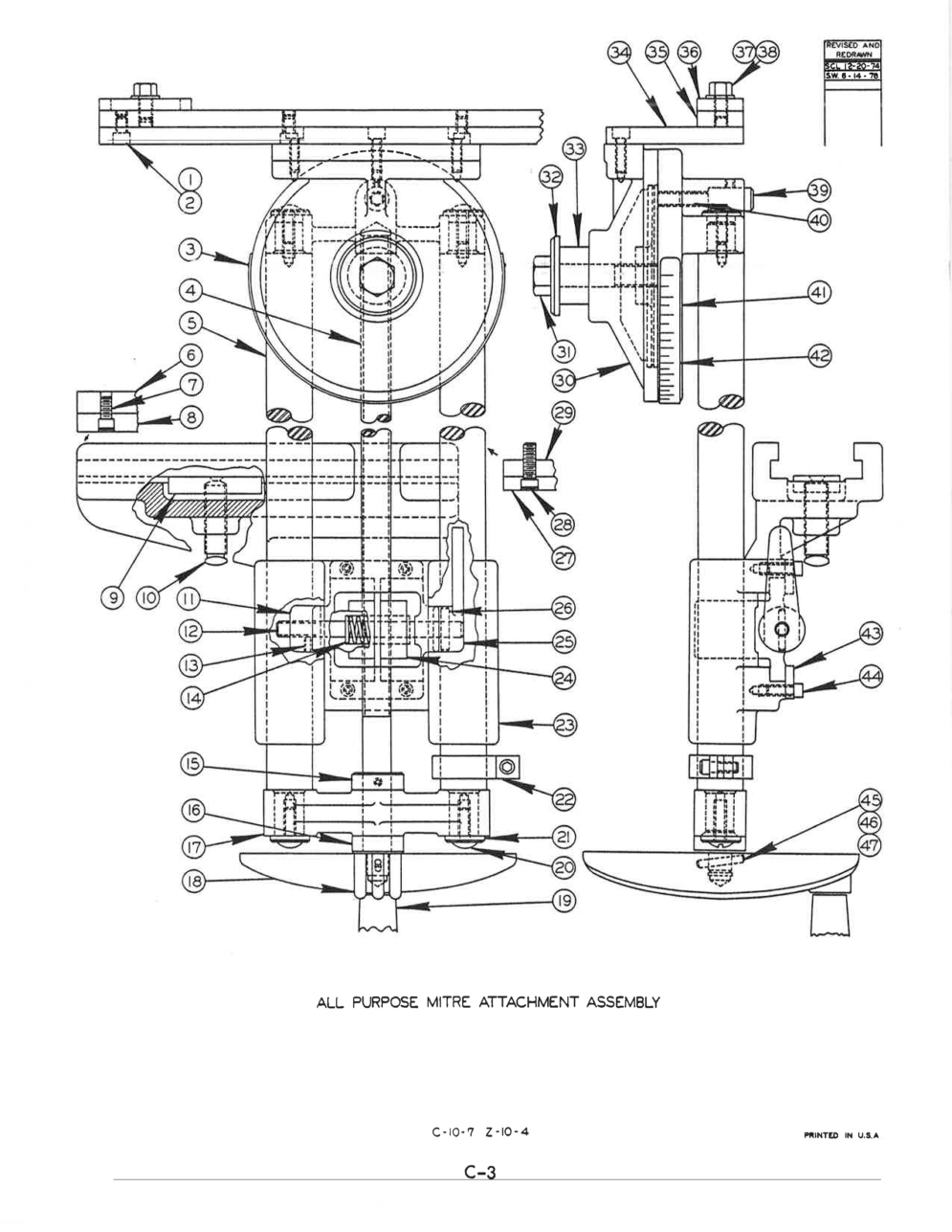

| Index No Ref.: 1 | Part Number: 135-051852 | Description: All Purpose Mitre Attachment Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982355 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/8 | Units Per Assembly: 7 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 091-993972 | Description: Screw, Rd. Hd. Drive 02 x 1/4 P.K. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 111-284162 | Description: Feed Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 111-284154 | Description: Slide Rod | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 106-283013 | Description: L.H, Table Guide Spacer (24" Table) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-283032 | Description: L.H. Table Guide Spacer (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-047256 | Description: L.H. Table Guide Spacer (36" Table) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 106-283021 | Description: L.H. Table Guide(24" Table) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-283024 | Description: L.H. Table Guide(30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-047264 | Description: L.H. Table Guide(36" Table) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 111-283040 | Description: Locking Pad | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 111-284097 | Description: Locking Pad Set Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 111-281101 | Description: Split Nut Adjusting Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 111-284170 | Description: Split Nut Adjusting Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-984104 | Description: Screw, Soc. Set #10-24NC x 1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 111-285086 | Description: Split Nut Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 111-284188 | Description: Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 111-284196 | Description: Screw Handwheel Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 111-291084 | Description: Slide Rod & Handle Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 134-051036 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-181164 | Description: Speed Change Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $50.38 |
| Index No Ref.: 20 | Part Number: 091-990192 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 111-284204 | Description: Slide Rod Washer | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 111-281093 | Description: Feed Stop Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 111-281077 | Description: Table Slide Casting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 111-281119 | Description: Split Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 111-281127 | Description: Split Nut Adjusting Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-042334 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 106-283039 | Description: R.H. Table Guide (24" Table) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-283081 | Description: R.H. Table Guide (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-047280 | Description: R.H. Table Guide (36" Table) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 106-283047 | Description: R.H. Table Guide Spacer (24" Table) | Units Per Assembly: Use | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-283073 | Description: R.H. Table Guide Spacer (30" Table) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-047272 | Description: R.H. Table Guide Spacer (36" Table) | Units Per Assembly: One | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 111-281028 | Description: Mitre Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-980714 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 2-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 111-284055 | Description: Power Feed Chain Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 111-284105 | Description: Power Feed Chain Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 111-283016 | Description: Mitre Bar Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 111-283065 | Description: Mitre Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 111-283057 | Description: Work Stop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-992628 | Description: Washer, 5/16" Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-980250 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 111-284139 | Description: Mitre Head Support Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-984385 | Description: Screw, Soc. Hd. Set 5/16-18NC x 5/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 111-281069 | Description: Mitre Head Base | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 111-285052 | Description: Mitre Head Graduated Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 111-283099 | Description: Split Nut Side Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-982215 | Description: Screw, Soc. Hd. Cap #10-24NC x 5/8 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 090-042599 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 46 | Part Number: 091-164426 | Description: Screw, Soc. Hd. Shoulder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-156323 | Description: Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-181172 | Description: Pin (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
