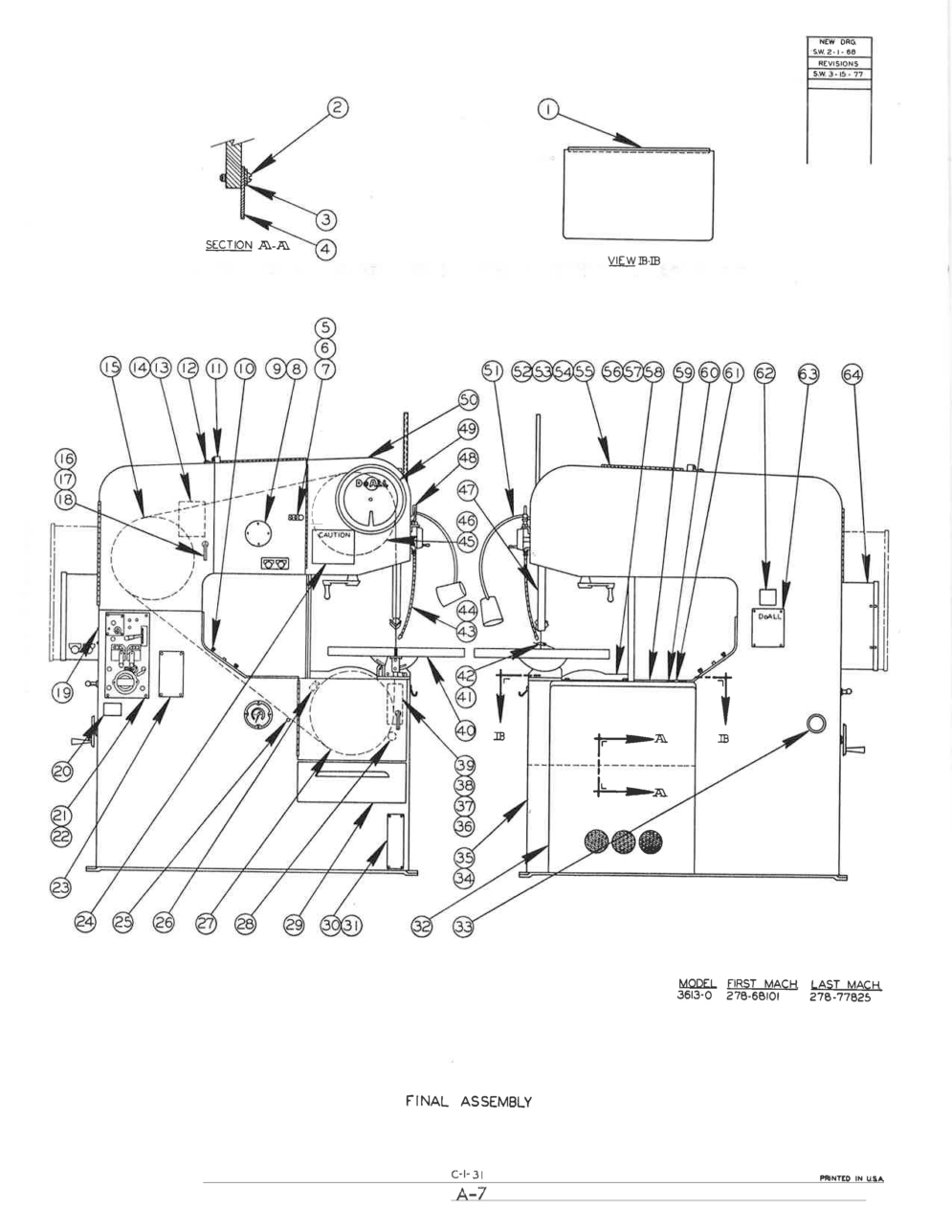

Exploded View Parts Ordering: 3613-0_244
3613-0 244 Online Parts Manual
Serial No: 244-65101 End Date 244-68192
Page Code: C-1-31
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: REF. | Part Number: 290008 | Description: Final Assembly (3613-0) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-057018 | Description: Seal Strip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988568 | Description: Scr., Rd. Hd. Mach., #8-32NC x 5/8" | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-056960 | Description: Clamp Strip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-056952 | Description: Seal Strip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-060641 | Description: Door Stop Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-988675 | Description: Scr., Rd. Hd. Mach., #10-24NC x 3/8" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-993196 | Description: Washer, Lock, #10 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 135-014918 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-988675 | Description: Scr., Rd. Hd. Mach., #10-24NC x 3/8" | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 111-024014 | Description: Thumb Screw | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-000613 | Description: Felt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-201418 | Description: Bracket Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-061805 | Description: Cover Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-988386 | Description: Scr., Rd. Hd. Mach., #6-32NC x 1/4" | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-413436 | Description: Third Wheel Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-168428 | Description: Handle Assembly | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 105-021018 | Description: Door Latch | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-984227 | Description: Scr., Soc. Set, 1/4-20NC x1/4" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-074368 | Description: Plug Button | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-369023 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-322725 | Description: DBW-15Butt Welder (See Welder Manual) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-990208 | Description: Scr., Truss Hd. Mach., 1/4-20NC x 1/2" | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-187037 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 094-044763 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-122357 | Description: Grommet | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-274075 | Description: Wheel Brush Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-166842 | Description: Brush | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-166644 | Description: Brush Holder Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982205 | Description: Scr., Soc. Hd. Cap, #10-24NC x 1/2" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-992584 | Description: Washer, #10 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 090-584869 | Description: Drive Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 135-045250 | Description: Plug Button | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-447987 | Description: Chip Drawer Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 135-008324 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-993972 | Description: Drive Screw, #2 x 1/4" Type "U" | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 090-517624 | Description: Rear Cover Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 090-008509 | Description: Grommet | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 090-033259 | Description: Plug Button | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 35 | Part Number: 090-135526 | Description: Plug Button | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-238907 | Description: Cover Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-988972 | Description: Scr., Rd. Hd. Mach., 1/4-20NC x 3/4" | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-993212 | Description: Washer, Lock, 1/4" Std. | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 39 | Part Number: 091-991158 | Description: Nut, Hex., 1/4-20NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 090-524356 | Description: Table & Trunnion Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-408344 | Description: Saw Band | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 093-045250 | Description: Band Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 090-040973 | Description: Air Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 105-045207 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 095-003729 | Description: Head Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 090-070384 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 094-063963 | Description: Saw Band Guard Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 090-234147 | Description: Door Latch Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 090-468174 | Description: Job Selector Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 090-594896 | Description: Frame Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 094-061413 | Description: Work Lamp Ass'y (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 090-382227 | Description: Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-988691 | Description: Scr., Rd. Hd. Cap, #10-24NC x 1/2" | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-991117 | Description: Nut, Hex., #10-24NC | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 090-010190 | Description: Washer | Units Per Assembly: 51 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 090-410762 | Description: Lower Wheel Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-980052 | Description: Scr., Hex. Hd. Mach., 1/4-20NC x 3/8" | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 091-993212 | Description: Washer, Lock, 1/4" Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 59 | Part Number: 090-375015 | Description: Cover Plate Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 090-062910 | Description: Plug Button | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 091-086017 | Description: Plug Button | Units Per Assembly: 41 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 091-292730 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 093-020568 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 095-035424 | Description: Electrical Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Not Shown: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-068715 | Description: Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
