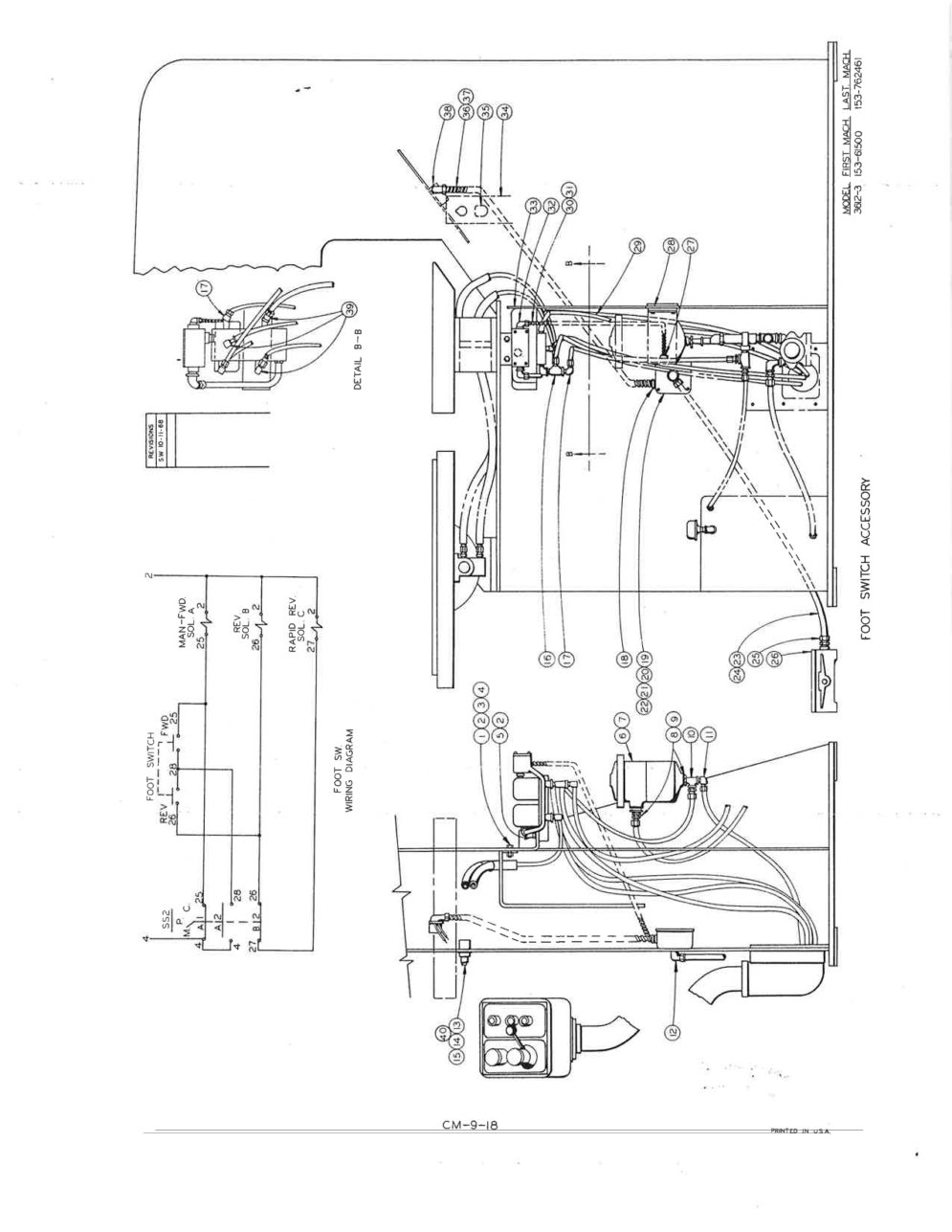

Exploded View Parts Ordering: 3612-3_153

3612-3 153 Online Parts Manual

Serial No: 153-59101 End Date 153-761249

Return to manuals

Page Code: CM-9-18

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 52940 Description: Foot Switch Accessory Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 26383 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: Comm. Description: Lockwasher 1/2 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: Comm. Description: Hex Nut 1/2-13NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: Comm. Description: Screw, Hex Hd. Cap 1/2-13NC x 1-1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: Comm. Description: Screw, HeX Hd. Cap 1/2-13NC x 1-3/8" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 28627 Description: Purolator Filter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 28627A Description: Removable Element Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 8136 Description: Red. Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 3098 Description: Male Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 35-982 Description: Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 1403 Description: 90 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 8438 Description: 90 Degrees Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 15245 Description: Selector Operator Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 14 Part Number: 104821 Description: Contact Block Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 15 Part Number: 12422 Description: Name Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 13383 Description: Male Run Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 107108 Description: 90 Degrees Male Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 19508-B Description: Str. Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 19506-A Description: Outlet Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 19506-B Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: Comm. Description: Screw, Rd. Hd. Mach. #10-24NC x 7/16" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: Comm. Description: Washer, Lock #10 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: Stk.#520 Description: Sealite Conduit Units Per Assembly: AR Availability: Call For Info Price:
Index No Ref.: 24 Part Number: Stk.#734 Description: Wire, Stranded. Units Per Assembly: AR Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 8437 Description: Str. Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 104881 Description: Foot Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 19508-A Description: Street Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 100939 Description: Pad Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: Stk.#211 Description: Nylon Tubing 3/8 O.D Units Per Assembly: AR Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 19519 Description: Conduit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: Stk.#734 Description: Wire, Stranded Units Per Assembly: AR Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 19508-E Description: 90 Degrees Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 43528 Description: Valve & Manifold Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 46488 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 5538 Description: Closing Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 19517 Description: Conduit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: Stk.#734 Description: Wire, Stranded Units Per Assembly: AR Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 19508-D Description: 90 Degrees Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 113584 Description: 45 Degrees Elbow Male Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 14962 Description: Contact Block Units Per Assembly: 1 Availability: In Stock Price: $228.54
