Exploded View Parts Ordering: 3612-3_153

3612-3 153 Online Parts Manual

Serial No: 153-59101 End Date 153-761249

Return to manuals

Page Code: CM-8-39

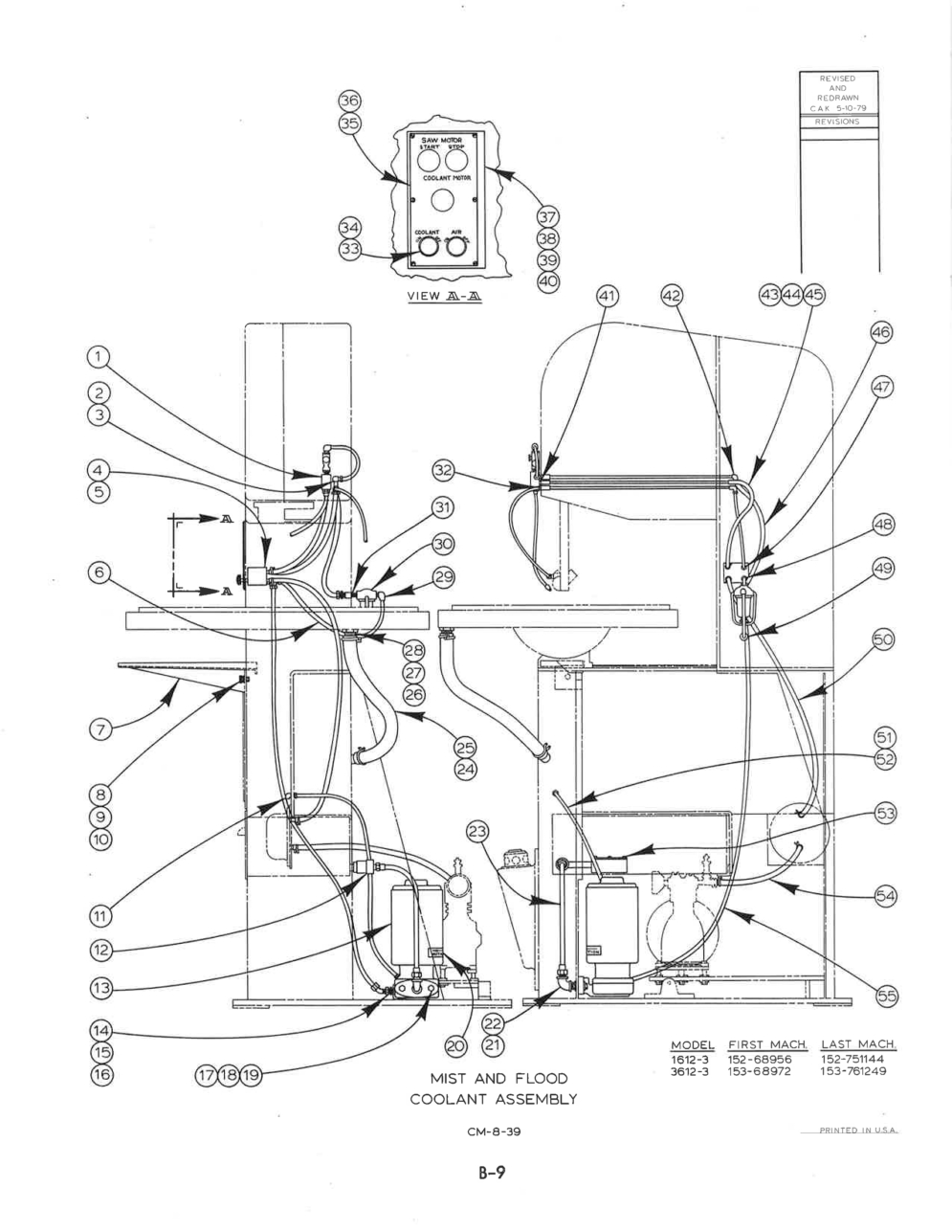

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 59840 Description: Mist and Flood Coolant Assembly (1612-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 59860 Description: Mist and Flood Coolant Assembly (3612-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-381245 Description: Coolant Manifold Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 135-069896 Description: 90 Degrees Street Elbow (Ass'y. #59840) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 105-275069 Description: 90 Degrees Street Elbow (Ass'y. #59860) Units Per Assembly: ONE Availability: In Stock Price: $6.20
Index No Ref.: 3 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-215674 Description: Valve Body Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-332023 Description: Pipe Plug Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-971440 Description: Plastic Tubing (Ass'y. #59840 Only) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 7 Part Number: 090-411000 Description: Front Drip Pan Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-024012 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-980060 Description: Screw, Flex. Hd. Cap 1/4-20NC x 1/2" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993212 Description: Washer, Lock 1/4" Std Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 11 Part Number: 105-275069 Description: 90 Degrees Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $6.20
Index No Ref.: 12 Part Number: 090-118753 Description: Coupler Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-418781 Description: Coolant Pump Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 135-035061 Description: Reducer Bushing (Ass'y. #59840) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 135-024560 Description: Reducer Bushing (Ass'y. #59860) Units Per Assembly: ONE Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-066217 Description: 45 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 135-024560 Description: Reducer Bushing (Ass'y. #59840 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993329 Description: Washer, Lock 3/8" Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-046558 Description: Decal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 114-003486 Description: 90 Degrees Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-052580 Description: Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-041864 Description: Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-061002 Description: Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-217521 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-156183 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-109802 Description: Seal Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-170416 Description: Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-014028 Description: 90 Degrees Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-158064 Description: Filter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-971440 Description: Plastic Tubing Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 33 Part Number: 090-051947 Description: Valve Stem Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-015124 Description: O-Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-262650 Description: Escutcheon (Ass'y. #59840) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 091-037978 Description: Escutcheon (Ass'y. #59860) Units Per Assembly: ONE Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-988311 Description: Screw, Rd. Hd. Mach. #4-40NC X 1/4" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-987594 Description: Screw, Flat Hd. Mach. 1/4-20NC x 1/2" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-987487 Description: Screw, Flat Hd. Mach. #10-24NC x 3/8" (Ass'y. #59840 Only) Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 39 Part Number: 091-987586 Description: Screw, Flat Hd. Mach. 1/4-20NC x 3/8" (Ass'y. #59840 Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-262676 Description: Coolant Panel (Ass'y. #59840 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-029173 Description: Pipe Nipple (Ass'y. #59840 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-136085 Description: 90 Degrees Female Elbow (Ass'y. #59840) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-135947 Description: Female Connector (Ass'y. #59860) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 090-052697 Description: Hose (Ass'y. #59840) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 091-970947 Description: Hose (Ass'y. #59860) Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 44 Part Number: 090-083866 Description: Pipe Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 091-971440 Description: Plastic Tubing (Ass'y. #59840 Only) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 47 Part Number: 090-014002 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-339721 Description: Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 090-157801 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 090-052705 Description: Hose (Ass'y. #59840) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 091-970947 Description: Hose (Ass'y. #59860) Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 51 Part Number: 091-971432 Description: Plastic Tubing Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 090-151952 Description: Barbed Insert Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 090-209214 Description: Coolant Strainer Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 090-052721 Description: Hose Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 091-970947 Description: Hose Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 55 Part Number: 091-971374 Description: Nylon Tubing Units Per Assembly: A.R. Availability: Call For Info Price:
