Exploded View Parts Ordering: 3612-3_153

3612-3 153 Online Parts Manual

Serial No: 153-59101 End Date 153-761249

Return to manuals

Page Code: CM-8-16

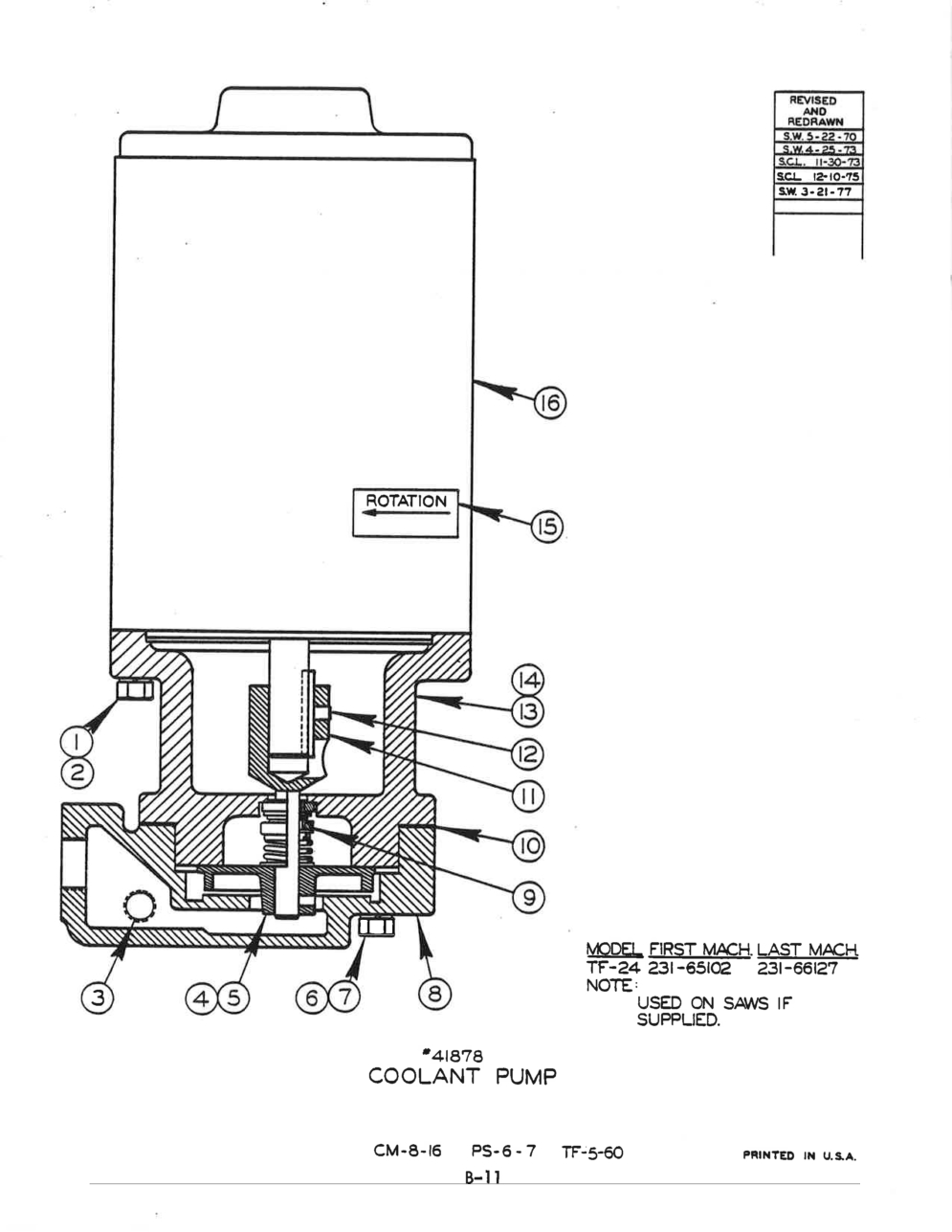

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 090-418781 Description: Coolant Pump Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-993329 Description: Washer, Lock 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-227488 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-029299 Description: Impeller (2875-3450 RPM) Units Per Assembly: USE Availability: Call For Info Price:
Index No Ref.: Part Number: 090-251067 Description: Impeller (25V Motor, 1450 RPM) Units Per Assembly: ONE Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-984179 Description: Screw, Soc. Set #10-32NF x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-980334 Description: Screw, Hex. Hd. Cap 5/16-18NC x 2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-993238 Description: Washer, Lock 5/16 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-404492 Description: Impeller Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-029307 Description: Roto Flex Seal Units Per Assembly: 1 Availability: In Stock Price: $122.61
Index No Ref.: 10 Part Number: 090-029281 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-071101 Description: Stub Shaft Units Per Assembly: 1 Availability: In Stock Price: $562.59
Index No Ref.: 12 Part Number: 091-984328 Description: Screw, Soc. Set 1/4-28NF x 1/4 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 090-418864 Description: Adapter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 111-055091 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-046558 Description: Rotation Decal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-070400 Description: Motor (Specify V, HP Cycle, Phase) Units Per Assembly: 1 Availability: Call For Info Price:
