Exploded View Parts Ordering: 3612-3_153

3612-3 153 Online Parts Manual

Serial No: 153-59101 End Date 153-761249

Return to manuals

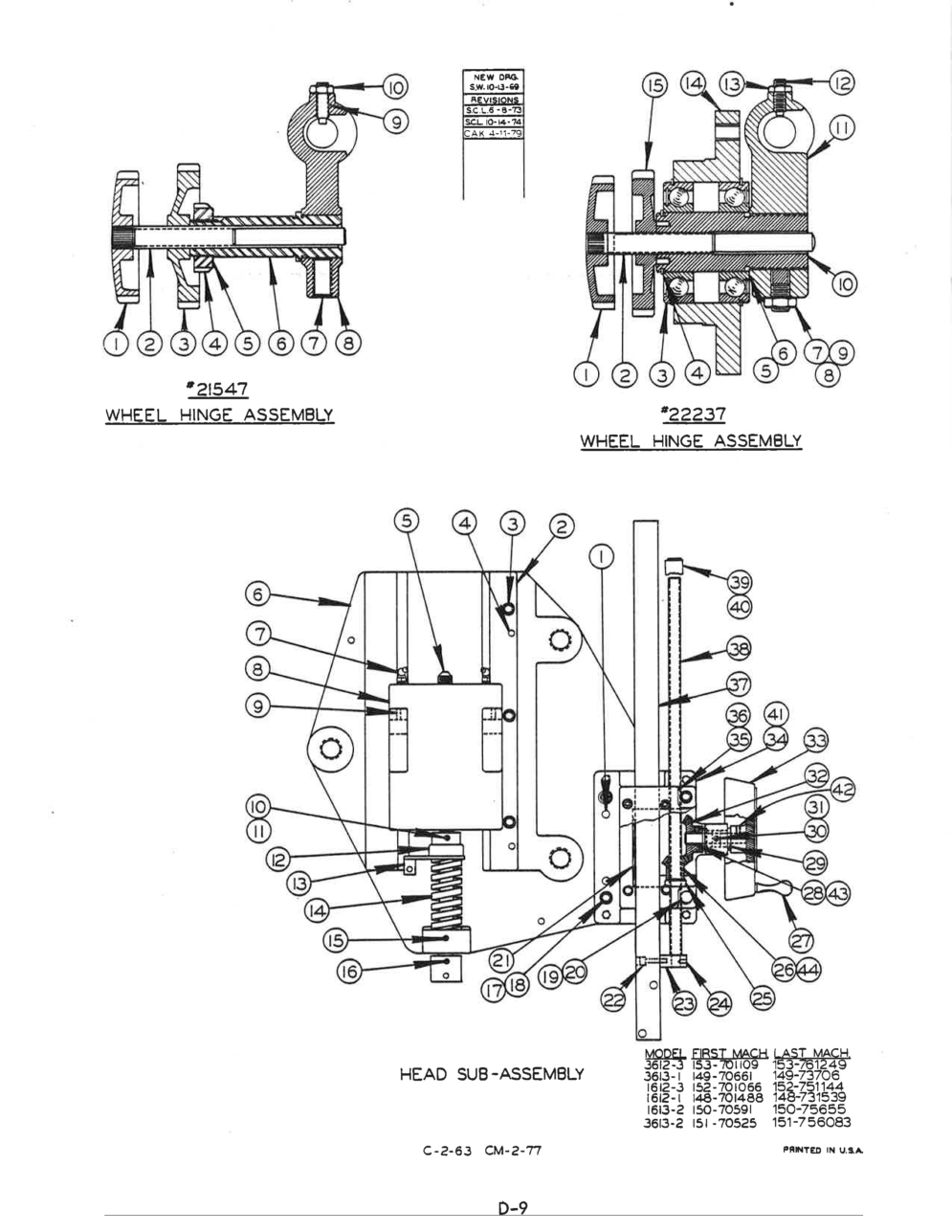

Page Code: CM-2-77

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-021276 Description: Head Sub-Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 105-014013 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-346685 Description: Gib Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-982611 Description: Scr., Soc. Hd. Cap 5/16-18NC x 1-1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 5 Part Number: 090-285263 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 095-003737 Description: Head Casting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-059197 Description: Grease Fitting Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-410275 Description: Slide Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-984336 Description: Scr., Soc. Set 1/4-28NF x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 105-014146 Description: Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 12 Part Number: 135-086155 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-000836 Description: Rod Anchor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-004051 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 135-094738 Description: Grease Fitting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-003970 Description: Adapter Units Per Assembly: 1 Availability: In Stock Price: $68.54
Index No Ref.: 17 Part Number: 091-982819 Description: Screw, Soc. Hd. Cap 3/8-16NC 1-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-051509 Description: Washer, Lock 3/8 Hi-Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-982876 Description: Scr., Soc. Hd. Cap 3/8-16NC x 3 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 105-013064 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-982256 Description: Ser., Soc. Hd. Cap #10-24NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-209205 Description: Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-154278 Description: Ser., Soc. Set (Nylok) #10-24NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 135-028108 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-209254 Description: Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-046904 Description: Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-209239 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-209221 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-217463 Description: Friction Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-235762 Description: Scr., Soc. Set (Nylok) #8-32NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-144353 Description: Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-386434 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 094-017688 Description: Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-386442 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-982363 Description: Scr., Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 094-021086 Description: Post Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-209247 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-235812 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-235804 Description: Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-984096 Description: Scr., Soc. Set #10-24NC x 3/16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-142810 Description: Scr., Soc. Set (Nylok) #10-24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-318139 Description: Shim Option List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-240317 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-215476 Description: Wheel Hinge Ass'y. (1612-1 & 3613-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 105-011084 Description: Tilting Screw Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-014252 Description: Upper Wheel Tilt Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 105-011092 Description: Upper Wheel Tilting Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 105-015069 Description: Locknut Units Per Assembly: 1 Availability: In Stock Price: $5.17
Index No Ref.: 5 Part Number: 105-015077 Description: Lockwasher Units Per Assembly: 1 Availability: In Stock Price: $1.67
Index No Ref.: 6 Part Number: 105-014245 Description: Upper Wheel Axis Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-984518 Description: Scr., Soc. Hd. Set 3/8-16NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-215468 Description: Wheel Hinge Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-038621 Description: Screw, Dog Pt. Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-991141 Description: Nut, Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: Ref. Part Number: 090-222373 Description: Wheel Hinge Ass'y. (3612-3, 3613-2, 1612-3, 1613-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 105-011084 Description: Tilt Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-014252 Description: Tilt Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-165382 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-075968 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $4.00
Index No Ref.: 5 Part Number: 090-134073 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-178278 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 135-085785 Description: Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-984492 Description: Scr., Soc. Set 3/8-16NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-991273 Description: Nut, Jam 3/8-16NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-164088 Description: Wheel Axis Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-222688 Description: Wheel Hinge Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-028621 Description: Screw, Dog Pt. Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-991141 Description: Nut, Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 090-270166 Description: Hub Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 105-011092 Description: Tilt Lock Knob Units Per Assembly: 1 Availability: Call For Info Price:
