Exploded View Parts Ordering: 3612-3_153

3612-3 153 Online Parts Manual

Serial No: 153-59101 End Date 153-761249

Return to manuals

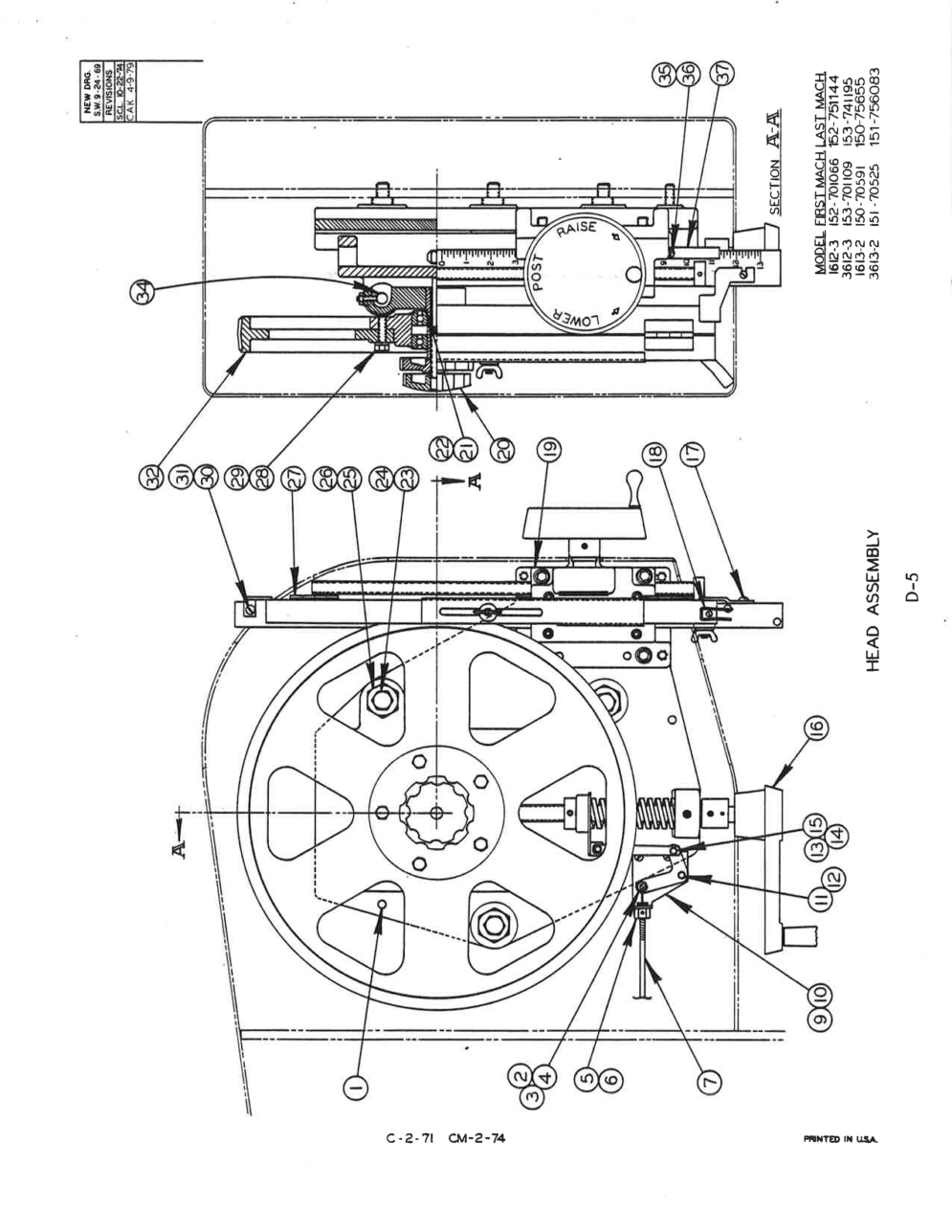

Page Code: CM-2-74

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 500390 Description: Head Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-059189 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-001891 Description: Swivel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-004028 Description: Radius Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-995076 Description: Cotter Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-033556 Description: Casing Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984062 Description: Screw, Soc. Set #8-32NC x 1/4" (Cup Pt.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-011395 Description: Casing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-000851 Description: Pivot Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993196 Description: Washer, Lock #10 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-001909 Description: Crank Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 135-085827 Description: External Retaining Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-008466 Description: Link Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-004044 Description: Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-046178 Description: External Retaining Ring Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-285271 Description: Handle Assembly Units Per Assembly: 1 Availability: In Stock Price: $162.14
Index No Ref.: Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: Part Number: 090-453309 Description: Handle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-137661 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-047929 Description: Steel Ball Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-030487 Description: Spring Clip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 094-021276 Description: Head Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-222373 Description: Wheel Hinge Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-134073 Description: Spacer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-178278 Description: Spacer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980755 Description: Screw, Hex Hd. Cap 1/2-13NC x 3-3/4" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-993279 Description: Washer, Lock 1/2" Std. Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-059163 Description: Lockbolt Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-991455 Description: Nut, Jam 7/8-14NF Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 094-021995 Description: Saw Guard Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-980300 Description: Screw, Hex Hd. Cap 5/16-18NC x 1-1/4" Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-993238 Description: Washer, Lock 5/16" Std. Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 105-013049 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-989012 Description: Screw Rd. Hd. Mach. 1/4-20NC x 1-1/2" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-445792 Description: Taper Wheel Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-469313 Description: Taper Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-047447 Description: Tire and Rim Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-314527 Description: Backup Plate Units Per Assembly: 6 Availability: In Stock Price: $56.30
Index No Ref.: Part Number: 091-990150 Description: Screw, TFUSS Hd. Mach. #10-24NC x 3/8" Units Per Assembly: 22 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-046756 Description: Retainer Units Per Assembly: 2 Availability: In Stock Price: $17.45
Index No Ref.: 34 Part Number: 135-086106 Description: Hinge Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-992578 Description: Washer, Flat #8 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 091-218057 Description: Post Scale Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Items Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 090-457177 Description: Tension Indicator Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-174780 Description: Bezel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8" Units Per Assembly: 4 Availability: Call For Info Price:
