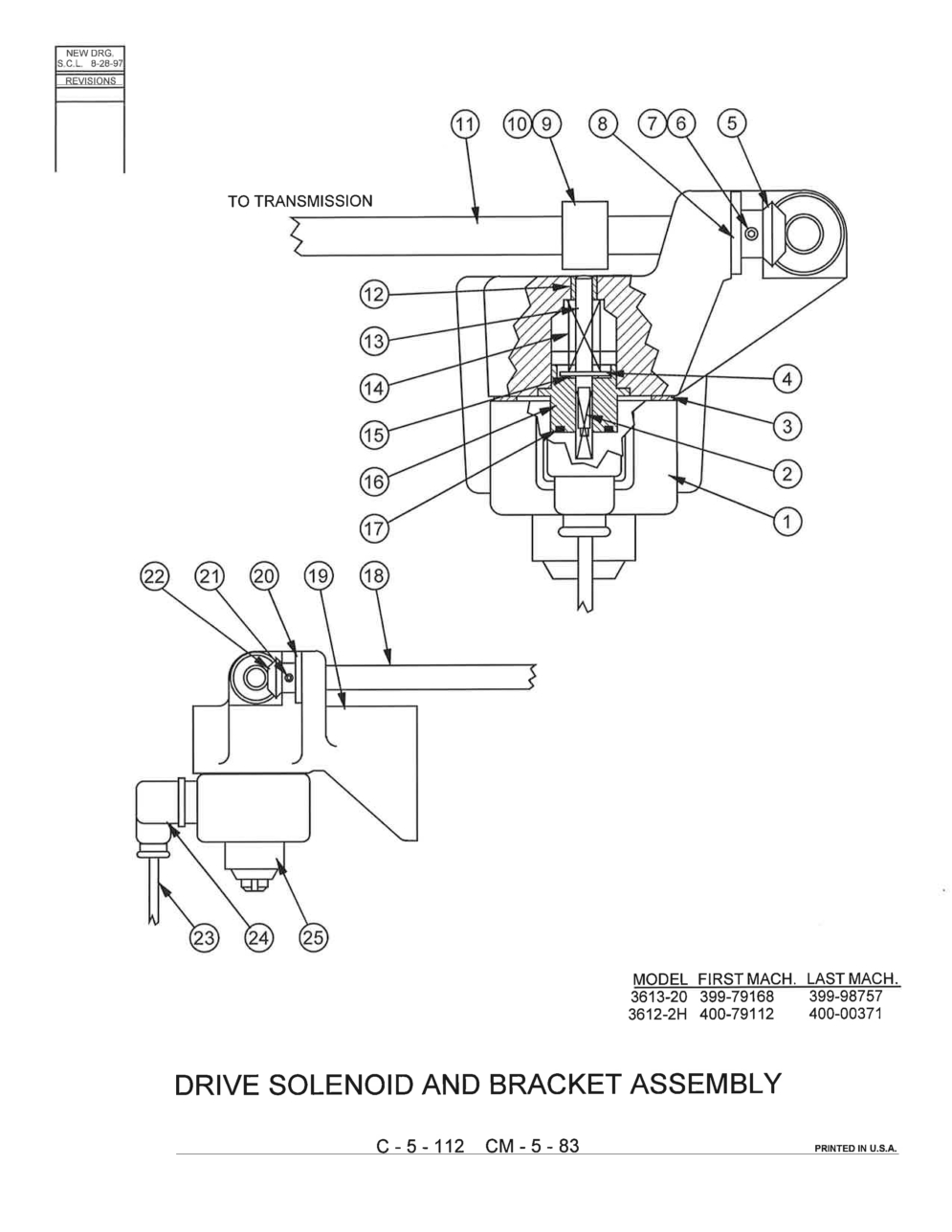

Exploded View Parts Ordering: 3612-2H_400
Page Code: CM-5-83
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
093-096519 |
Description:
Drive Solenoid And Bracket Assembly (50/60 Hz, 110/120V) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
Ref. |
Part Number:
093-106219 |
Description:
Drive Solenoid And Bracket Assembly (50/60 Hz, 220/240V) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
091-585141 |
Description:
Coil (50/60 Hz, 110/120V) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
091-585380 |
Description:
Coil (50/60 Hz, 220/240V) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
091-557918 |
Description:
Compression Spring |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
091-413898 |
Description:
Gasket |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
090-149840 |
Description:
Copper Washer |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
091-253583 |
Description:
Gear |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
090-042429 |
Description:
Spring Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
091-984096 |
Description:
Screw, Soc. Set #10-24NC x 3/16 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
091-007955 |
Description:
Oilite Bearing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
091-473066 |
Description:
Shifter Lever Sleeve |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
091-984229 |
Description:
Screw, Soc. Set 1/4-20NC x 1/4 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
091-632828 |
Description:
Shaft |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
091-473090 |
Description:
Bearing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
13 |
Part Number:
091-554535 |
Description:
Locking Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
14 |
Part Number:
091-557926
|
Description:
Spring |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$9.54 |
Index No Ref.:
15 |
Part Number:
091-559625 |
Description:
Retaining Ring |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
16 |
Part Number:
091-585117 |
Description:
AC Core |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
17 |
Part Number:
135-095214 |
Description:
O-Ring |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
18 |
Part Number:
091-632810 |
Description:
Shift Lever |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
19 |
Part Number:
094-107703 |
Description:
Bracket |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
20 |
Part Number:
091-007955 |
Description:
Oilite Bearing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
21 |
Part Number:
091-985184 |
Description:
Screw, Soc. Set #10-24NC x 1/4 (Cone Pt.) |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
22 |
Part Number:
091-253583 |
Description:
Gear |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
23 |
Part Number:
091-972208 |
Description:
Extension Cord (#16-3 Conductor) |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
24 |
Part Number:
091-656397 |
Description:
Connector (w/Gasket) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
25 |
Part Number:
091-585125 |
Description:
Retainer |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
