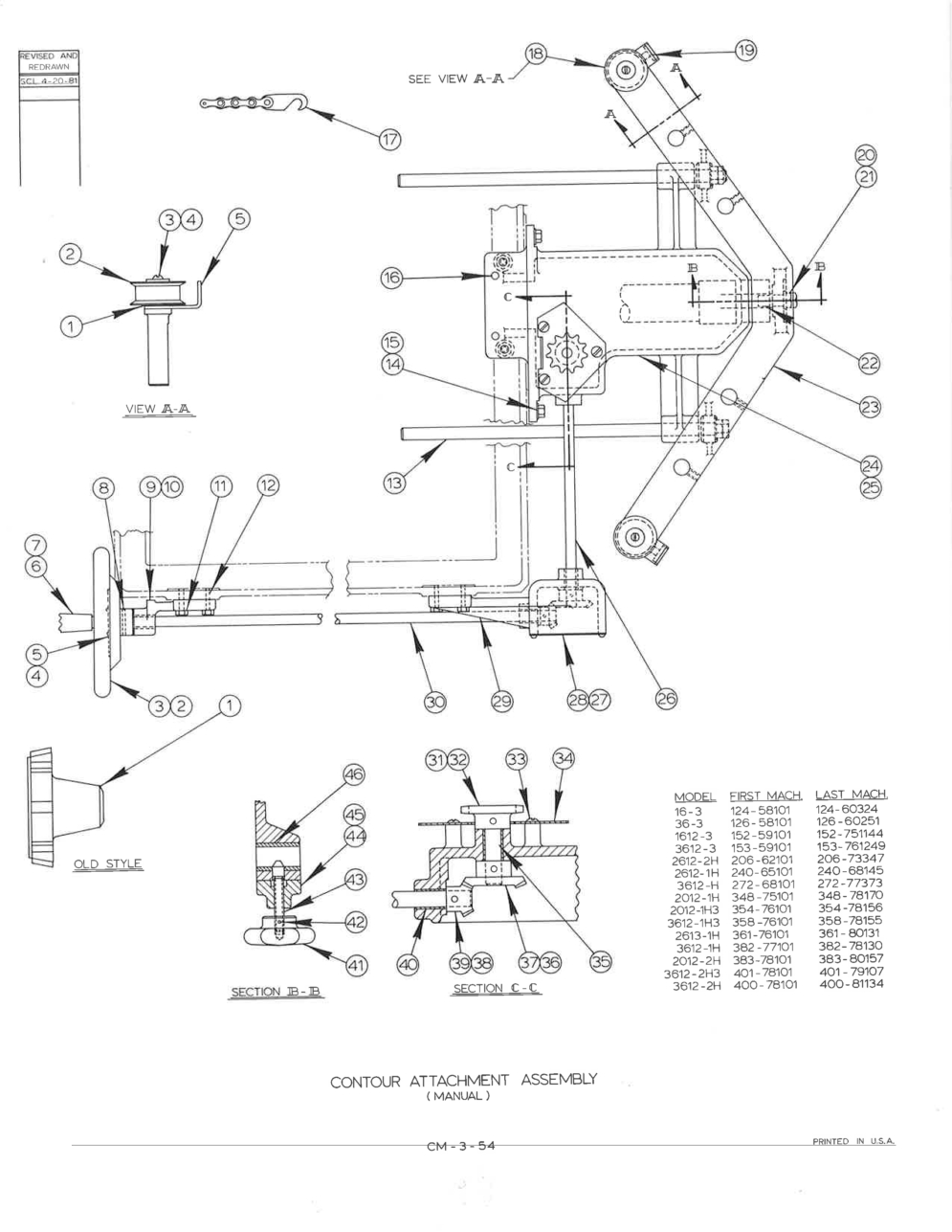

Exploded View Parts Ordering: 3612-2H_400

3612-2H 400 Online Parts Manual

Serial No: 400-78101 End Date 400-00371

Return to manuals

Page Code: CM-3-54

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 080-521032 Description: Contour Attachment Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-239542 Description: Knob (Old Style) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 094-033693 Description: Contour Handwheel Assembly (New Style) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-486432 Description: Servo Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-256297 Description: Name Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 7 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 9 Part Number: 090-426024 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 135-006476 Description: Oilite Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-980284 Description: Screw, Hex. Hd. Cap 5/16-18NC x 7/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 135-005163 Description: Dowel Pin Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-095050 Description: Shaft Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 135-032183 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-050136 Description: Chain Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-006740 Description: Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995464 Description: Rivet 3/16 x 7/16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-003291 Description: Chain Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 135-006716 Description: Horizontal Roller Assembly (See Detail) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 134-174010 Description: Thumb Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-991323 Description: Nut, Hex. Jam 1/2 - 13 NC Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 21 Part Number: 091-992669 Description: Washer, Flat 1/2 S.A.E. Std. Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 22 Part Number: 090-119520 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-521055 Description: Support Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 090-523234 Description: Contour Attachment Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-521048 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-095068 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-016965 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-988386 Description: Screw, Rd. Hd. Mach. #6 - 32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-426032 Description: Gear Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 093-068666 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 135-006724 Description: Sprocket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-042607 Description: Roll Pin Units Per Assembly: 3 Availability: In Stock Price: $1.28
Index No Ref.: 33 Part Number: 091-990184 Description: Screw, Truss Hd. Mach., 1/4 - 20NC x 5/16 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 135-006732 Description: Sprocket Retainer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-016932 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-144353 Description: Bevel Gear Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-984104 Description: Screw, Soc. Set #10 - 24NC x 1/4 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-144346 Description: Bevel Gear Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 090-042433 Description: Roll Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 135-006476 Description: Oilite Bearing Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 090-095100 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 090-042177 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 43 Part Number: 090-095092 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 090-239658 Description: Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-982389 Description: Screw, Soc. Hd. Cap 1/4 - 20NC x 5/8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 46 Part Number: 090-095076 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: The Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 080-402621 Description: Work Holder Jaw Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-452094 Description: Escutcheon (Caution) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 135-006716 Description: Horizontal Roller Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 106-233380 Description: Washer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 135-075919 Description: Roller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988857 Description: Screw, Rd. Hd. Mach. #10 - 32NF x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-075927 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 135-020055 Description: Guide and Post Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
