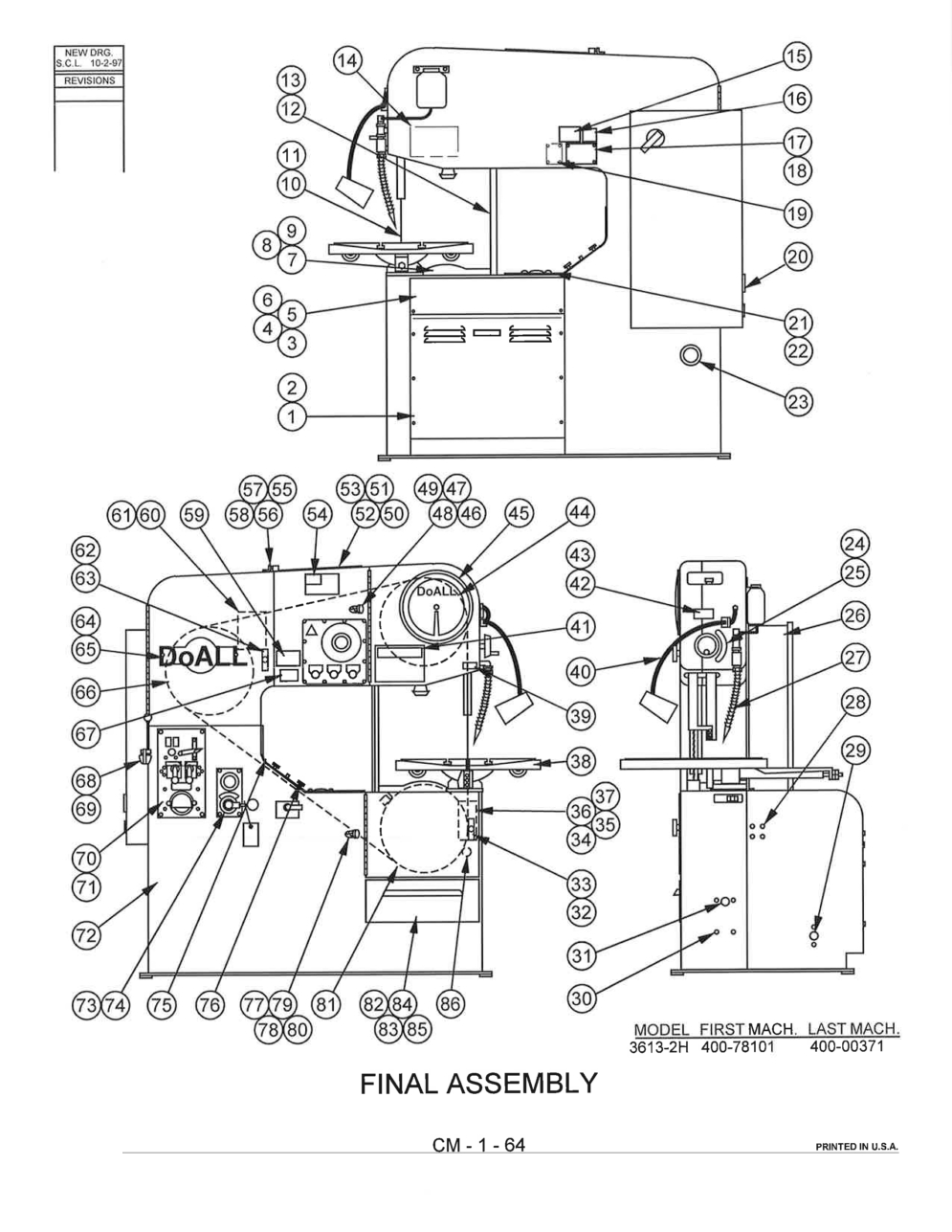

Exploded View Parts Ordering: 3612-2H_400

3612-2H 400 Online Parts Manual

Serial No: 400-78101 End Date 400-00371

Return to manuals

Page Code: CM-1-64

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 390068 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 094-111440 Description: Bottom Drive Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 095-088530 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-974105 Description: Edge Trim (Black) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 134-015031 Description: Wheel Tire Cement Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-410762 Description: Lower Wheel Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-983668 Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 10* Part Number: 091-715169 Description: Saw Band (Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 093-045250 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12* Part Number: 094-063963 Description: Saw Band Guard Weldment (2 Wheel Auxiliary) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-983494 Description: Screw, Button Hd. Soc. #1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 093-212751 Description: Lubrication Chart (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-752018 Description: Label (Band Recommendation) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-292730 Description: Escutcheon (Patent Numbers) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 093-020568 Description: Escutcheon (Machine Spec's.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-288548 Description: Escutcheon (Government Data) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-066984 Description: CE Label (Europa) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-615435 Description: Hour Meter (60 Hz) (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-067008 Description: Hour Meter (50 Hz) (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-062910 Description: Plug Button Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-086017 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-972364 Description: Grommet Strip Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-483685 Description: Escutcheon (Post-Up/Down) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-993964 Description: Screw, Rd. Hd. Drive #2 x 3/16 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 26* Part Number: 091-551499 Description: Electrical Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 095-001830 Description: Mist Coolant Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-031154 Description: Plug Button Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-123373 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-135526 Description: Plug Button Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-033259 Description: Plug Button Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 32** Part Number: 091-727628 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 33 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-238907 Description: Cover Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-988972 Description: Screw, Rd. Hd. Drive 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-991141 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 38 Part Number: 090-590589 Description: Hydraulic Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-310334 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-314688 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 094-061413 Description: Worklamp Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 094-044765 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 092-034974 Description: Upper Door Latch Units Per Assembly: 1 Availability: In Stock Price: $131.99
Index No Ref.: 43 Part Number: 091-997700 Description: Screw, Button Hd. Soc. #10-32NF x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 095-078739 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 090-468174 Description: Job Selector Assembly (Inch/English) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-060829 Description: Job Selector Assembly (Metric/International) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-159075 Description: Job Selector (Europa) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 090-060641 Description: Door Stop Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 090-122359 Description: Rubber Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 090-382227 Description: Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 091-991117 Description: Nut, Hex. #10-24NC Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 091-992586 Description: Washer, Flat #10 S.A.E. Std. Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 54 Part Number: 092-014695 Description: Decal (American Flag) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 55 Part Number: 091-201418 Description: Bracket Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-201327 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-201335 Description: Roller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-988733 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-991117 Description: Nut, Hex. #10-24NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 091-991117 Description: Nut, Hex. #10-24NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 091-992586 Description: Washer, Flat #10 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 59 Part Number: 092-096528 Description: Label (Diameters/X-Section Area) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 60 Part Number: 092-034784 Description: Cover (Inside Door) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 091-944707 Description: Screw, Pan Hd. Self-Tapping #10-24NC x 5/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 62** Part Number: 091-727628 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 63 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 094-140845 Description: Name Plate Units Per Assembly: 1 Availability: In Stock Price: $52.27
Index No Ref.: 65 Part Number: 091-997353 Description: Screw, Flat Hd. Self-Tap #10-24NC x 1/2 (Slotted) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 094-068145 Description: Idler Wheel Assembly (Third Wheel) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 091-458828 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-496679 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 091-318071 Description: Blade Shear Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 091-211276 Description: Nutsert 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: Description: DBW-15 Buttwelder Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-357007 Description: Cover (When Welder is Not Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 72* Part Number: 095-083218 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 095-072088 Description: Hydraulic Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 092-026988 Description: Tag (Hydraulic Purge) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 75 Part Number: 090-375015 Description: Cover Plate (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-086885 Description: Cover Plate (Secondary Table Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 76 Part Number: 111-024014 Description: Thumb Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 77 Part Number: 090-060641 Description: Door Stop Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 78 Part Number: 090-122359 Description: Rubber Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 79 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 80 Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 81 Part Number: 095-084034 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 82 Part Number: 090-447988 Description: Chip Drawer Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 83 Part Number: 091-056952 Description: Seal Strip (Rear of Drawer Opening) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 84 Part Number: 091-056960 Description: Clamp Strip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 85 Part Number: 091-988568 Description: Screw, Rd. Hd. Mach. #8-32NC x 5/8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 86 Part Number: 135-045250 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Also See Extra Work Height Assembly If Applicable. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: Replaced #091-545798 Handle Assembly and #105-021018 Door Latch Before Serial #400-87247. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 094-068715 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-420505 Description: Hydraulic Oil (ASTM 215 Anti-Wear) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 071-476675 Description: Instruction Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-476667 Description: Parts Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-700930 Description: Box of Extra Parts Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-048437 Description: Upper Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-048445 Description: Lower Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-406934 Description: Saw Guide Insert Pack Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-185000 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982462 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-3/4 (Lower Guide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995688 Description: Hex. Key 3/16" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-108531 Description: Wrench (Table Tilt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-170537 Description: Pallet (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
