Exploded View Parts Ordering: 2013-V_571

2013-V 571 Online Parts Manual

Serial No: 571-04101

Download PDF Version

Return to manuals

Page Code: C-10-42

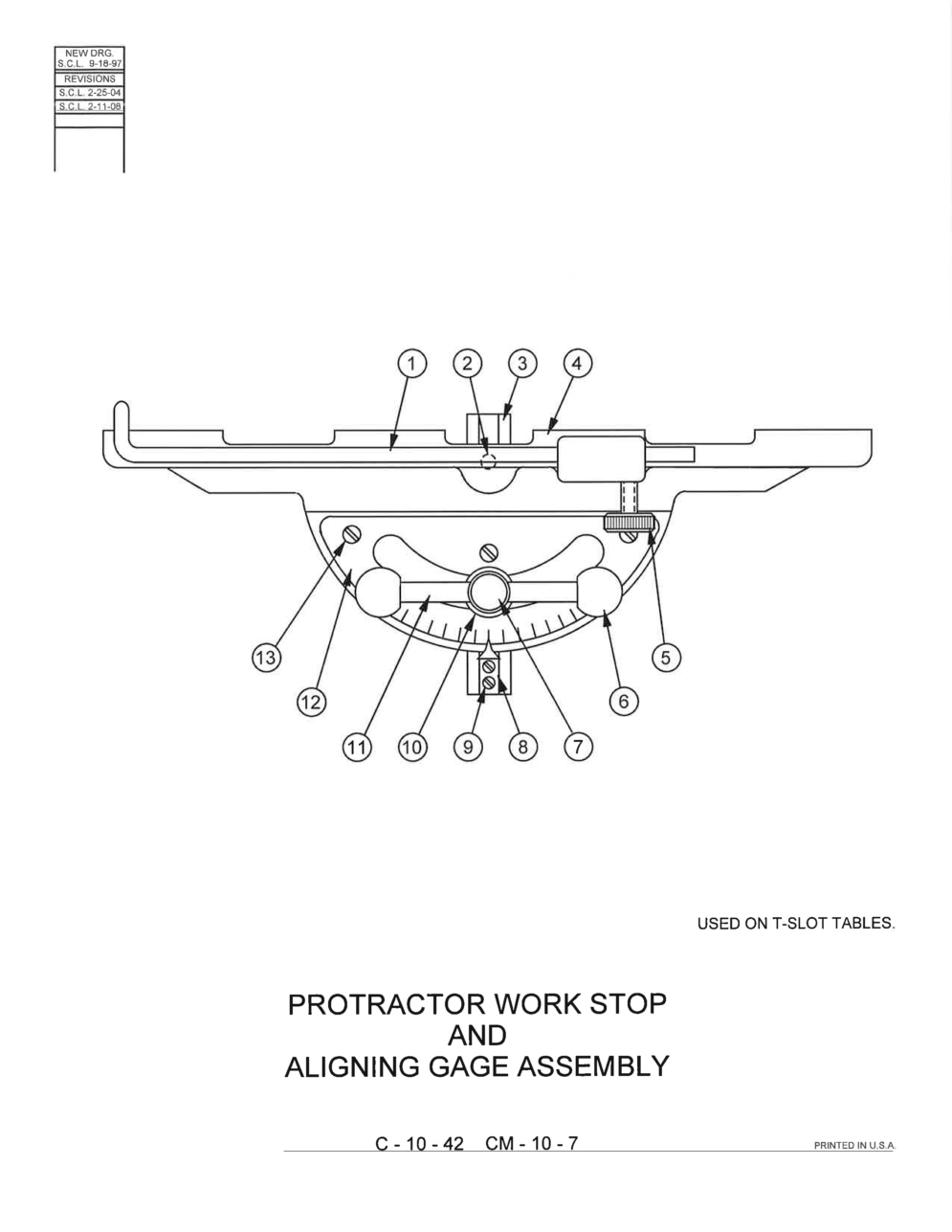

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref.* Part Number: 051495 Description: Protractor Work Stop And Aligning Gage Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 35-001976 Description: Gage Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 14-000473 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3* Part Number: 025302 Description: T-Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 051496 Description: Miter Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 34-017401 Description: Thumbnut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 133971 Description: Knob Units Per Assembly: 2 Availability: In Stock Price: $4.16
Index No Ref.: 7* Part Number: 011635 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 011633 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 198867 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 199265 Description: Washer, Flat 7/16 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 011634 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 35-001614 Description: Protractor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 198867 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: Description: *NOTE: For Model 26-HB2 Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 054758 Description: Protractor Work Stop And Aligning Gage Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 029162 Description: T-Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 101118 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
