Exploded View Parts Ordering: 2013-V_571

2013-V 571 Online Parts Manual

Serial No: 571-04101

Download PDF Version

Return to manuals

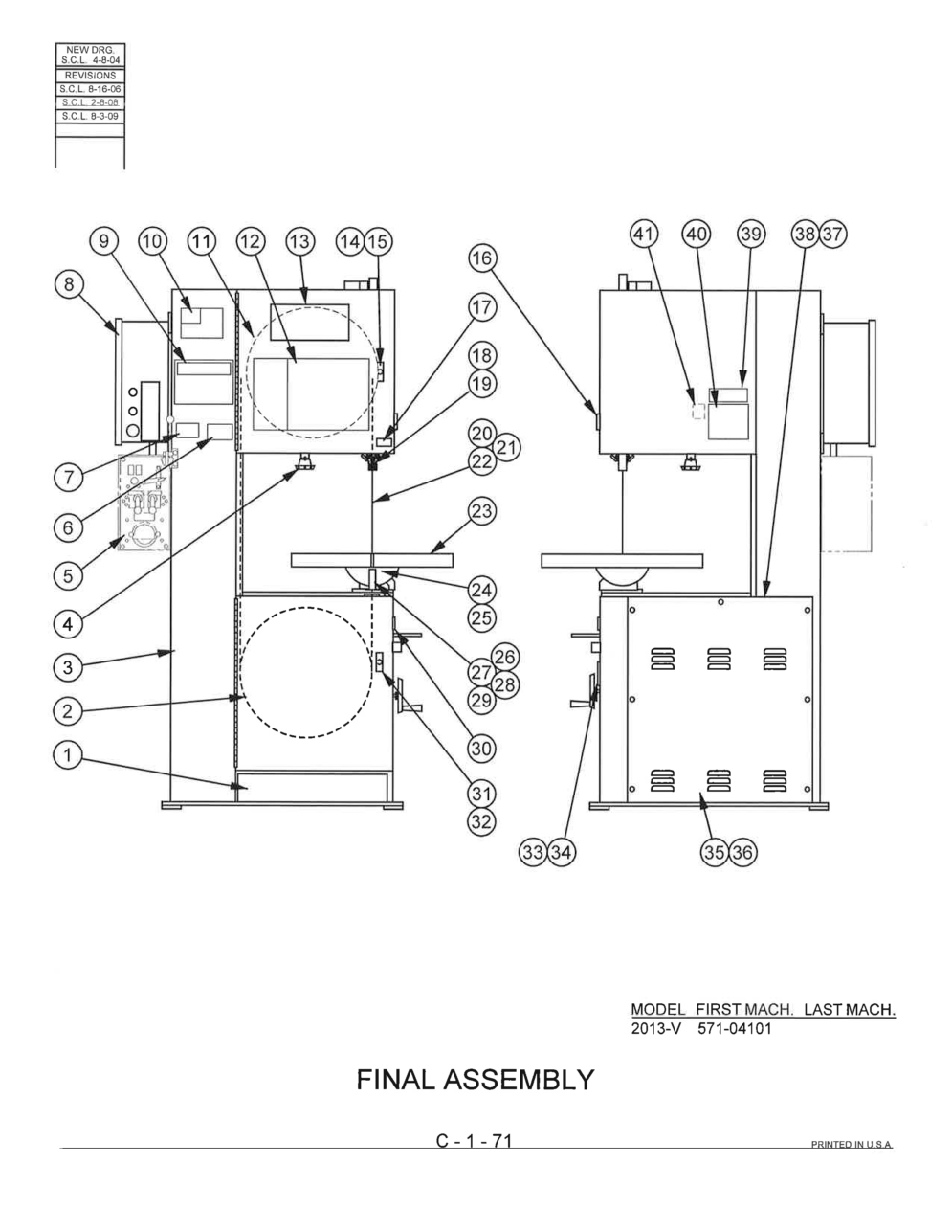

Page Code: C-1-71

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 290166 Description: Final Assembly Units Per Assembly: Availability: In Stock Price: $0.00
Index No Ref.: 1 Part Number: 404522 Description: Chip Box Weldment (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 414621 Description: Chip Box Assembly (Dust Spout Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 513012 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3* Part Number: 220211 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 009400 Description: Knob Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: Description: DBW-15 Buttwelder Assembly (Optional) (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 209652 Description: Escutcheon (Diameters/X-Section Areas) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 7 Part Number: 145882 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: In Stock Price: $16.79
Index No Ref.: Part Number: 149667 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: Description: Electrical Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 404476 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: In Stock Price: $8.40
Index No Ref.: 10 Part Number: 201469 Description: Decal (American Flag) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 11 Part Number: 520279 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 515907 Description: Job Selector Units Per Assembly: 1 Availability: In Stock Price: $19.77
Index No Ref.: 13 Part Number: 416163 Description: Decal (DoALL) Units Per Assembly: 1 Availability: In Stock Price: $21.47
Index No Ref.: 14 Part Number: 172762 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 15 Part Number: 198853 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 216862 Description: Plastic Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 131033 Description: Escutcheon (Warning) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 131408 Description: Escutcheon (Warning) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 028081 Description: Upper Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 018500 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20* Part Number: 171508 Description: Saw Band (Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 304525 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 222563 Description: Tag (Installation Instructions) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: Description: Table and Trunnion Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 028082 Description: Lower Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 198246 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-3/4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 26 Part Number: 413965 Description: Guard Weldnnent (Standard) Units Per Assembly: 1 Availability: In Stock Price: $69.71
Index No Ref.: Part Number: 414435 Description: Guard Weldment (Air Table and/or Rip Fence Options) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 417086 Description: Guard Assembly (Point of Operation) (Optional) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 198867 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 199111 Description: Nut, Hex. #10-24NC Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 29 Part Number: 199320 Description: Washer, Lock #10 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 30 Part Number: 172654 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 172655 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 172762 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 32 Part Number: 198853 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 33 Part Number: 101158 Description: Escutcheon (International Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 199397 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 420945 Description: Rear Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 199299 Description: Screw, Hex. Hd. Self-Drill M4.8 x 13 Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 420725 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 199299 Description: Screw, Hex. Hd. Self-Drill M4.8 x 13 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 222562 Description: Label (1-888-DoALL) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 1012541 Description: Label (Machine Specifications) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 206698 Description: CE Label (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: See Extra Work Height Assembly If Applicable. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 128854 Description: Escutcheon (Government Specifications) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 199397 Description: Screw, Rd. Hd. Mach. #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 406871 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 222564 Description: Box of Extra Parts Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 222559 Description: Saw Guide Insert Pack (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 010853 Description: Wrench (Table Tilt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 199568 Description: Hex. Key 3/16" Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 202789 Description: Documentation CD Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 1013223 Description: Pallet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 318454 Description: Lubrication Chart (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 123001 Description: Shipping Bracket and Hardware (Export Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 417228 Description: Shipping Container (Government) Units Per Assembly: 1 Availability: Call For Info Price:
