Exploded View Parts Ordering: 2013-V_500

2013-V 500 Online Parts Manual

Serial No: 500-92101 End Date 500-042942

Return to manuals

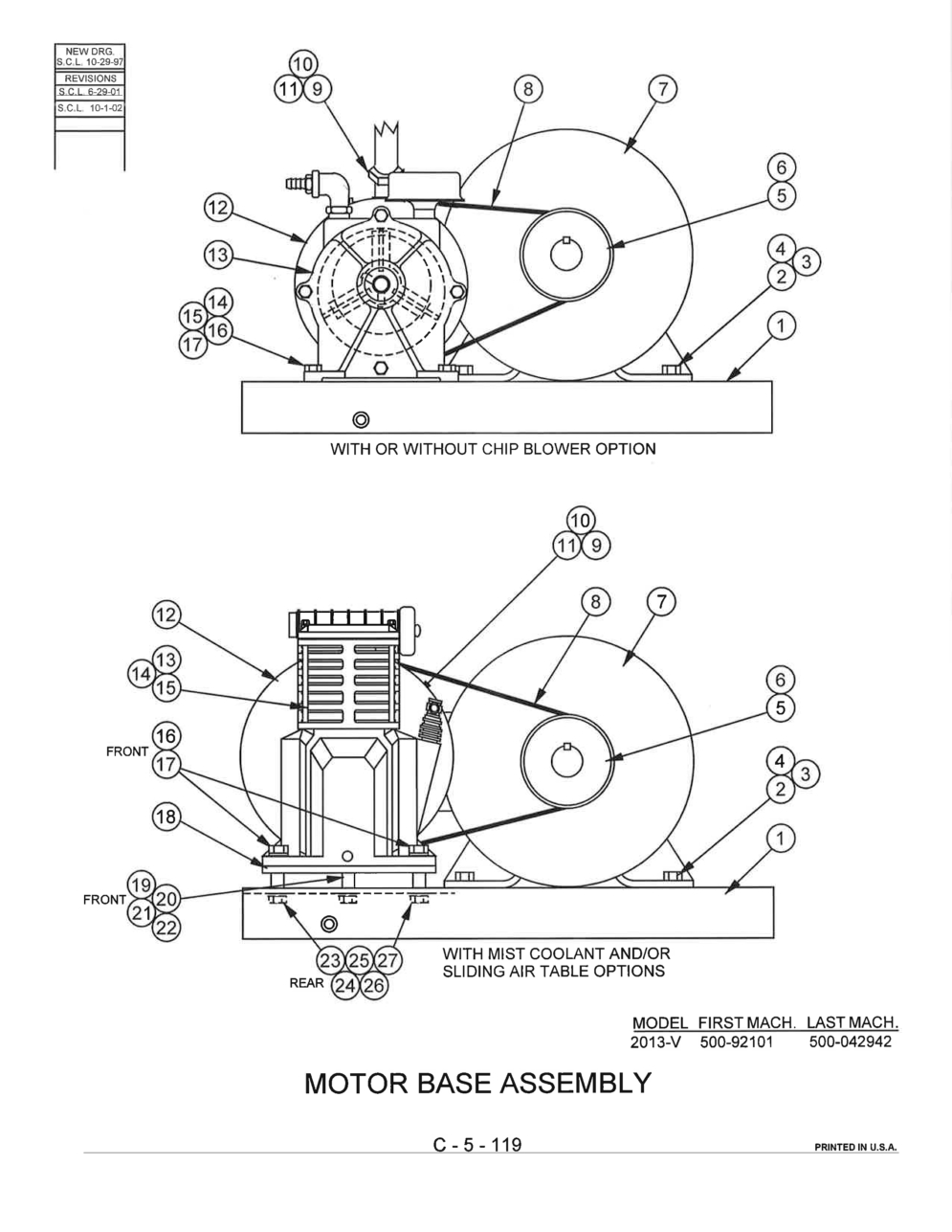

Page Code: C-5-119

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Motor Base Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1* Part Number: 095-184099 Description: Motor Base Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-166717 Description: Motor Base Plate (3 H.P. Motors - 60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-127338 Description: Motor Base Plate (3 H.P. Motors - 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-981829 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993022 Description: Washer, Flat 3/8 Wrought Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5* Part Number: 093-220119 Description: Pulley (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-220101 Description: Pulley (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-213684 Description: Pulley (2 H.P. 220V/50 Hz, 1 Phase) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-180867 Description: Pulley (3 H.P. Motor, 60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-208312 Description: Pulley (3 H.P. Motor, 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984252 Description: Screw, Soc. Set 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 (3 H.P. Motors) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7* Part Number: 092-096205 Description: Electric Motor (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096213 Description: Electric Motor (220V, 230V, 380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096221 Description: Electric Motor (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-338798 Description: Electric Motor (1 Phase, 115V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-095959 Description: Electric Motor (2 H.P., 1 Phase, 220V, 50Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-008085 Description: Electric Motor (3 H.P., All Voltages) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-003408 Description: V-Belt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-158353 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-145079 Description: 45 Degree Sealtite Connector (3 H.P. Motors) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-195439 Description: Bond Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 105-113161 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-427089 Description: Air Pump Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-980110 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992602 Description: Washer, Flat 1/4 S.A.E. Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-993212 Description: Washer, Lock 1/4 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 092-056423 Description: Motor Terminal Block (50 Hz Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #500-971791, Item #1 was 095-127338, Item #5 was #093-088243 (60 Hz) and 093-118206 (50 Hz). For Item #7 order #090-854613 Motor Replacement Kit. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: Description: Motor Base Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1* Part Number: 095-184099 Description: Motor Base Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-166717 Description: Motor Base Plate (3 H.P. Motors - 60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-127338 Description: Motor Base Plate (3 H.P. Motors - 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-981829 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 (3 H.P. Motors) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993022 Description: Washer, Flat 3/8 Wrought (3 H.P. Motors) Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5* Part Number: 093-220119 Description: Pulley (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-220101 Description: Pulley (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-180867 Description: Pulley (3 H.P. Motor, 60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-208312 Description: Pulley (3 H.P. Motor, 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984252 Description: Screw, Soc. Set 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 (3 H.P. Motors) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7* Part Number: 092-096205 Description: Electric Motor (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096213 Description: Electric Motor (220V, 230V, 380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-046221 Description: Electric Motor (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-338798 Description: Electric Motor (2 H.P., 1 Phase, 115V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-095959 Description: Electric Motor (2 H.P., 1 Phase, 220V, 50Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-008085 Description: Electric Motor (3 H.P., All Voltages) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-077421 Description: V-Belt (32" Circumference) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-027723 Description: V-Belt (37" Circumference) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-158353 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-245079 Description: 45 Degree Sealtite Connector (3 H.P. Motors) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-195439 Description: Bond Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-186411 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13** Part Number: 092-199611 Description: Air Compressor (Speedaire - Model #4B244) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14** Part Number: 092-199538 Description: Synthetic Oil (Mobil 1; 10W-30) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-318170 Description: Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-993238 Description: Washer, Lock 5/16 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18** Part Number: 093-255180 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-211615 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: Description: Washer, Lock 5/16 Std Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-992628 Description: Washer, Flat 5/16 S.A.E. Std Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980347 Description: Screw, Hex. Hd. Cap 5/16-18NC x 2-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-992628 Description: Washer, Flat 5/16 S.A.E. Std Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-211607 Description: Spacer Units Per Assembly: 2 Availability: In Stock Price: $26.82
Index No Ref.: 26 Part Number: 091-993238 Description: Washer, Lock 5/16 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 092-056423 Description: Motor Terminal Block (50 Hz Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #500-971791, Item #1 was 095-127338, Item #5 was #093-088243 (60 Hz)and 093-118206 (50 Hz). For Item #7, Order #090-854613 Motor Replacement Kit. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 092-198522 Description: Air Compressor Replacement Kit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-384461 Description: Oil (ASTM Grade 465) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-211631 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
