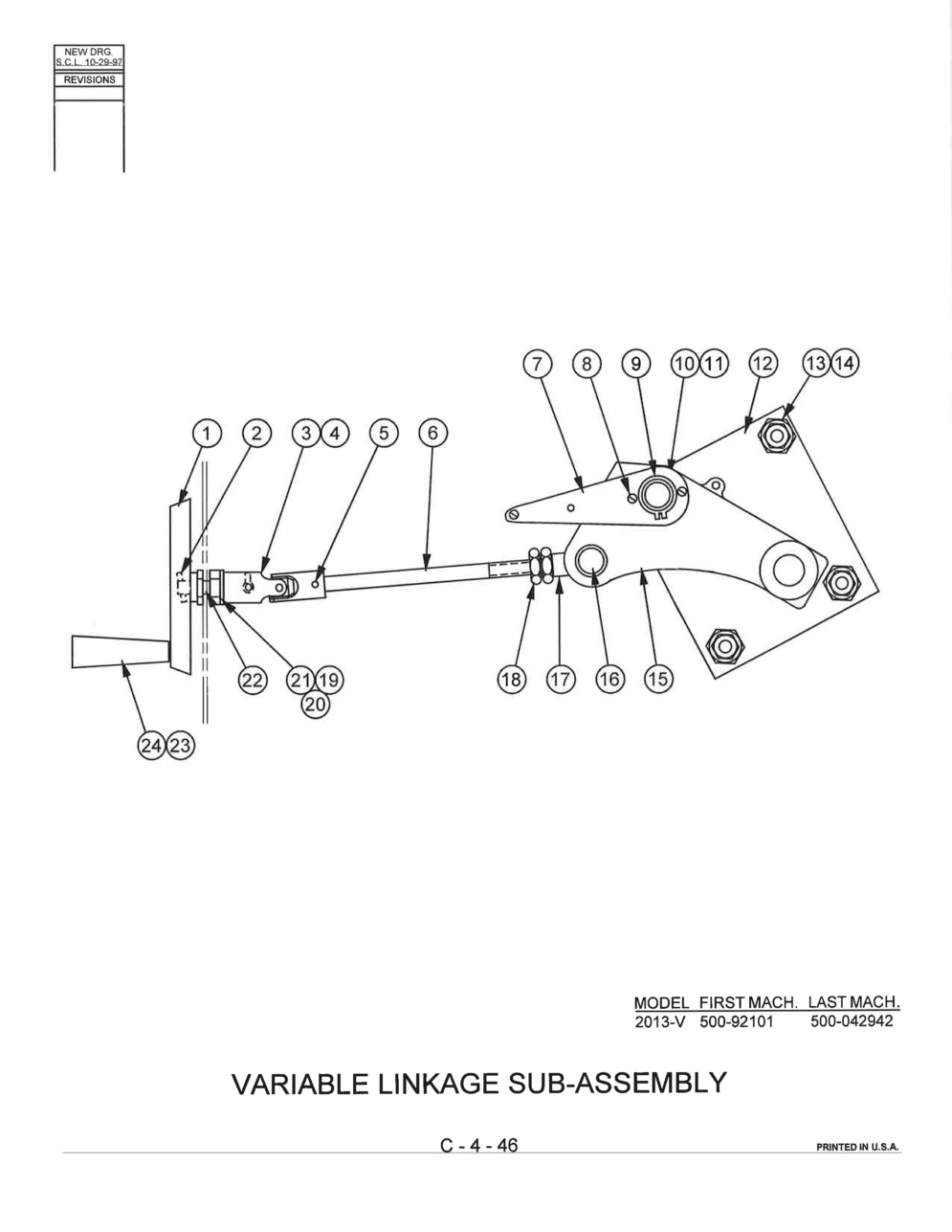

Exploded View Parts Ordering: 2013-V_500

2013-V 500 Online Parts Manual

Serial No: 500-92101 End Date 500-042942

Return to manuals

Page Code: C-4-46

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-142684 Description: Variable Linkage Sub-Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-425356 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-042599 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 3 Part Number: 091-422535 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-042599 Description: Spring Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 6 Part Number: 093-151801 Description: Variable Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-740126 Description: Indicator Arm Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-186999 Description: Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-992925 Description: Washer, Flat #8-S Brass Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-063287 Description: Swivel Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-986901 Description: Screw, Fill. Hd. Mach. #6-32NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-988543 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 135-075588 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 090-029158 Description: Spacer (.0625) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-262071 Description: Spring Washer (.099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 093-151827 Description: Base Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-059569 Description: Adjusting Screw Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-991422 Description: Nut, Hex. Jam 3/4-16NF Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 095-130175 Description: Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-061755 Description: Trunnion Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-079799 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 105-134100 Description: Screw Stop Nut 1/2-13NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-991422 Description: Nut, Hex. Jam 3/4-16NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-061101 Description: Belleville Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-245944 Description: Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-072801 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 24 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
