Exploded View Parts Ordering: 2013-V_499

2013-V 499 Online Parts Manual

Serial No: 499-92101 End Date 499-92304

Return to manuals

Page Code: C-9-22

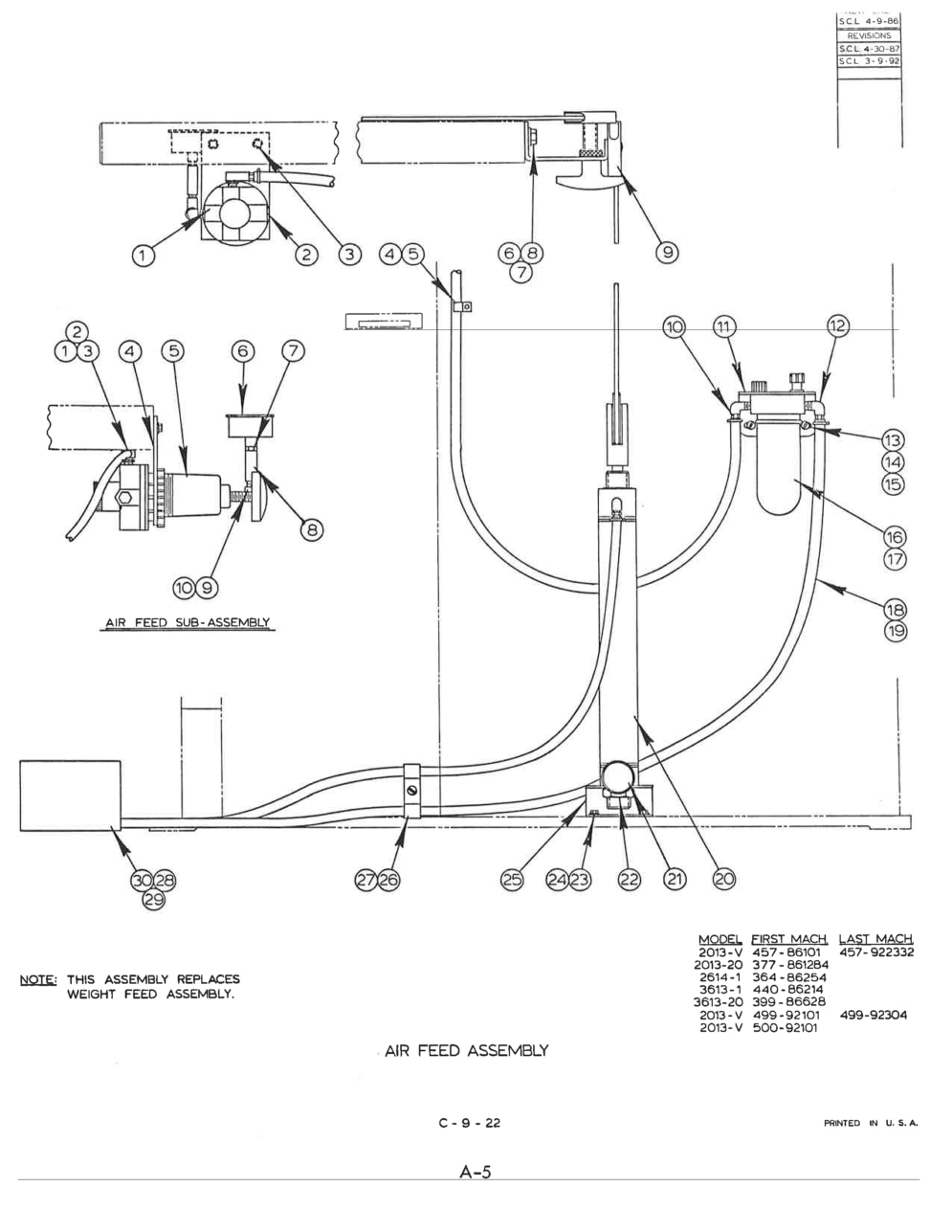

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 085-130870 Description: Air Feed Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 094-168135 Description: Air Feed Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-227488 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-980086 Description: Screw, Hex. hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-323758 Description: Conduit Strap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-994848 Description: Screw, Rd. Hd. Self-Tap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-980441 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 134-054147 Description: Spacer Washer Units Per Assembly: 3 Availability: In Stock Price: $5.47
Index No Ref.: 9 Part Number: 094-144292 Description: Carrier and Cable Assembly (Air Feed) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-458844 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 117-135210 Description: 90 Degree Street Elbow Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-988964 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 5/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-458836 Description: Oil-Fog Lubricator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-384453 Description: Oil (ASTM 315) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-970947 Description: Neoprene Hose 11/16 O.D. (Black) Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 19 Part Number: 135-068880 Description: Hose Clamp Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-727941 Description: Air Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-696310 Description: Air Filter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-991471 Description: Nut, Hex. Jam 1-14NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980060 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 25 Part Number: 093-154409 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-111527 Description: Tubing Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-994848 Description: Screw, Rd. Hd. Self-Tap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-727933 Description: Foot Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-727925 Description: Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-281790 Description: Barbed Insert Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-992602 Description: Washer, Flat 1/4 S.A.E. Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-168135 Description: Air Feed Sub-Assembly (See Detail) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-343517 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-275069 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $6.20
Index No Ref.: 3 Part Number: 091-281790 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 093-153658 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-256743 Description: Regulating Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 135-095305 Description: Gauge Units Per Assembly: 1 Availability: In Stock Price: $105.00
Index No Ref.: 7 Part Number: 091-343517 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-003069 Description: Pipe Coupling Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 117-135210 Description: 90 Degree Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-121187 Description: Pipe Nipple (4") Units Per Assembly: 1 Availability: Call For Info Price:
