Exploded View Parts Ordering: 2013-V_439

2013-V 439 Online Parts Manual

Serial No: 439-83101 End Date 439-86903

Return to manuals

Page Code: C-10-16

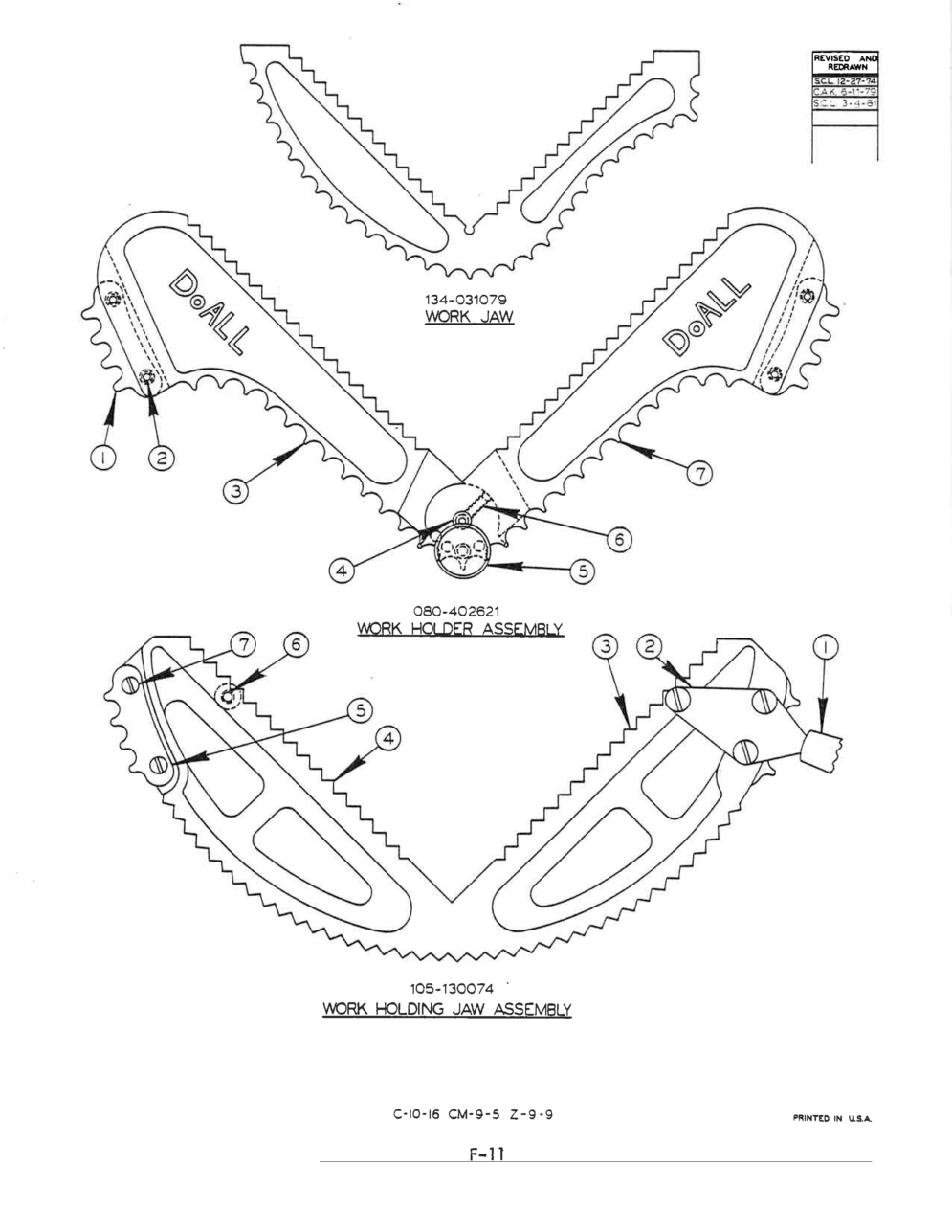

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 134-031079 Description: Work Jaw Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 080-402621 Description: Work Holder Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: *1 Part Number: 105-133136 Description: Sprocket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-986984 Description: Screw, Fil. D. Mach. #10-24NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-203860 Description: Left Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-982363 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 090-021627 Description: Knurled Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984104 Description: Screw, Soc. Hd. Set #10-24NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-203852 Description: Right Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 105-130074 Description: Work Holding Jaw Assembly Units Per Assembly: Availability: In Stock Price: $404.00
Index No Ref.: 1 Part Number: 105-135123 Description: Handle Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-133185 Description: Handle Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-406786 Description: Work Holding Jaw Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 105-131106 Description: Work Holding Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *5 Part Number: 105-133136 Description: Sprocket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-988923 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 5/16 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-990150 Description: Screw, Truss Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before 2/12/44 On Hydraulic Machines Use 0106-233372 SprocketWith 3/16" Pitch, Specify Pitch Of Chain When Ordering Units Per Assembly: Availability: Call For Info Price:
