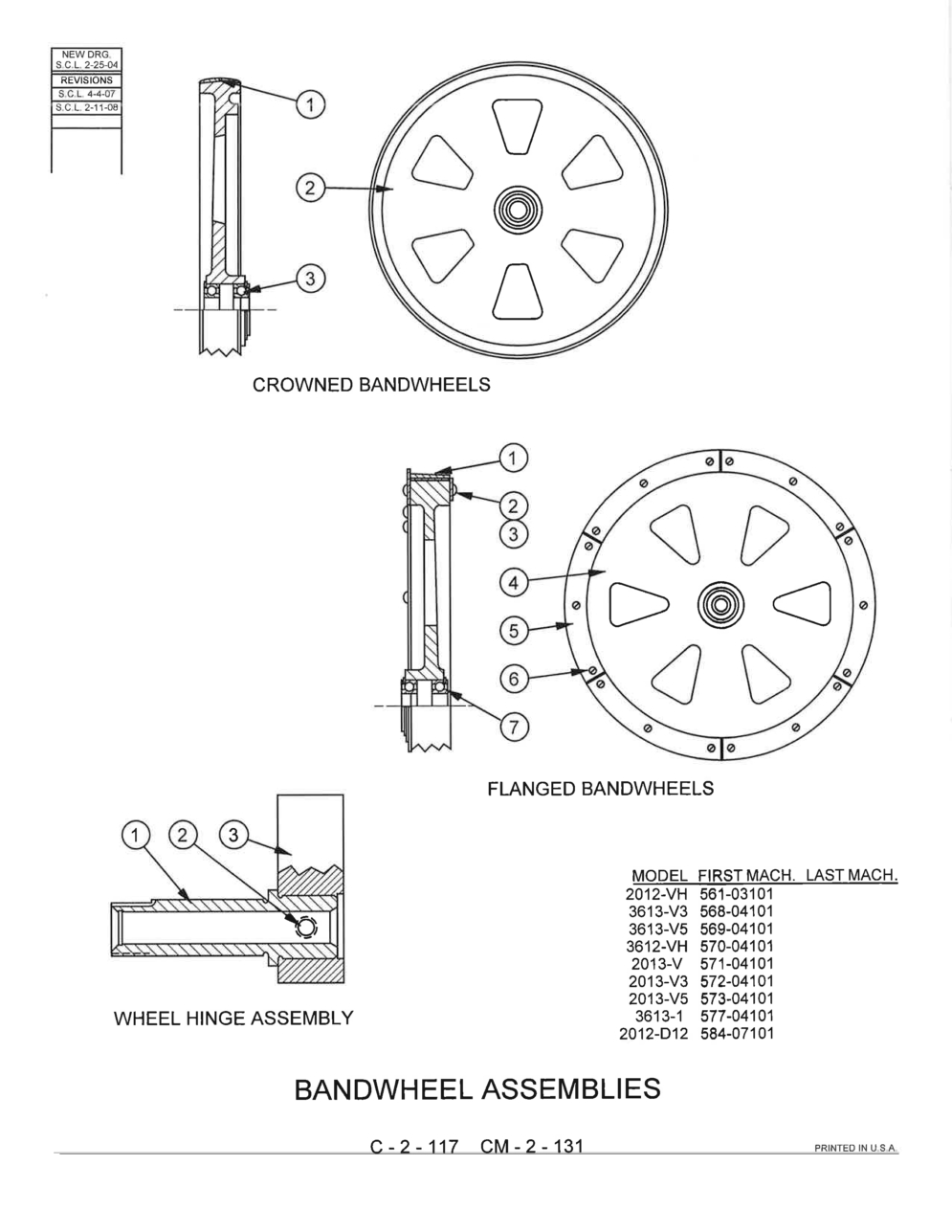

Exploded View Parts Ordering: 2013-V5_573
Page Code: C-2-117
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
|
Part Number:
|
Description:
CROWNED BANDWHEELS |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
Ref |
Part Number:
402598
|
Description:
Bandwheel Assembly (Upper and Idler) |
Units Per Assembly:
|
Availability:
In Stock
|
Price:
$1,303.01 |
Index No Ref.:
Ref. |
Part Number:
039712 |
Description:
Bandwheel Assembly (Lower) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
125357
|
Description:
Tire |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$102.00 |
Index No Ref.:
2 |
Part Number:
402597 |
Description:
Bandwheel (Upper and Idler) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
402599
|
Description:
Bandwheel (Lower) |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1,016.40 |
Index No Ref.:
3 |
Part Number:
5-001508
|
Description:
Ball Bearing (Upper and Idler Bandwheels Only) |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$24.52 |
Index No Ref.:
|
Part Number:
|
Description:
FLANGED BANDWHEELS |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
Ref. |
Part Number:
406558
|
Description:
Bandwheel Assembly (Upper and Idler) |
Units Per Assembly:
|
Availability:
In Stock
|
Price:
$2,290.99 |
Index No Ref.:
Ref. |
Part Number:
408945
|
Description:
Bandwheel Assembly (Lower) |
Units Per Assembly:
|
Availability:
In Stock
|
Price:
$2,000.32 |
Index No Ref.:
1 |
Part Number:
305030
|
Description:
Tire And Rim Assembly |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$529.75 |
Index No Ref.:
2 |
Part Number:
004675
|
Description:
Retainer |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$17.45 |
Index No Ref.:
3 |
Part Number:
198000 |
Description:
Screw, Hex. Hd. Cap #10-24NC x 3/8 |
Units Per Assembly:
8 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
406458 |
Description:
Bandwheel (Upper and Idler) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
408875 |
Description:
Bandwheel (Lower) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
304732
|
Description:
Flange Segment |
Units Per Assembly:
6 |
Availability:
In Stock
|
Price:
$19.56 |
Index No Ref.:
6 |
Part Number:
198000 |
Description:
Screw, Hex. Hd. Cap #10-24NC x 3/8 |
Units Per Assembly:
18 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
5-001508
|
Description:
Ball Bearing (Upper and Idler Bandwheels Only) |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$24.52 |
Index No Ref.:
Ref. |
Part Number:
302346
|
Description:
Wheel Hinge Assembly |
Units Per Assembly:
|
Availability:
In Stock
|
Price:
$178.21 |
Index No Ref.:
1 |
Part Number:
5-001424
|
Description:
Axis Stud |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$80.41 |
Index No Ref.:
2 |
Part Number:
198423
|
Description:
Screw, Soc. Set 1/4-20NC x 5/16 |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
3 |
Part Number:
120624
|
Description:
Block |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$127.96 |
