Exploded View Parts Ordering: 2013-V5_526

2013-V5 526 Online Parts Manual

Serial No: 526-95101 End Date 526-01465

Return to manuals

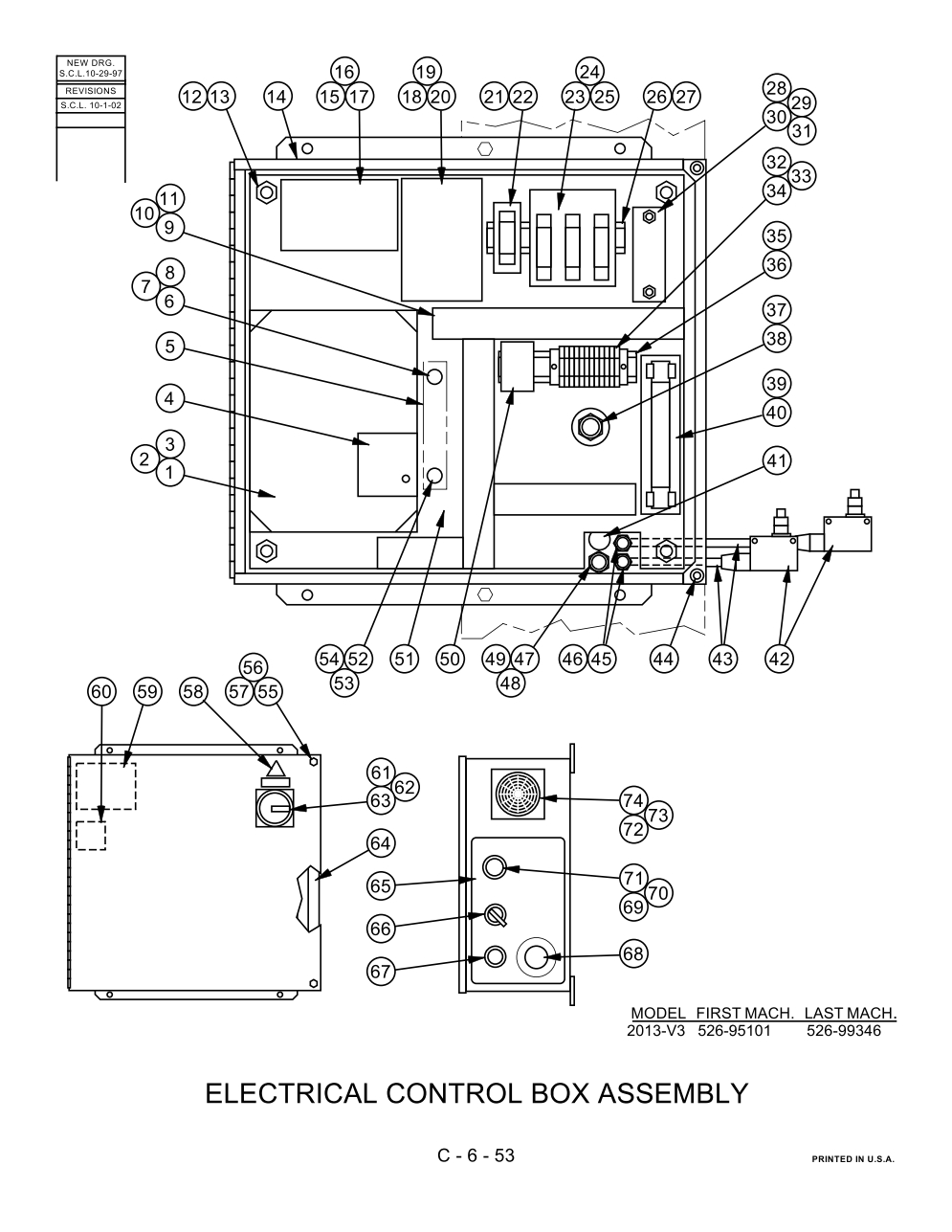

Page Code: C-6-53

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Electrical Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1** Part Number: 092-073972 Description: Variable Speed Controller (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-080068 Description: Variable Speed Controller (380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-988659 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 092-073980 Description: Variable Speed Controller Display Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 092-087196 Description: Resistor Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 092-077866 Description: Resistor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-000166 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $9.77
Index No Ref.: 8 Part Number: 092-087287 Description: Mounting Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-972083 Description: 1" Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-972109 Description: 1" Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-077776 Description: Plastic Push Rivet Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993329 Description: Washer, Lock 3/8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 095-175345 Description: Enclosure Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 092-061498 Description: Reactor (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-061464 Description: Reactor (380V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-061472 Description: Reactor (415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-061423 Description: Reactor (460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-993212 Description: Washer, Lock 1/4 Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 18 Part Number: 093-190882 Description: Transformer (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-190874 Description: Transformer (220V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-200806 Description: Transformer (380V, 400V, 415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-991125 Description: Nut, Hex. #10-24NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 092-053685 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 092-049543 Description: Fuse (1.5 Amp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 092-054089 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24** Part Number: 092-071067 Description: Fuse (30 Amp) (208V, 220V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-071760 Description: Fuse (20 Amp) (380V, 400V, 415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-050368 Description: Fuse (15 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 092-117621 Description: Fuse Cover (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 093-200632 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-391946 Description: Ground Terminal Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-047704 Description: Ground Tag Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-988758 Description: Screw, Rd. Hd. Mach. #10-24NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 092-006170 Description: Terminal Block End Section Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 092-006188 Description: Terminal Block End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-147729 Description: Insulated Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-351064 Description: Hole Closing (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 092-075811 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 092-077858 Description: Fuse (1 Amp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-351064 Description: Hole Closing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 092-111103 Description: Limit Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-983321 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 44 Part Number: 092-032499 Description: Nut Rivet #10-32NF Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 092-016880 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 2 Availability: In Stock Price: $5.96
Index No Ref.: 46 Part Number: 092-076929 Description: Locknut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 092-016872 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 092-076942 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-972182 Description: Electrical Cord (#14-4 Conductor) A.R. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 092-072008 Description: Control Relay Units Per Assembly: 1 Availability: In Stock Price: $80.41
Index No Ref.: 51 Part Number: 095-174686 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 092-077866 Description: Resistor (380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 091-000166 Description: Spacer (380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: In Stock Price: $9.77
Index No Ref.: 54 Part Number: 092-087287 Description: Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 092-048651 Description: Screw, Hex. Hd. Captive #10-32NF x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 092-041524 Description: Washer, Nylon #10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 091-992594 Description: Washer, Flat #10 S.A.E. Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 091-765289 Description: Label (Electrical Hazard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 092-087956 Description: Fuse/Overload Schedule Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 092-066943 Description: Label (Electrical Info) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 092-114370 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 092-025592 Description: Disconnect Switch Key Spacer (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 092-025584 Description: Disconnect Switch Spacer (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 092-039254 Description: Gasket Strip Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 65* Part Number: 093-211597 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 092-111111 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-351064 Description: Hole Closing (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 092-114917 Description: Pushbutton Assembly (Start) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 092-111095 Description: Emergency Stop Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 092-037324 Description: Potentiometer Operator Kit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 091-782755 Description: Potentiometer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 092-081447 Description: Locating Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 092-087980 Description: Fan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 092-087998 Description: Fan Cover Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 092-088004 Description: Fan Lead Wire Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-974204 Description: Wire, #10 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-973255 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971978 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 091-973438 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971713 Description: Wire Marker Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 092-025568 Description: 90 Cord Grip Connector (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-331959 Description: Grommet (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-038471 Description: Wire Terminal (#12 Stud) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-037233 Description: Ground ID Shrink Tube (Europa Only) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 092-087162 Description: Terminal Block Marker Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072065 Description: Control Relay (Shift Lock Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072255 Description: Auxilliary Contact (Shift Lock Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Item 65 was #094-178340 (Band Speed Escutcheon) and #092-080548 (Pushbutton ID Escutcheon) Before Serial #526-97198. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: For "V5" Model Designation Before Serial #526-99329: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 092-080027 Description: Variable Speed Controller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 092-053354 Description: Fuse (25 Amp) (208V, 230V, 460V) Units Per Assembly: 3 Availability: Call For Info Price:
